Exhaust Cutout Valve 76mm - Vacuum controlled - Complete System
Exhaust Bypass Valve for 76mm / 3" Exhaust Systems
For controlling the Sound of Exhaust Systems / Mufflers with 76mm / 3 inch Diameter
Note: The design of the actuator has been improved. The can is now slightly larger in circumference (55mm) and longer (52mm). When the our old stock is sold, you will receive the new design.

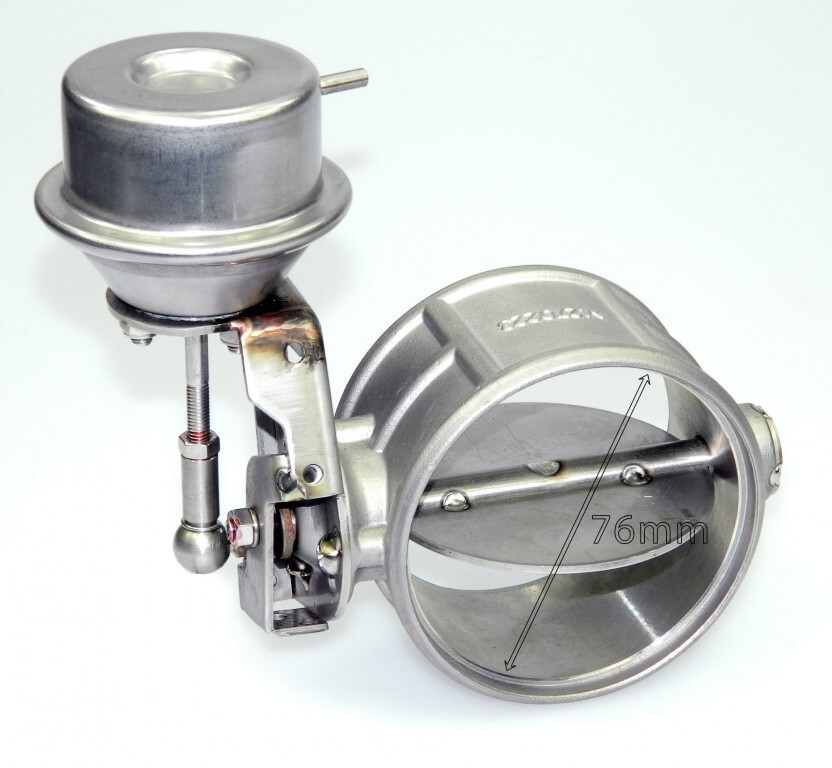

Connection diameter: 76mm / 3"
Note: The valve is open without control

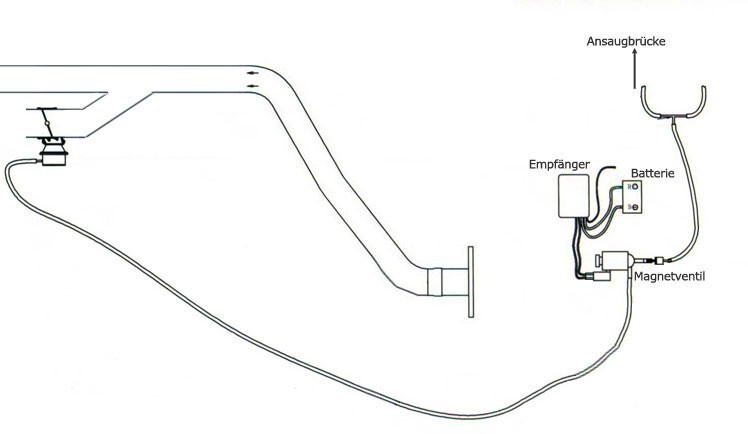

The hoses and connectors are used to connect the system with the intake manifold.
The prevailing negative pressure is used to control the flap.
The valve is open without vacuum control and is closing when the solenoid valve is operated by means of the remote control.

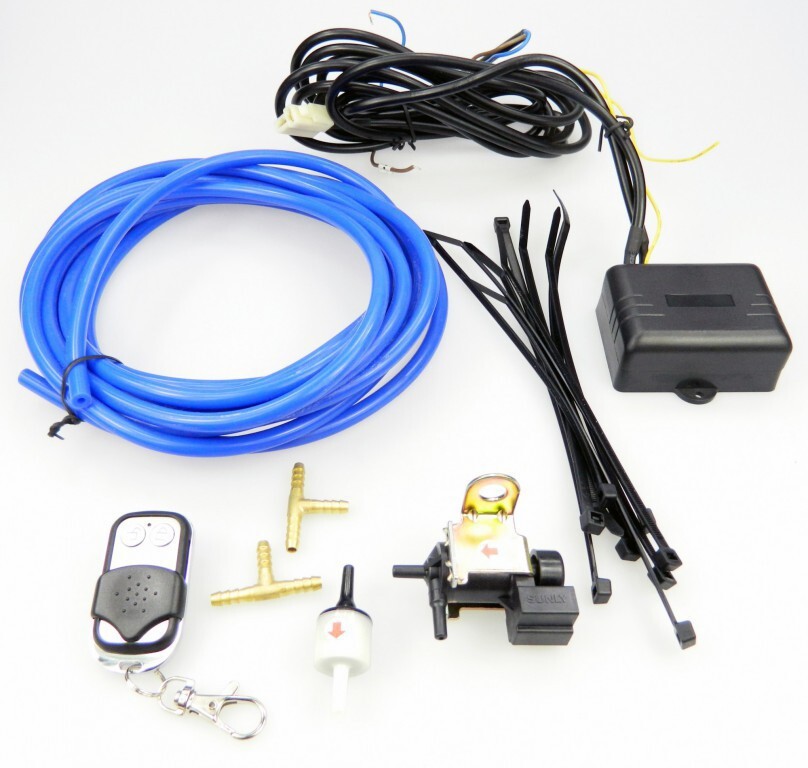

What's in the box:
- 2x Remote control
- Control unit
- Solenoid valve
- Silicone hoses
- Connecting Parts / Tee Pieces
- Check Valve
- Cable Ties
- Exhaust valve - vacuum controlled

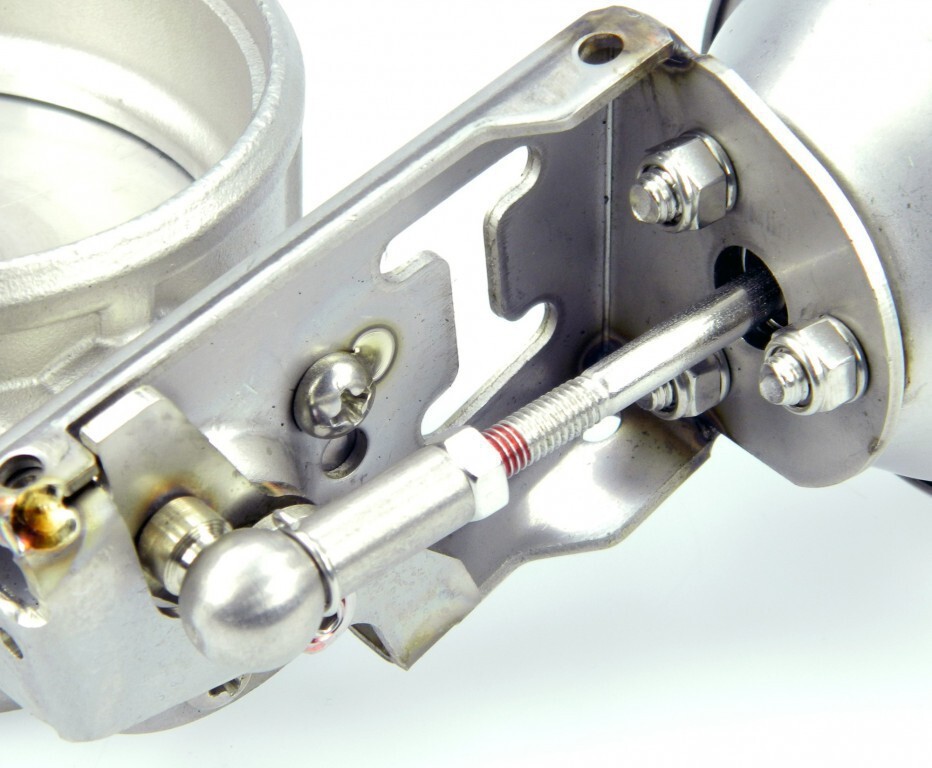

Our exhaust cutout valves are solid and absolutely accurate working. Attention was paid to stable and precise components. Not like some cheap-flaps, which are offered everywhere. So the bearing of the cutout valve mechanism is made of ceramic and not - as with other flaps - made of plastic, which does not withstand the heat. The housing has a bead, which determines the specified diameter. This results in the use of exhaust pipes with 1.5mm wall thickness, an edgeless inner diameter transition, which of course makes the welding much easier. The rod thread of the actuator is adjustable for individual requirements.
Not road legal in Germany, only possible with §21 technical inspection and report by TÜV / DEKRA
- Item weight: 2,00 kg
