4-Cyl. Collector for EFR V-Band turbochargers

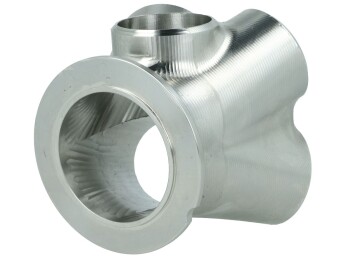

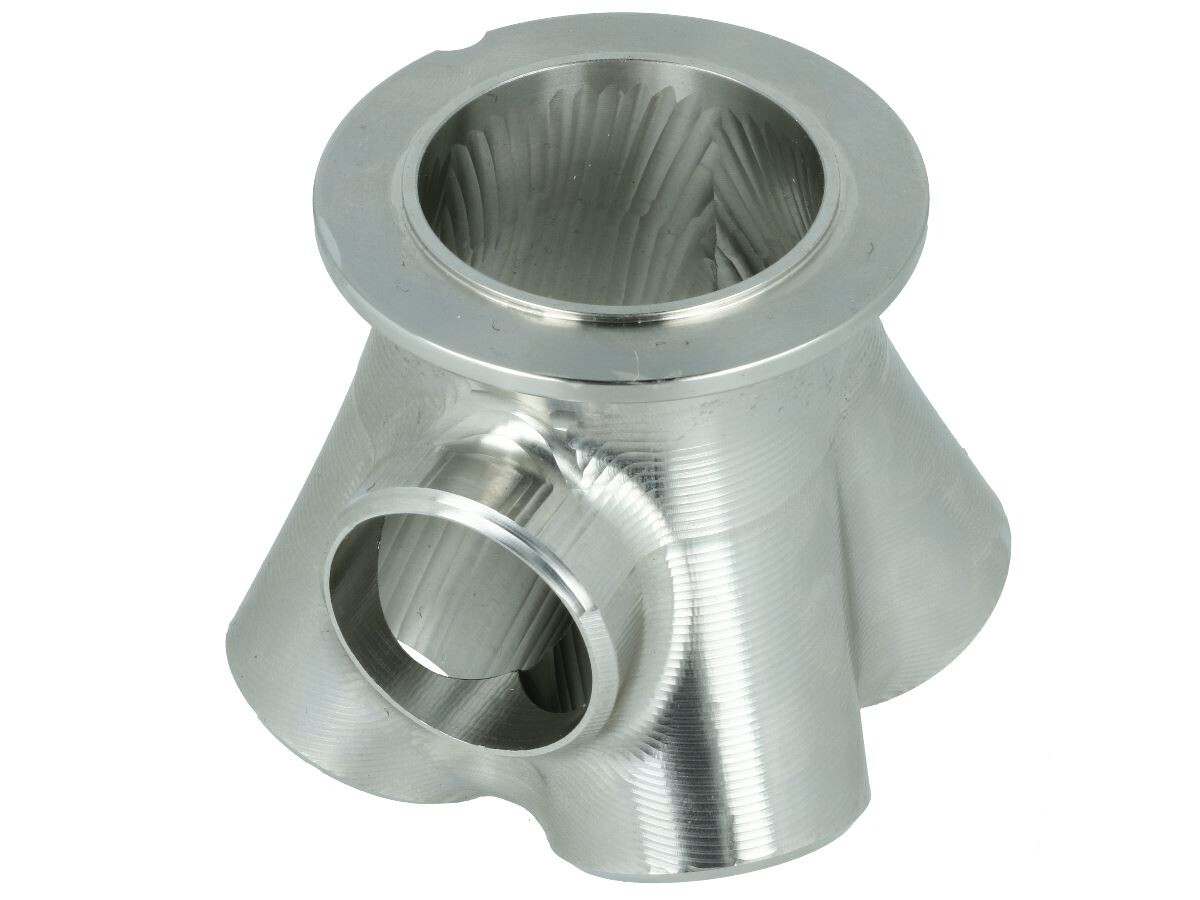

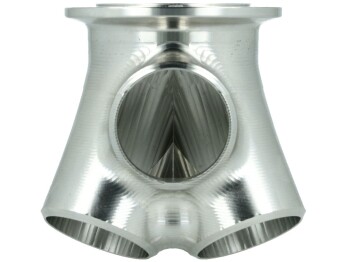

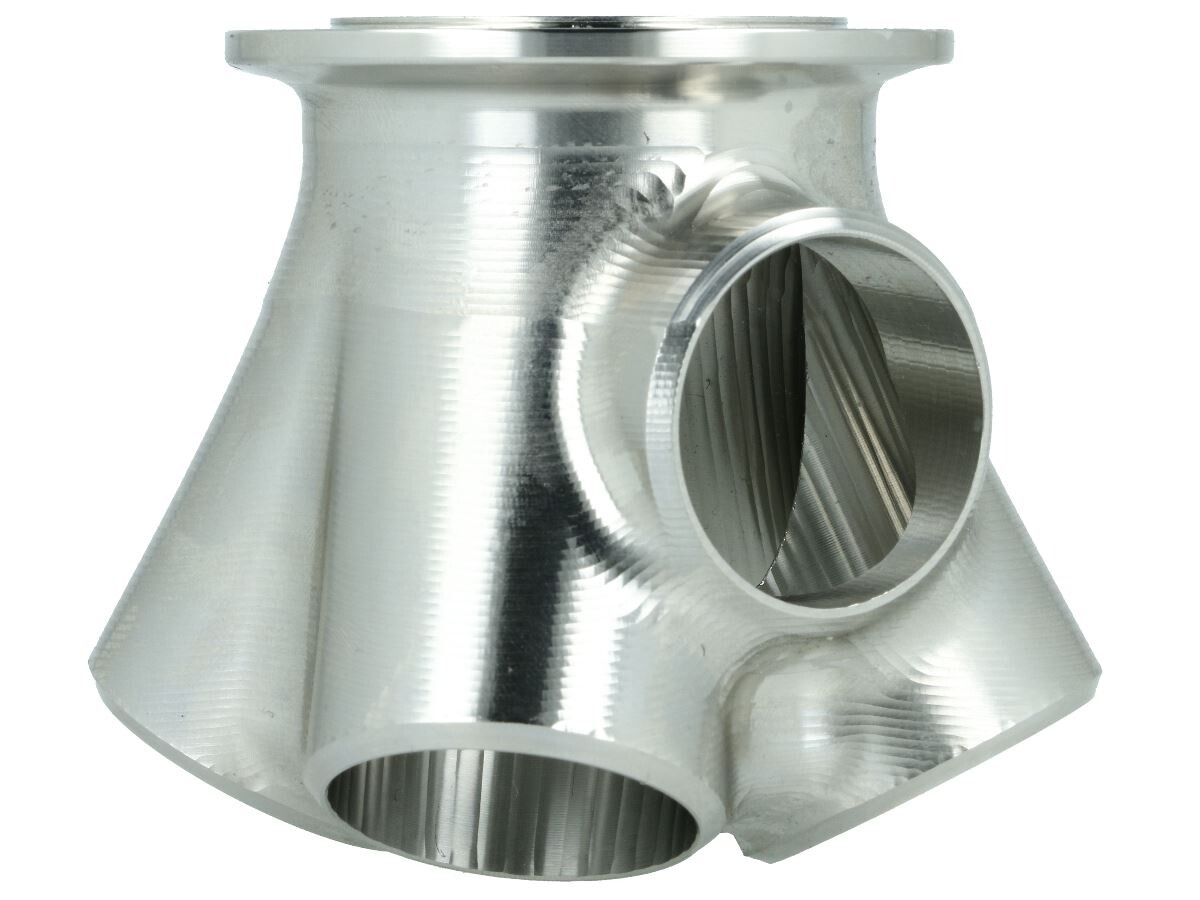

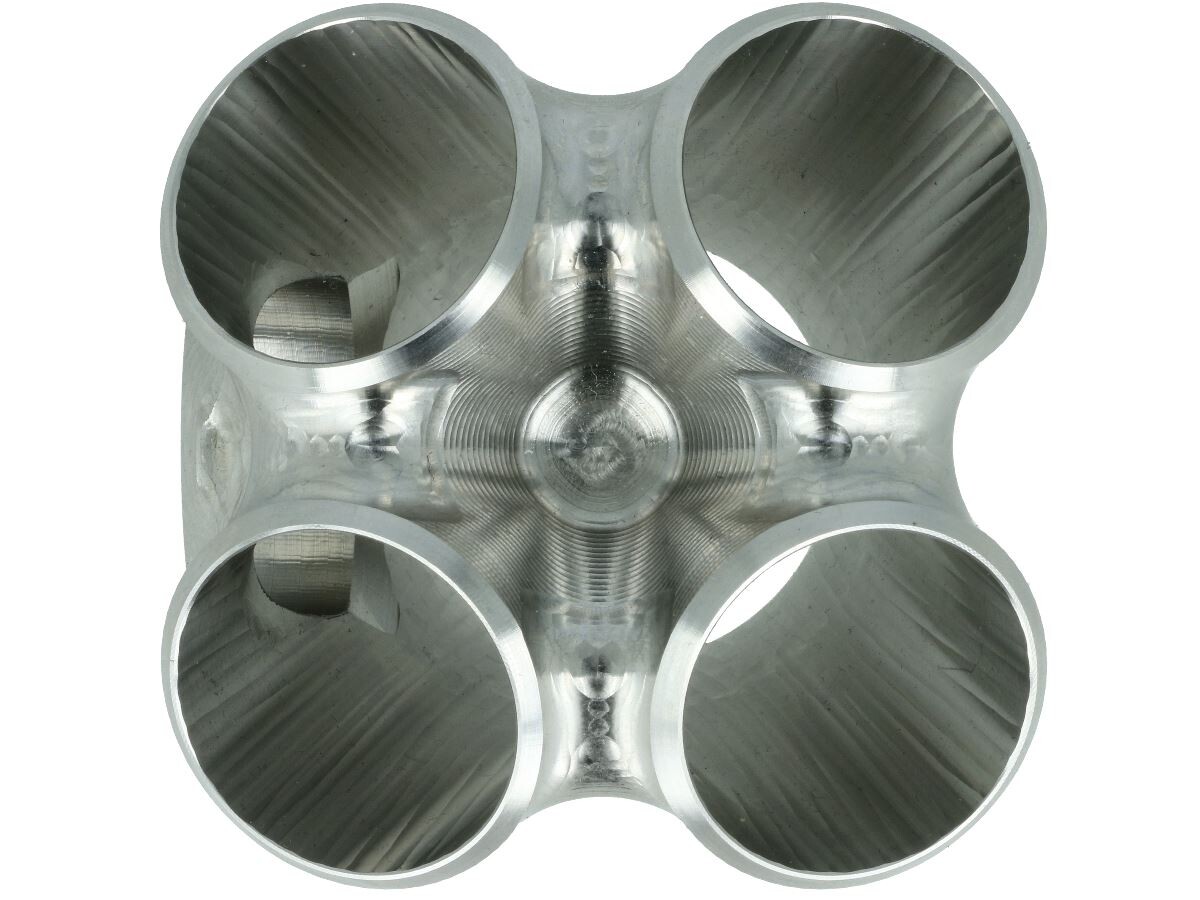

CNC machined turbo manifold collector with 38mm Wastegate port
Turbo collector fully milled from stainless steel for BorgWarner EFR turbo's with V-Band inlet
Note: With our TurboZentrum V-Band turbine housings also suitable for the larger B2 frame EFR turbochargers, e.g. EFR7064, EFR7670, EFR8374, EFR8474, EFR9174, EFR9274, EFR9180 and EFR9280.
Now available at TurboZentrum! Full CNC machined stainless steel turbo manifold collectors. Perfect for turbo manifolds to achieve maximum performance! A milled turbo collector offers unbeatable advantages:
- For manifold manufacturer: The manifold collector is always exactly the same, providing a 100% accurate repeatability in one gauge manufacturing. This was not always possible with welded collectors due to tolerances and distortion during welding.
- For maximum performance: Because the turbo collector is machined from one block of CNC, there are no swirling edges, chamfers or steps that can negatively impact flow behavior.
- For long durability: These stainless steel manifold turbo collectors can not tear because of their one-piece manufacturing. Thus, a long durability is guaranteed even under heavy weight turbochargers, downpipes and exhaust systems.
Suitable for:
4-cylinder manifolds and turbocharger with non divided (single-scroll) V-Band flange turbine housing and external 38mm wastegate, for example BorgWarner EFR turbochargers:
EFR-6258-AL Turbo - V-Band w/o WG 0.85ar (EFR-AL6258-VB)
EFR-6758-AL Turbo - V-Band w/o WG 0.85ar (EFR-AL6758-VB)
EFR 7163 - V-Band w/o WG 0.85ar (11639880007)
Technical data:
Diameter WG- port pipe: approx. 36,8mm inside, 42,4mm outside
Inside diameter collector pipes: approx. 36,8mm
Outer diameter collector pipes: approx. 42,4mm
Length Collector: approx. 98mm (largest passage)
Outer diameter collector: approx. 116mm (widest section)
- Usage: Manifold to turbocharger
- Component: connectors
- Flange type: V-Band
- Availability: order on customer request
- Material: Stainless Steel
- Diameter: 42mm
