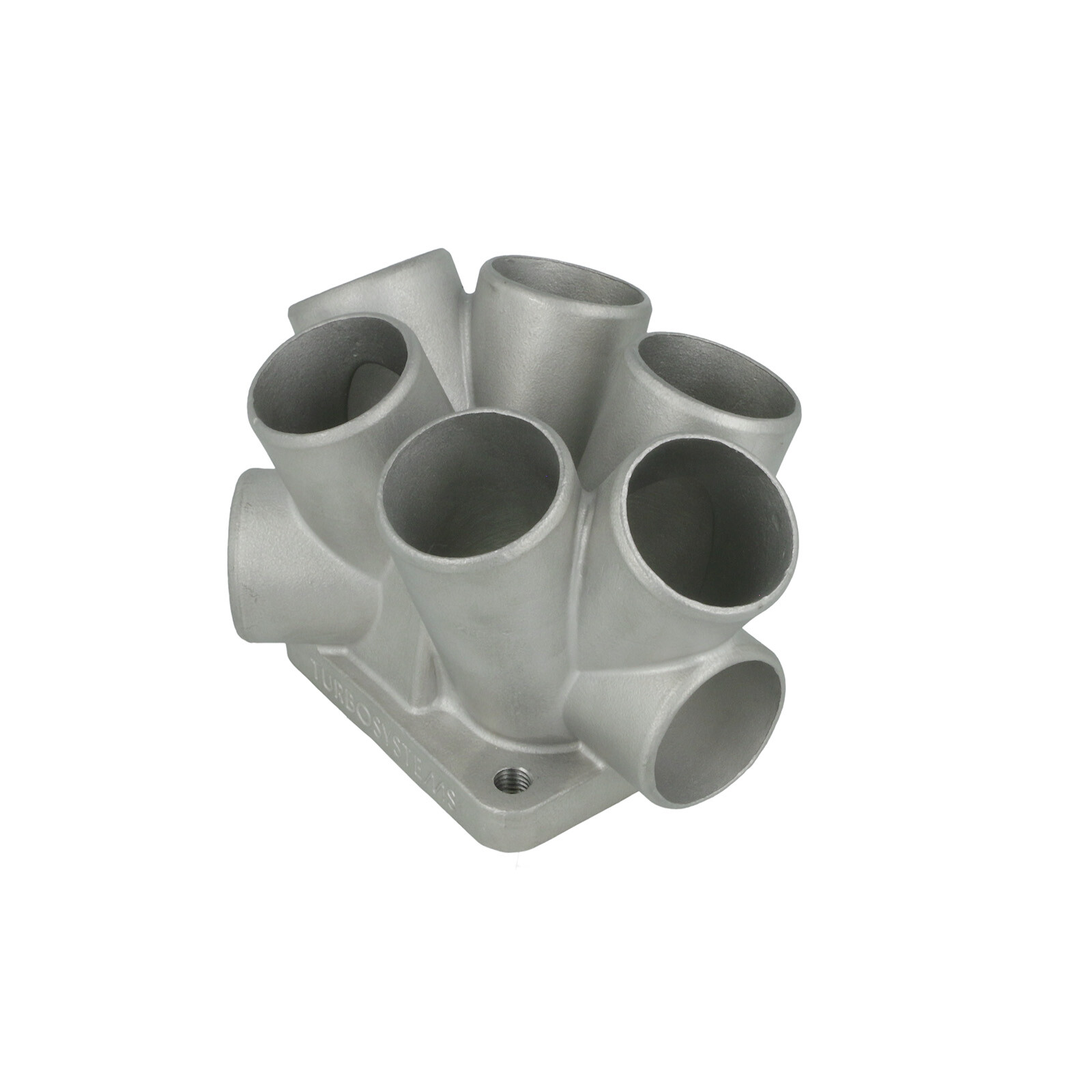

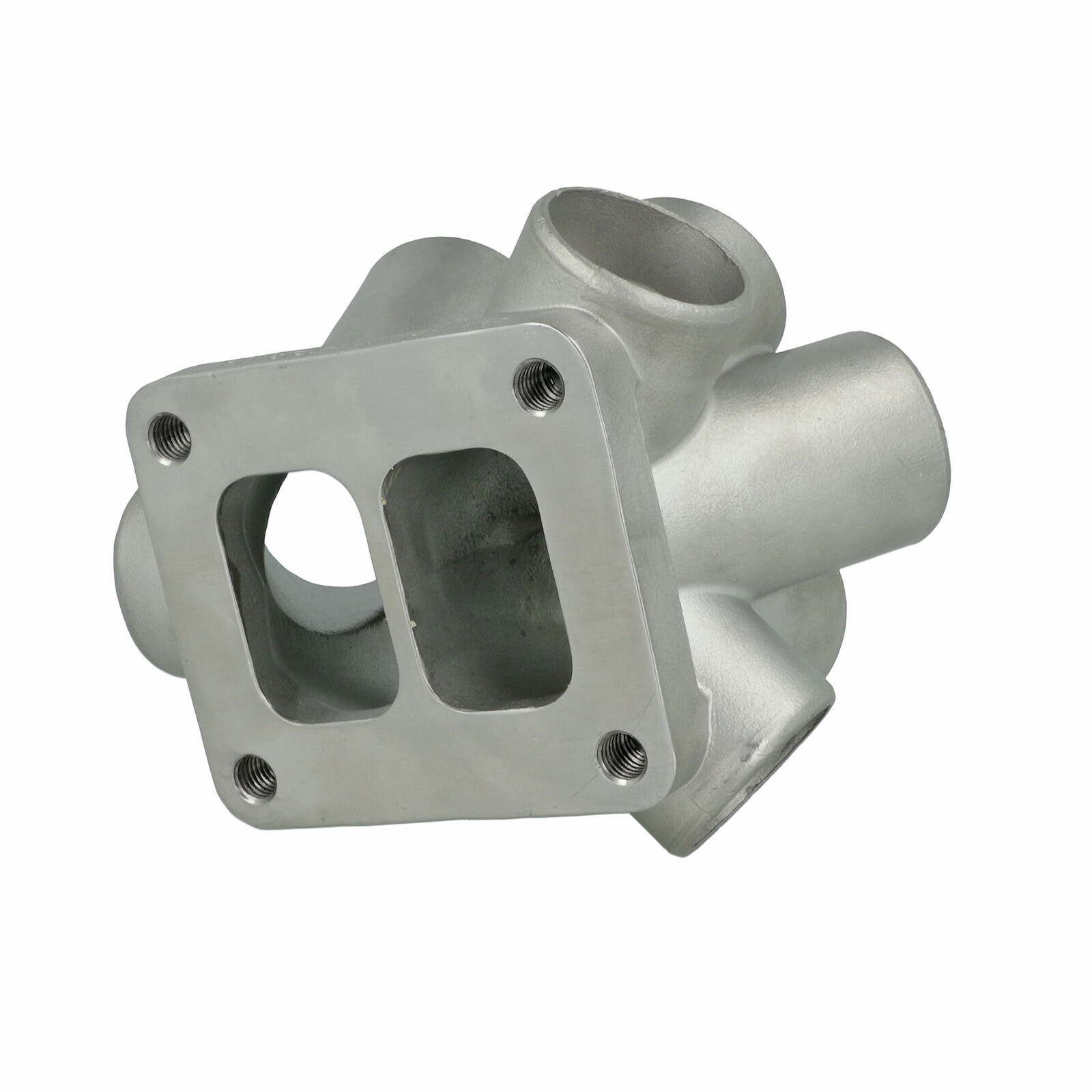

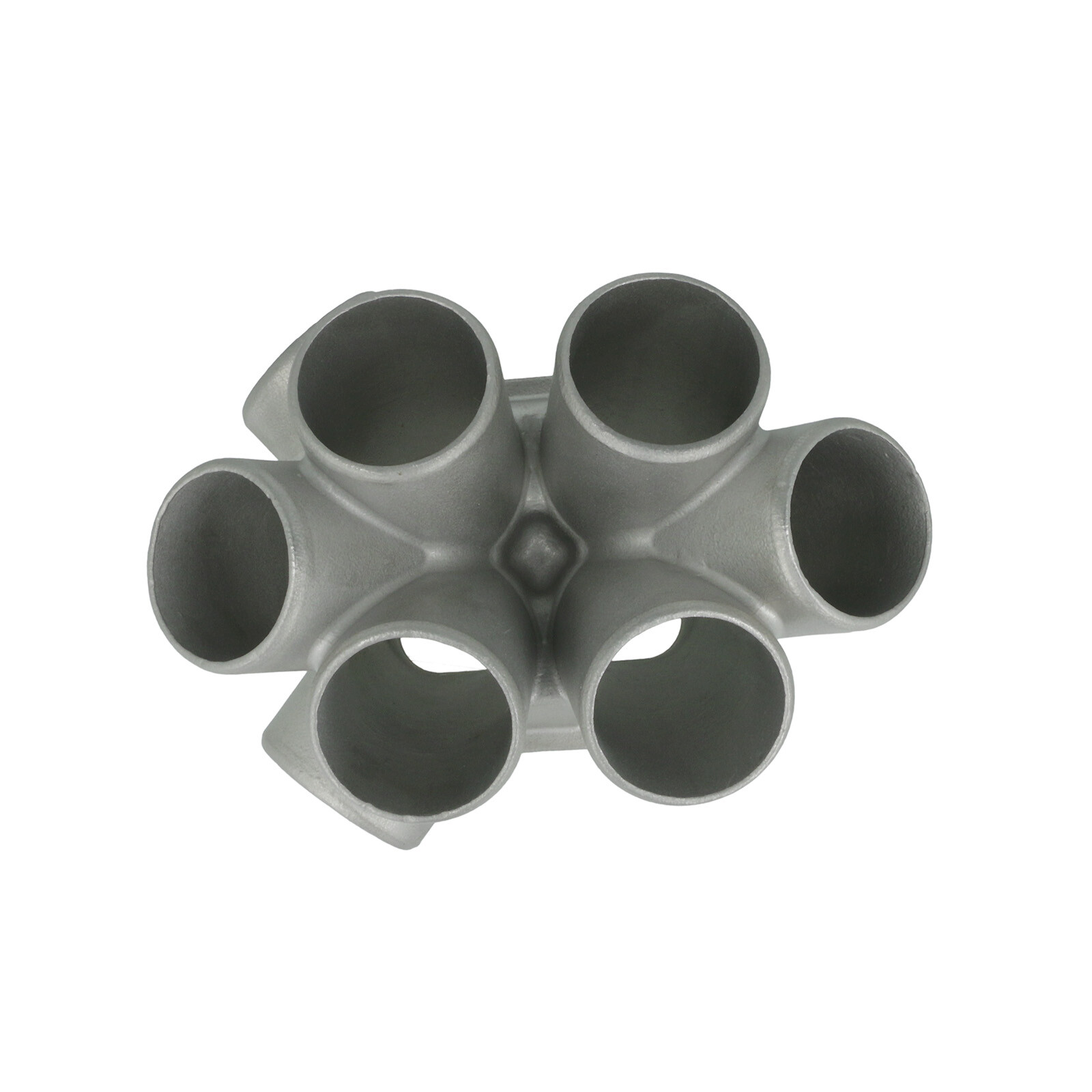

6-Cylinder collector T4 Twinscroll with 3x Wastegate outlet
Stainless steel precision casting manifold collector
Turbo collector cast from heat-resistant stainless steel
Note: There are up to 3 wastegate connection options! These are not pre-drilled! See pictures. This means you can use this collector for T4 Twinscroll with internal wastegate (actuator) or for external wastegates.
Now available at TurboZentrum! Stainless steel heat resistent precision cast 6-cylinder turbo collector with T4 Twinscroll flange and up to three wastegate connections. Perfect for turbo manifolds to achieve maximum performance!
This turbo collector offers unbeatable advantages:
- For manifold builders: The manifold collector is always exactly the same, ensuring 100% accurate repeatability in production with a template. This was not always possible with welded collectors due to tolerances and distortion during welding.
- For maximum performance: Since the turbo collector is made from stainless steel precision casting, there are no swirling edges, chamfers, or steps that can negatively affect the flow behavior.
- For long durability: These stainless steel collectors cannot crack due to their one-piece construction. Thus, long durability is ensured even under stresses from heavy turbochargers, downpipes, and exhaust systems.
6-cylinder engines and turbochargers with dual-entry (twinscroll) T4 flange turbine housings such as:
BorgWarner EFR T4 with internal wastegate or external wastegate
Airwerks S200SX / SX-E / SX-R, S300SX / SX-E / SX-R, S400SX / SX-E
Garrett GT / GTX / GTX GEN2
Precision Turbo GEN 1, GEN 2, NEXT GEN
Inner Diameter Inlet: n/a
Length of Merge: n/a
Inner Diameter of Collector Pipe Connections: 39mm
Outer Diameter of Collector Pipe Connections: 45mm
Collector Length: n/a
Outer Diameter of Collector: n/a
- Usage: Manifold to turbocharger
- Component: connectors
- Flange type: T4 divided / TwinScrollT4 Twinscroll
- Availability: order on customer request
- Material: Stainless Steel
- Diameter: 45mm
- Model: external Wastegateinternal Wastegate
