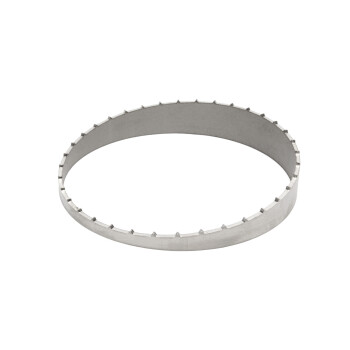

BOOST products Stainless Steel Pie Cut with Spigot Female Segment 89mm x 1.5
90° pie cut interlocking end segment type – norm 2 - radius R76 - 15° segment - 1.4301 stainless steel
Stainless steel pipe segment for custom-built exhaust systems, downpipes, charge pipes, and coolant lines
The latest technology in Pie Cut fabrication! Forget tedious marking, angle measuring, and manual cutting – these precision Pie Cuts make it effortless!
Precisely engineered start and end segments for pie-cut bends: one side is smooth for connection to a straight pipe, while the other side features female spigots for a perfect, interlocking alignment to the next segment. Ideal for clean, repeatable weld joints in exhaust, intercooler, and intake systems.
The interlock/spigot design ensures quick alignment without jigs, minimizes gaps, and improves weld appearance – perfect for TIG welders, prototype builders, and professional fabricators.
Features:
- One smooth side and one female spigot side – ideal for finishing or starting a pie-cut bend with spigots
- Interlocking fit: reduced gaps and less post-processing
- Weld-ready: deburred, clean-cut, and oil-free
- Compatible with our other spigot/ interlock Pie Cuts of the same size
- Suitable for TIG/MIG welding; TIG recommended for the highest quality
- Quick, precise positioning thanks to the spigot alignment system
- Stable tack-welding – reduced distortion during final welding
- Clean internal contour for optimal flow
- Professional weld finish without step formation
- Start Piece: Smooth side connects to pipe or straight section, interlock/male (spigot) side to the first segment group
- End Piece: Female (spigot recess) side connects to the last segment, smooth side to outlet or end pipe
- Suitable for exhaust systems, charge pipes, intake and cooling systems
- Degrease and deburr mating surfaces, check fitment before welding
- Tack-weld all around, then perform full circumferential welding
- For best appearance and internal quality: use moderate heat control and proper back purging
- Material: 1.4301 Stainless Steel – corrosion- and heat-resistant
- Size: 89 mm
- Wall Thickness: 1.5 mm
- Angle: 15°
- Radius: Norm 2 – Radius 76
- Manufacturing tolerances matched to our tabbed segment series *We can also supply Spigot Pie Cuts with 9° or 12° cuts on request (minimum order quantity: 50 pieces per size).
- 1× Pie Cut with Spigot Female (End) Piece 89m x 1.5 – Norm 2 – Radius R76 – 15° Segment – 1.4301 Stainless Steel
