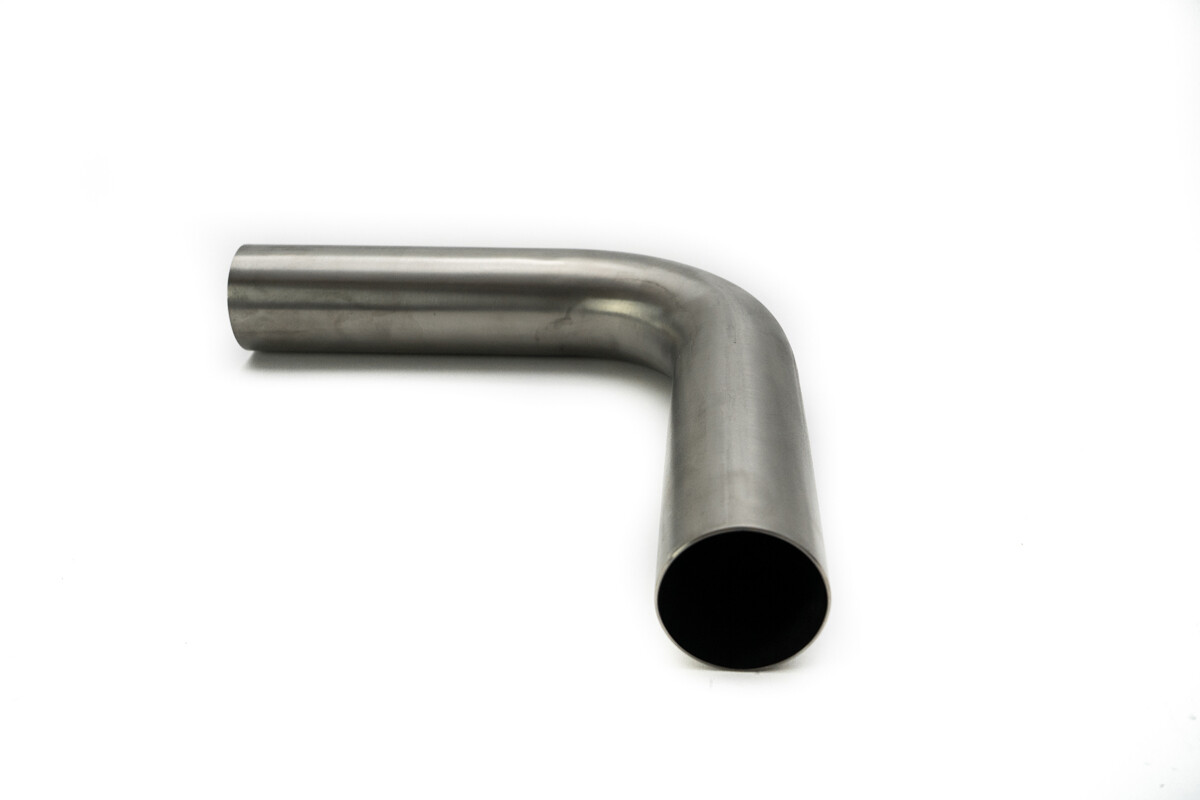

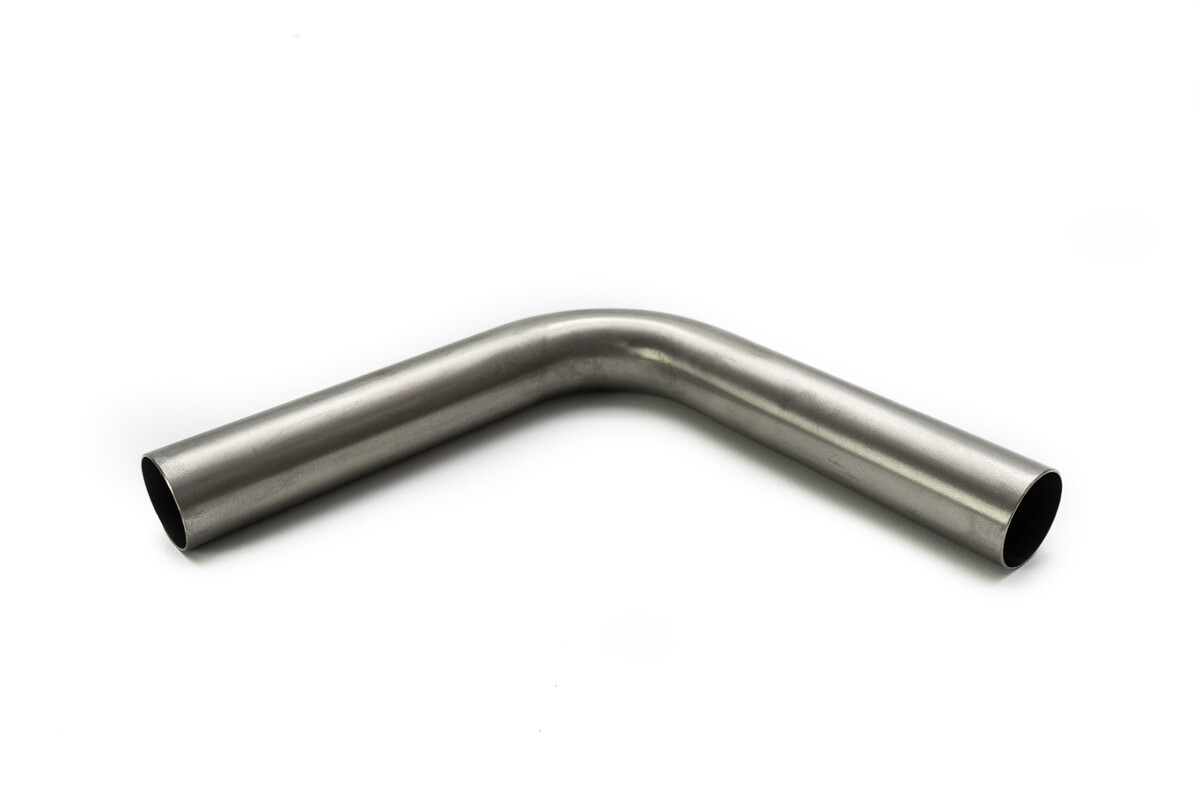

90° Titanium Mandrel Bend 63,5 mm (2.5")
Grade 3 Titanium mandrel bend for manifolds, exhaust systems and boost pipes
Super light titanium elbows ideal for exhaust systems, downpipes, intercooler systems and similar
As usual in the stainless steel range, there are of course also mandrel bends in titanium in various degrees. Because of the bending process, the material is always drawn slightly thinner on the outer sides, our mandrel bends are
by nature already in a stronger wall thickness. This means that even after the bending process there is still enough material available to be reliable even with exhaust systems. We offer these bends from 38 to 102 mm diameter. As 15°, 30°, 45° and 90° angles.
You're watching the weight? Stainless steel is too heavy for you? With our extremely extensive range of titanium parts, you can manufacture exhaust systems, boost pipes or similar from the highest quality raw material for these applications. We work together with the manufacturer Titanium Dynamics from the USA, which only offers grade 3 or 4 titanium. So it is possible to use this titanium in the exhaust area. Do not be fooled by inferior offers here! Unfortunately there is, meanwhile also in Germany, a large offer of titanium parts which are also offered for the field of exhaust systems, but only made of Grade 1, and thus become soft, deform or crack already at 500°C.
Material: Titanium Grade 3
Outside diameter: 63,5 mm (2.5")
Wall thickness: 1,22 mm (0.47")
Bending radius: 102 mm (4")
Angle: 90°
- Elbow: 90 degree
- Diameter: 63/63.5 mm
- Material: Titan Grade 3
- Item weight: 1,00 kg
