Nuke Performance Fuel Rail for BMW 4cyl M42 Engine
High-Flow lightweight fuel rail with AN-8 ORB threads
Features oversized internals, lightweight design, and comes equipped with unique injector safety clips

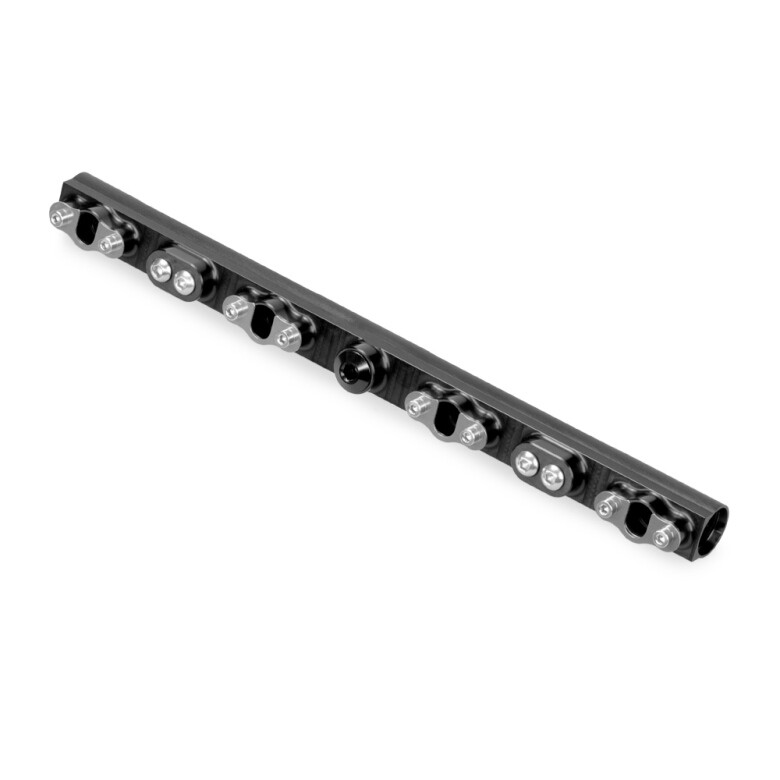

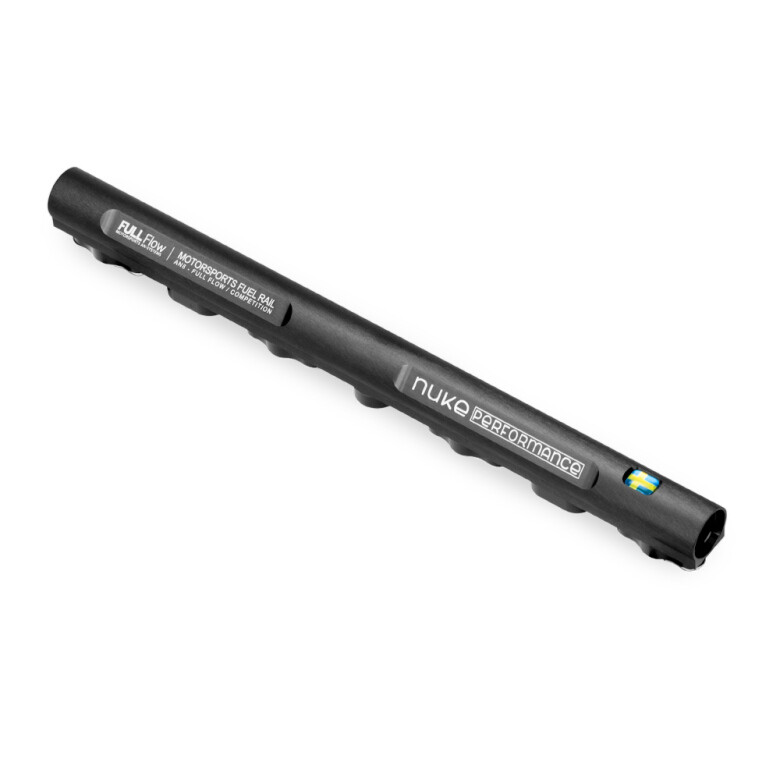

The Nuke Performance fuel rail for the BMW 4-cylinder M42 engine features oversized internals, lightweight design, and comes equipped with our unique injector safety clips.
- Fits BMW 4cyl M42 engines
- Compatible with Bosch EV14 style injectors
- AN-8 ORB threads at both ends for maximum flow
- AN-6 ORB side port for additional functionality
- Delivered without brackets – M6 threaded holes provided for custom mounts
- Safe for all fuels, including ethanol and methanol (E85, E100)

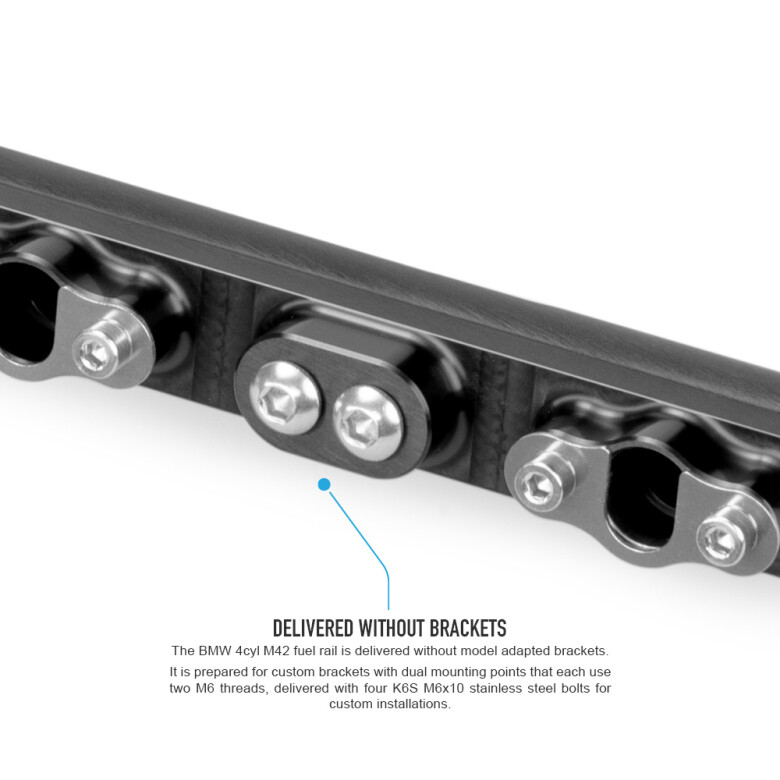

Precision Fitment – Custom Brackets Required
This model-adapted fuel rail is delivered without brackets and must be mounted using custom-made brackets. Mounting points are M6 threaded for easy fabrication.Compatible vehicle: BMW M42B18 1989–1996
Thread Specifications and Available Fittings
The rail includes:
- AN-8 ORB main ports
- AN-6 ORB side port (plug included)
Compatible fittings (sold separately):

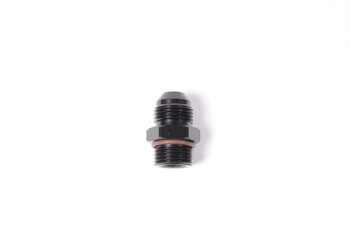

- AN-8 ORB to AN-6 Male – Part #700-04-104
- AN-8 ORB to AN-8 Male – Part #700-04-105
- AN-8 ORB to AN-10 Male – Part #700-04-106
- AN-8 ORB to AN-6 Full Flow Banjo – Part #710-01-105
- AN-8 ORB to AN-8 Full Flow Banjo – Part #710-01-106
- AN-8 ORB to AN-10 Full Flow Banjo – Part #710-01-107
- AN-8 ORB Plug – Part #700-04-116
- AN-8 ORB to 1/8 NPT Female Adapter – Part #700-04-129

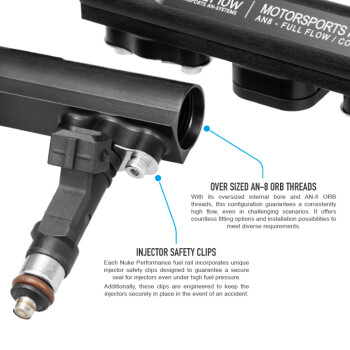

Injector Safety Clips for Maximum Security
Nuke Performance injector safety clips ensure a leakproof and secure seal even under extreme conditions, high fuel pressure, or in case of mechanical stress or crash events. This minimizes the risk of fuel leakage.
Designed and Manufactured in Sweden
Developed in-house by Nuke Performance, the M42 fuel rail embodies the brand’s commitment to motorsport-grade quality, durability, and innovative design. All components are tested and co-developed with race teams and BMW specialists worldwide.
Specifications:
| Brackets included | No - custom brackets required |
| Injector compatibility | Bosch EV14 |
| Inlet/Outlet Threads | AN-8 ORB |
| Additional Port | AN-6 ORB |
| Length | 318mm (12.52") |
| Height | 32mm (1.26") |
| Weight | 295g (10.40 oz) |
| Fuel Compatibility | Petrol, Ethanol, E85, E100, Methanol |
| Motorsport rated | Yes |
| Part Number | 120-02-112 |
| Replaces | Old Part #100-02-204 |
| EAN | 7340209501018 |
Included in the Kit:
- 1 x AN-6 ORB Plug
- 4 x Injector Safety Clips
- 8 x M4x6mm Stainless Bolts (MC6S)
- 4 x M6x10mm Stainless Bolts (K6S)
Note: Injectors and fittings are not included and must be purchased separately.
Need Customization?
We offer custom turbo and fuel rail solutions with various flange and port options. Contact us by phone, email, or our contact form for tailored configurations.
Features
- Color: black
- Engine Part: Fuel Rail
- Availability: order on customer request
- Thread: -08 AN / Dash 8
