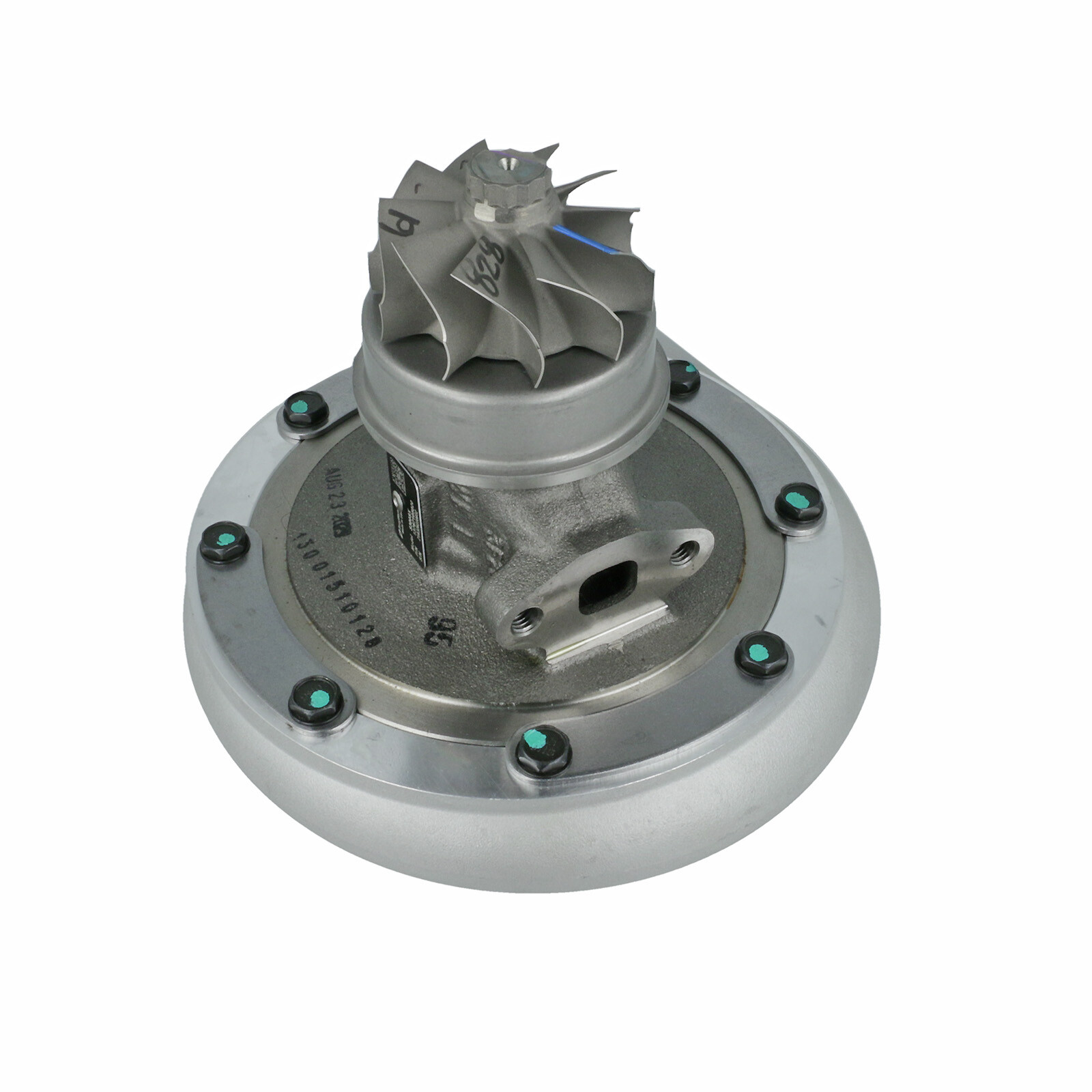

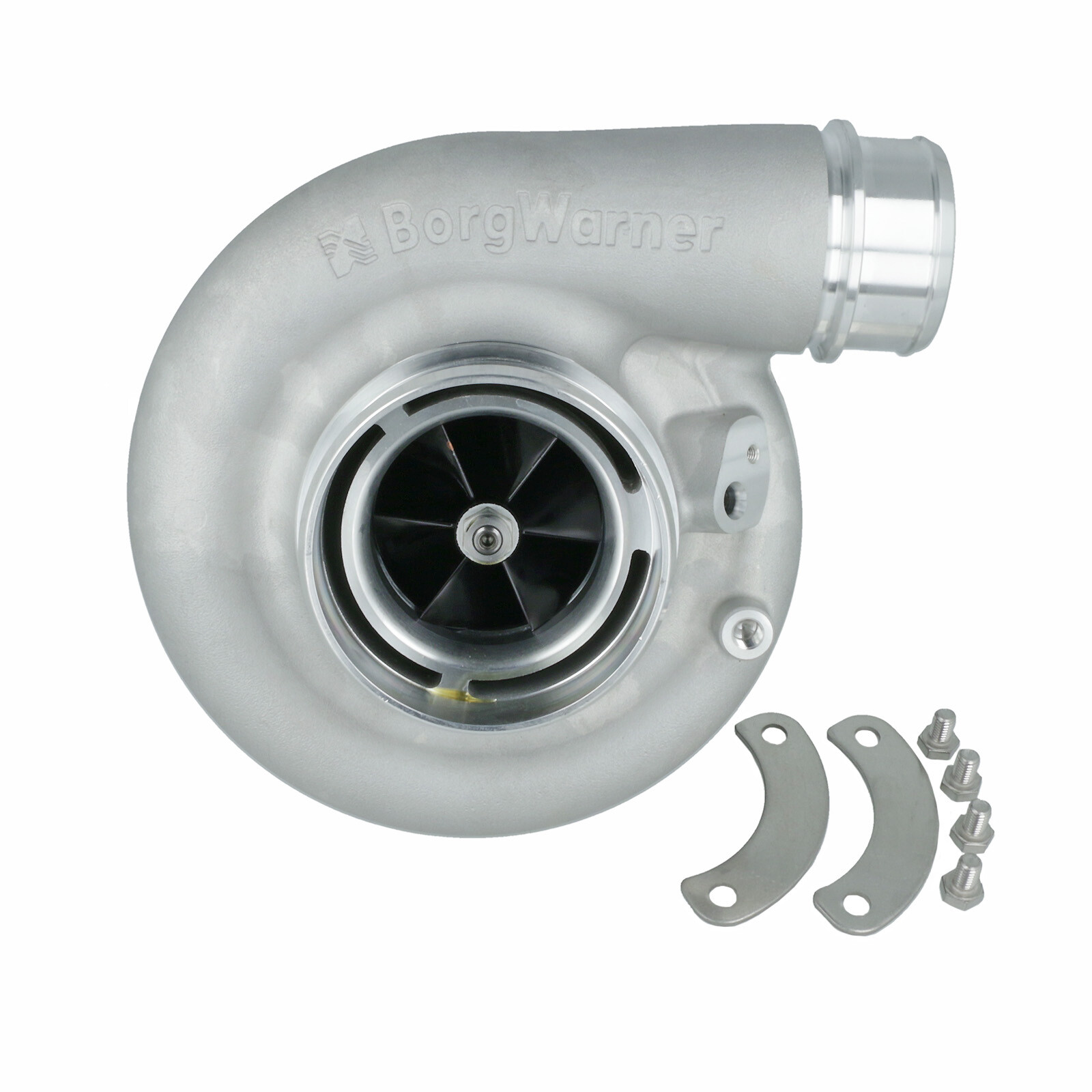

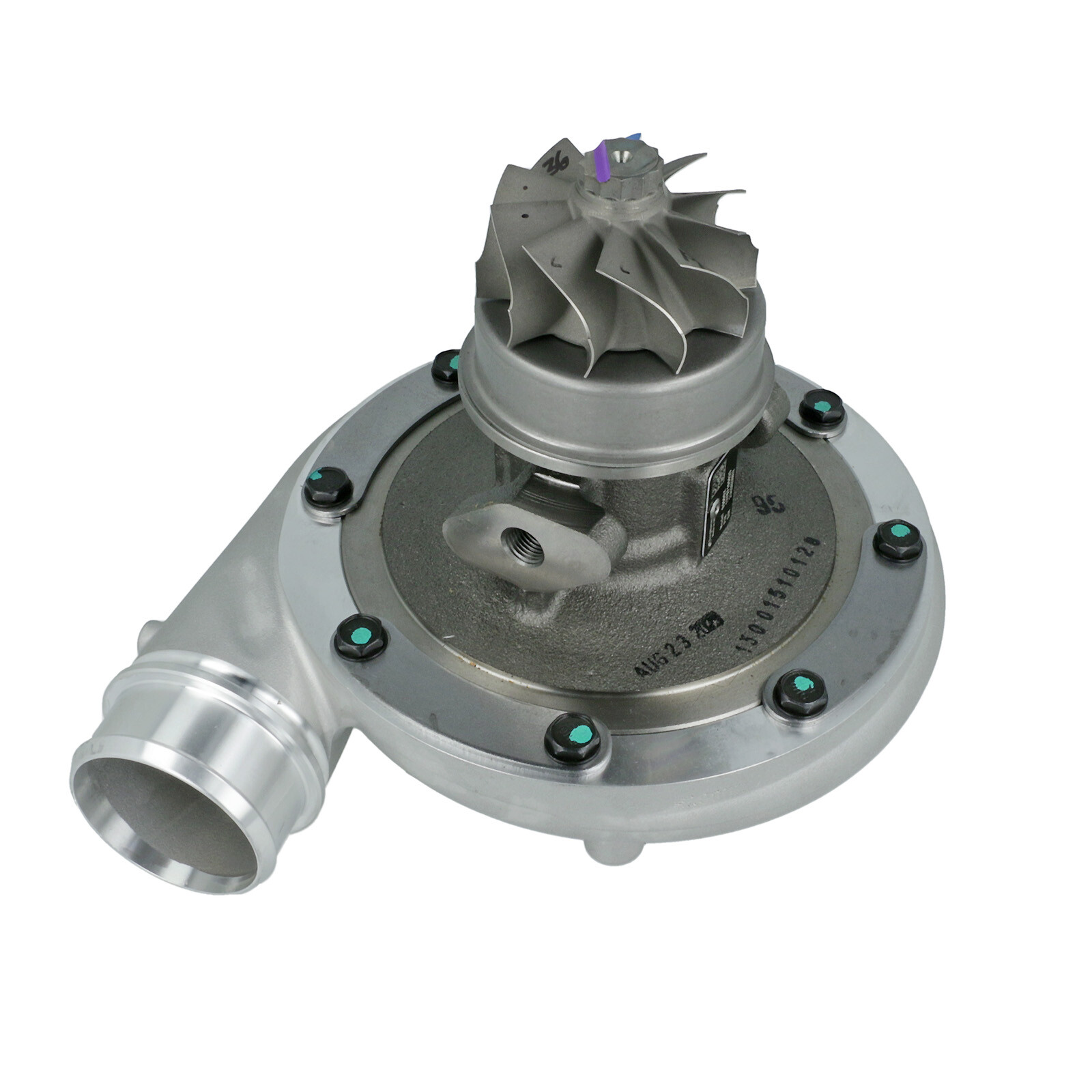

BorgWarner AirWerks S300SX-R Turbo Supercore - 68mm 88/80
W part number 13807105053 aka S368SX-R
The brand new AirWerks S300SX-R Super-Core for up to 1100 HP with faster time to boost than similarly sized rotor groups
BorgWarner Turbo Aftermarket is pleased to announce the release of the AirWerks S200SX-R and S300SX-R series super-cores for performance applications! The SX-R series offers improved aerodynamics to include a more efficient compressor wheel which is smaller with higher output potential. The smaller rotor group offers reduced inertia and faster time to boost than similarly sized rotor groups.
General description S200SX-R / S300SX-R:
The BorgWarner SX-R Supercores are a symbiosis of the attractively priced AirWerks turbochargers and the high technology of the EFR turbos. The most important key feature of the EFR series is the forged and milled compressor wheel in a special design with the perfectly matched high-flow intake ducts. This has been adopted in the AirWerks turbochargers in order to achieve perfect response behavior and optimum boost pressure build-up as with the EFR turbochargers. However, the basics of the AirWerks series have been retained, so that the turbocharger still has a cast turbine ousing and a robust (overhaulable) bearing system. The pre-installation for the speed sensor has also been retained in order to achieve the optimum efficiency of the supercharger.
AirWerks turbochargers from BorgWarner Turbo Systems are dedicated aftermarket turbos for the performance sector. Proven line-produced parts (mostly from Schwitzer Turbo) are being combined to deliver high end tuning and motorsports performance while maintaining an ideal price/performance ratio.
Tech specs:
Performance rating: 500 - 1100 HP
Compressor housing: intake 4.0" / 102mm / pressure side 2.5" / 63,5mm
Compressor wheel: inducer 68,00mm / exducer 88,00mm
Turbine housing: no
Turbine wheel: inducer 79,76mm / exducer 73,37mm
Features:
- Only Super Core with mounting kit for turbine housing, the turbine housing must be purchased separately
- Forged milled aluminum compressor wheel with extented tip technology (EFR tech)
- Reinforced journal and 360° thrust bearings
- Integrated speed sensor port
- Pre-machined boost port
- High Flow compressor housing (EFR tech)
- Fits for BorgWarner AirWerks S300SX / S300SX-E / S300SX-R turbine housings
Buy First Hand
We are the main German distributor for BorgWarner Performance Turbochargers with exclusive sales rights for Germany, Austria and Switzerland. Any AirWerks und EFR Turbochargers made by BorgWarner can only be sold in these countries either by us or by our dealers. Buy your products first hand and benefit from our excellent support and consultation. Furthermore the short supply chain ensures a quick repair or replacement if needed. As the German distributor we guarantee you, that the product is functioning correctly. In the unlikely case of a malfunction, we send out a free replacement. Malfunctions that are resulting from misuse, improper use, negligence, unauthorized alteration or repair will not be compensated.
We only sell 100 % original products. Buying from us means, you always buy the latest version. No refurbished products and no knock offs that look deceptively like the real product.
