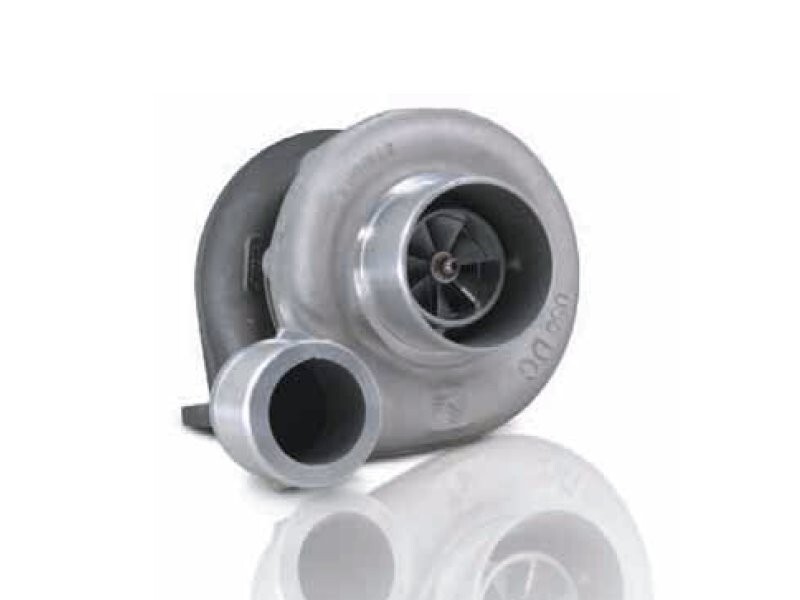

BorgWarner AirWerks S300SX3 Turbo - 63mm 87/76
BW part number 177283 aka S363SX3
Genuine BorgWarner AirWerks turbocharger
Note: Currently, some compressor housings come without a logo! This is not a difference in quality! All components come directly from BW USA from the factory.
AirWerks S363SX3 turbochargers from BorgWarner Turbo Systems are dedicated aftermarket turbos for the performance sector. Proven line-produced parts (mostly from Schwitzer Turbo) are being combined to deliver high end tuning and motorsports performance while maintaining an ideal price/performance ratio.
performance rating: 320 - 800 HP
compressor housing: intake 101mm / pressure side 76mm (parallel zur intake)
compressor wheel: inducer 62,99mm / exducer 87mm (exakter Wert ist 87,37mm)
turbine housing: 0.88 AR / header flange T4 Single Scroll / turbine outlet BorgWarner V-Band
turbine wheel: inducer 76,20mm / exducer 67,56mm / external wastegate
- dual hydrodynamic journal bearing
- extended tip technology
- Single Scroll turbine housing (twinscroll housings available)
- adjustable orientation of compressor housing and turbine housing
- compressor housing with anti-surge ports (High-Flow)
Different A/R ratio?
If you order an AirWerks turbocharger and wish to have a different AR you have to order the corresponding turbine housing separately.Buy First Hand
We are the main German distributor for BorgWarner Performance Turbochargers with exclusive sales rights for Germany, Austria and Switzerland. Any AirWerks und EFR Turbochargers made by BorgWarner can only be sold in these countries either by us or by our dealers. Buy your products first hand and benefit from our excellent support and consultation. Furthermore the short supply chain ensures a quick repair or replacement if needed. As the German distributor we guarantee you, that the product is functioning correctly. In the unlikely case of a malfunction, we send out a free replacement. Malfunctions that are resulting from misuse, improper use, negligence, unauthorized alteration or repair will not be compensated.
We only sell 100 % original products. Buying from us means, you always buy the latest version. No refurbished products and no knock offs that look deceptively like the real product.
- Model: external WastegateJournal bearing
- Flange type: T4 undivided / SingleScroll
- Turbocharger: Airwerks S300SX3S300SX3
- a/r Value: 0.88ar
- Item weight: 10,00 kg
