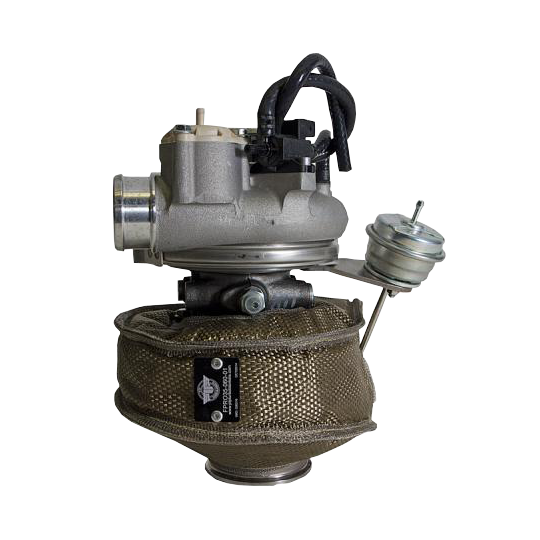

BorgWarner Single Scroll EFR (up to 7163) Turbo Blanket
Turbo blanket for Heat Isolation
Protection and Performance Increasing
PTP Turbo Blankets isolate the heat produced by your turbocharger with the purpose of reducing turbo lag, cooler air intake temperatures, protecting and prolonging engine components, and giving a boost in horsepower.
In keeping the heat of the exhaust gases contained within the hot side of the turbocharger and away from the cool side of the turbocharger and the intake path, more oxygen per unit volume reaches the engine, and thus, more power.
PTP turbocharger heat shield blankets were tested at the University of Austin Texas 2016 for a study. Link to the study
The results speak for themselves. The PTP Turbocharger blankets improved the efficiency and the thermodynamic performance of the engine in all its aspects. Improved turbocharger response, bearing housing temperatures remained almost unchanged, improved spool-up time after the shift, reduced pressure drop during the shifting process, and thermal relief of the components outside the turbine housing clearly demonstrated why a PTP turbo blanket always should be used.
Fitment: Designed to fit the BorgWarner EFR turbochargers with internal wastegate and Single Scroll Housing.
With an outer layer made from actual pulverized volcanic lava rock (continuous-filament basalt) formed into fabric and woven into a tight mesh weave, these turbo blankets are internally insulated with high temperature calcium magnesium silicate wool. The Lava Turbo Blankets are designed for increased durability, improved thermal resistance, and able to withstand the harshest of conditions.
Lava Turbo Blanket Heat Tolerance:
Interior Surface:
Max Temperature Rating: 1260°C
Continuous Use Limit: 1000°C
Exterior Surface:
Direct Contact Limit: 982°C
Radiant Heat Limit: 1371°C
Works with the folowing turbbochargers:

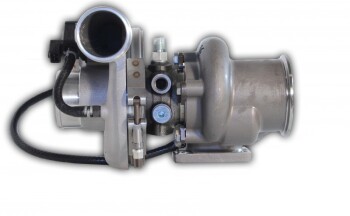

EFR-6258-S - BorgWarner EFR-6258 T25 WG 0,64ar
EFR-6758-S - BorgWarner EFR-6758 T25 WG 0,64ar
11589880034 - BorgWarner EFR-6758 T25 WG 0,85ar
11589880035 - BorgWarner EFR-6758 V-Band WG 0,85ar

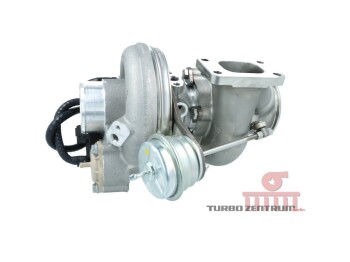

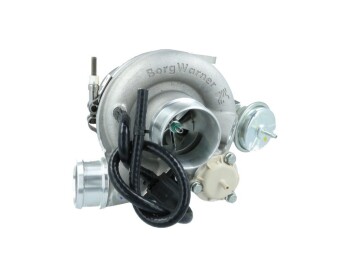

11639880005 - BorgWarner EFR-7163 T25 WG 0,85ar

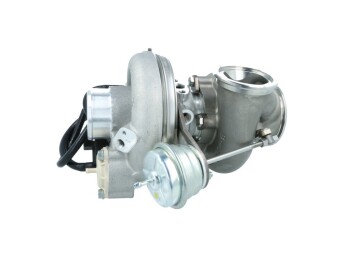

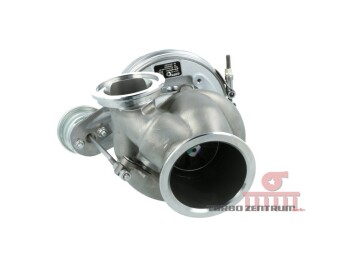

11639880006 - BorgWarner EFR-7163 V-Band WG 0,85ar
11639880007 - BorgWarner EFR-7163 V-Band ohne WG 0,80ar
EFR-AL6258-S - BorgWarner EFR-6258-AL T25 WG 0,64ar
EFR-AL6258-85 - BorgWarner EFR-6258-AL T25 WG 0,85ar
EFR-AL6258-VBWG - BorgWarner EFR-6258-AL V-Band WG 0,85ar
EFR-AL6258-VB - BorgWarner EFR-6258-AL V-Band ohne WG 0,85ar
EFR-AL6758-S - BorgWarner EFR-6758-AL T25 WG 0,64ar
EFR-6758-85 - BorgWarner EFR-6758-AL T25 WG 0,85ar
EFR-AL6758-VBWG - BorgWarner EFR-6758-AL V-Band WG 0,85ar
EFR-AL6758-VB - BorgWarner EFR-6758-AL V-Band ohne WG
Buy First Hand
We are the main German distributor for PTP Turbo Blankets from USA with exclusive sales rights for Germany, Austria and Switzerland. Any Parts made by PTP can only be sold in these countries either by us or by our dealers. Buy your products first hand and benefit from our excellent support and consultation. Furthermore the short supply chain ensures a quick repair or replacement if needed. As the German distributor we guarantee you, that the product is functioning correctly. In the unlikely case of a malfunction, we send out a free replacement. Malfunctions that are resulting from misuse, improper use, negligence, unauthorized alteration or repair will not be compensated.
We only sell 100 % original products. Buying from us means, you always buy the latest version. No refurbished products and no knock offs that look deceptively like the real product.
