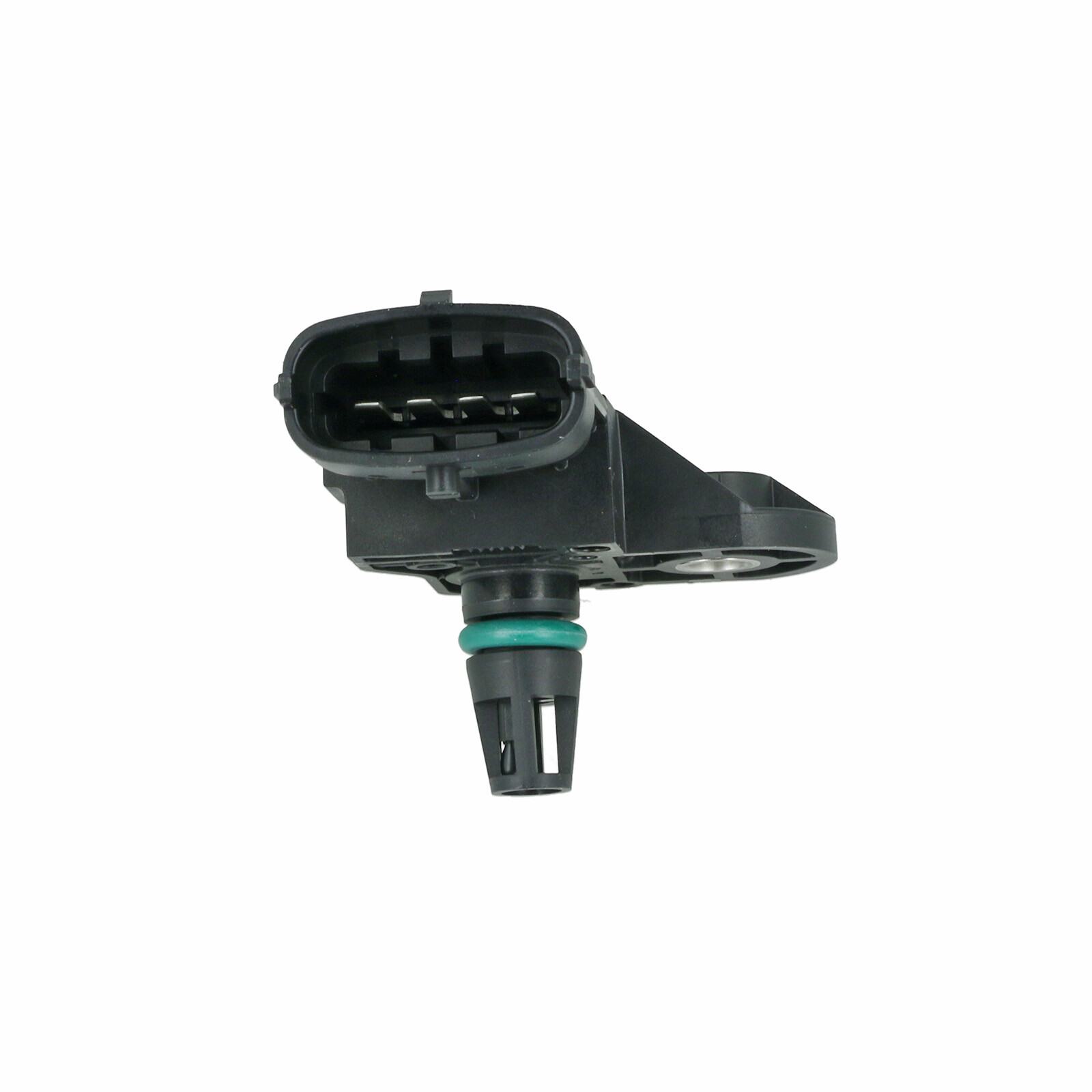

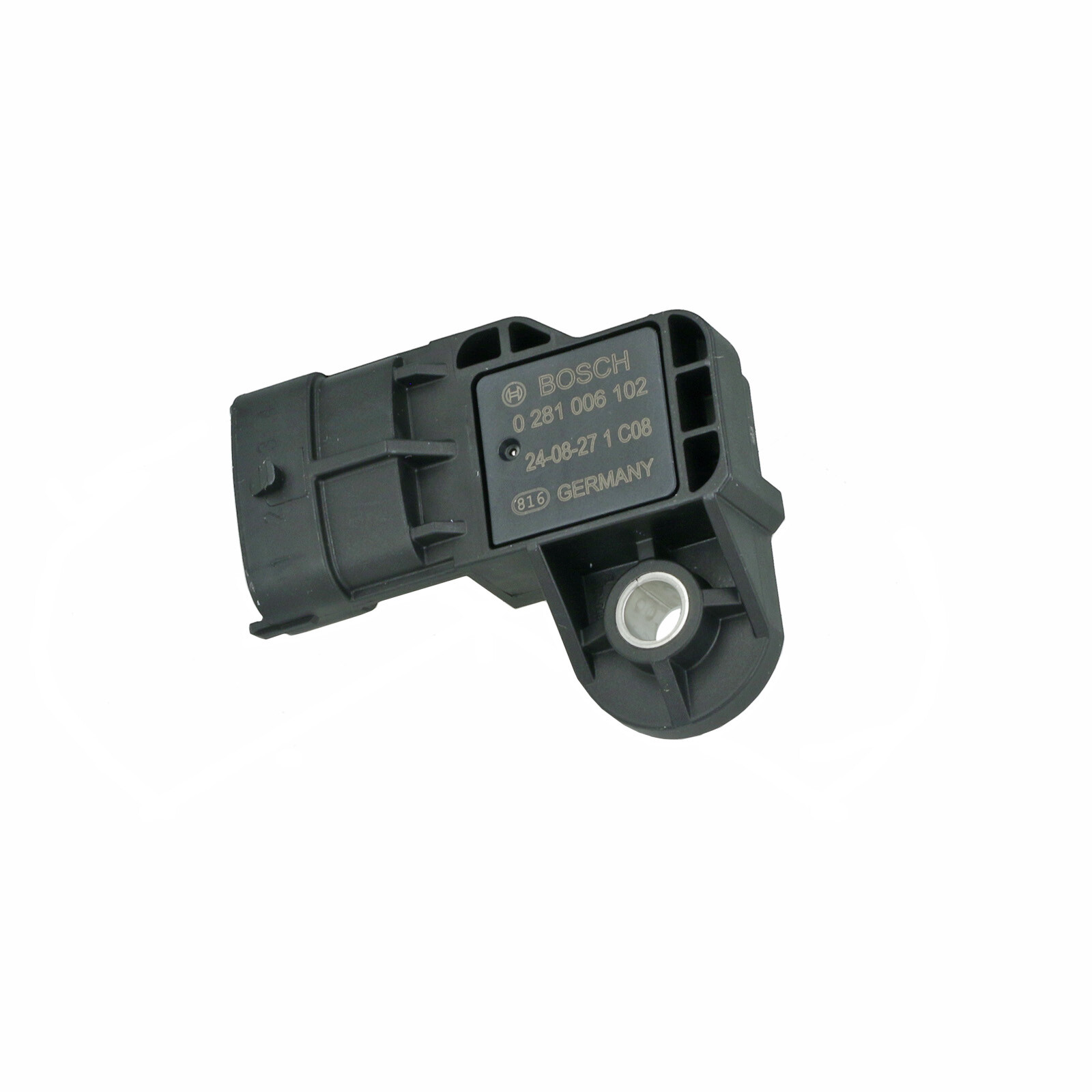

Boost pressure sensor 0.5 - 4.0 bar
Bosch Performance sensor for measuring boost pressure with integrated charge air temperature sensor
Compatible with our Displays / Gauges
When it comes to engine sensors, exhaust temperature measurement is often prioritized, but monitoring boost pressure, intake air, charge air, or ambient temperature is also essential.
Boost pressure sensors, also known as Manifold Absolute Pressure (MAP) sensors, measure the pressure in the charge air system to indicate engine load. These sensors are typically used in "Speed/Density" or "Manifold Pressure Controlled" engine management systems that do not use a mass air flow meter (MAF).
Technical Data:
- Type: Boost Pressure Sensor with Integrated Charge Air Temperature Sensor
- Pressure Range: 0.5 to 4.0 bar
- Thread: M6x1mm
- Installation Torque: 12 Nm
- Type: NTC
- Calibration: 500 hPa at 0.499V, 4000 hPa at 4.497V
- Connections: Ground, Optional: Temperature Measurement (NTC); Supply Voltage, typically 5.0 volts; Output Signal, 0 to 4.5 volts
Pin 1: Ground
Pin 2: NTC
Pin 3: +5V (Supply Voltage)
Pin 4: Output Signal (0 - 4.5v)
We are an authorized BOSCH Performance dealer
BOSCH Performance parts differ from conventional BOSCH parts!
BOSCH Performance Parts is a carefully selected and developed product line by BOSCH, offering the best possible performance in its class. Presented by TurboZentrum, which itself consists of automotive professionals and vehicle enthusiasts.
These are high-quality tuning/performance parts that are road-ready and developed and approved to the highest BOSCH standards for automotive use. They have proven their value over numerous years in use by world-renowned OEMs and are now available to our customers, along with technical information and consulting, to best support you and your project.
BOSCH Performance bridges the gap between the aftermarket and BOSCH Motorsport. BOSCH Motorsport develops products primarily for professional motorsports, which are generally not accessible to the public market. Unfortunately, many products are often incorrectly labeled as BOSCH Motorsport items, though they are mostly aftermarket or, more rarely, BOSCH Performance products.
Trust the certified BOSCH Performance dealer TurboZentrum.
