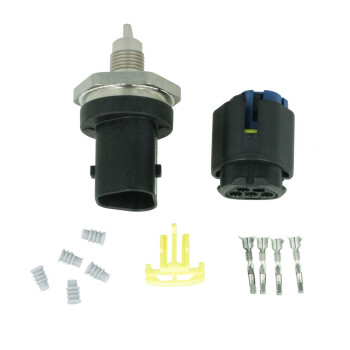

Bosch Performance fuel temperature / oil pressure sensor Kit - 026154401F / 0261230482 / 0261230340
Ideal for pressure and temperature measurement in liquids / fluids
With Plug Kit, measures pressures up to 10 bar and temperatures up to 140 °C
Note: The connector housing (NOT the sensor) may have incorrectly printed pin numbers. Please always refer to the pin assignment shown in the Bosch PDF in our images and do not rely on the numbers printed on the connector itself.
The Bosch sensor 026154401F (previous Bosch number 0261230482) combines two functions in one device: it measures both pressure and temperature in liquid media such as coolant, engine oil, transmission oil, or fuels. This sensor can accurately measure pressures up to 10 Bar and temperatures up to 140 °C.
Features:
- Combination sensor: Ideal for pressure and temperature measurement in liquids
- Compatibility: Suitable for diesel, gasoline, water, engine, and transmission oil

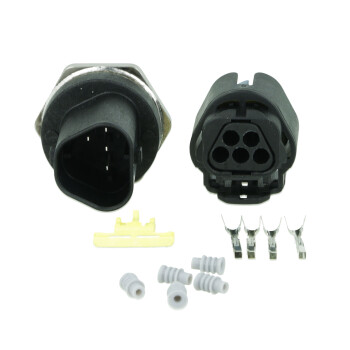

- Connection: 4-pin Bosch trapezoid connector
- Thread: M10x1 external thread with 45° cone seat for optimal sealing
-
Measurement ranges:
- Temperature: -40 °C to +140 °C
- Pressure: 0 to 10 Bar
- Replaces Bosch part number: 0 261 230 482 / 0 261 230 340
- Power supply: Operates at +5 volts
- Tightening torque: 40 Nm
- Wrench size: 27 mm
- 1: Not assigned
- 2: Pressure signal (0.5V = 0bar, 4.5V = 10bar)
- 3: Supply voltage +
- 4: GND

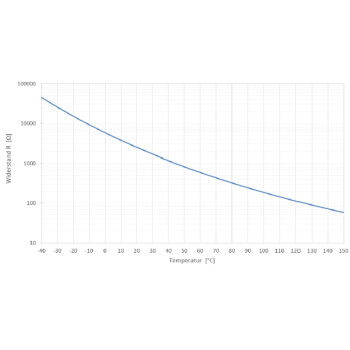

- 5: NTC output (44864ohm = -40 deg C, 72ohm = 140 deg C)
- Housing 1x: 928 405 159t
- Contact pin 4x: 928 498 808
- Wire seal 5x: 928 300 934
Thanks to its robust construction and versatility, this sensor is perfectly suited for various applications in automotive and mechanical engineering.
Sensor Type: Pressure Sensor PS-MPS1-TF_ANote: The hydraulic system should be designed to ensure that under all operating conditions, no pressures or pressure spikes (e.g., due to cavitation or dynamic pressure surges) exceed the permissible overpressure limits of the sensor.
We are an authorized BOSCH Performance dealer
BOSCH Performance parts differ from conventional BOSCH parts!
BOSCH Performance Parts is a carefully selected and developed product line by BOSCH, offering the best possible performance in its class. Presented by TurboZentrum, which itself consists of automotive professionals and vehicle enthusiasts.
These are high-quality tuning/performance parts that are road-ready and developed and approved to the highest BOSCH standards for automotive use. They have proven their value over numerous years in use by world-renowned OEMs and are now available to our customers, along with technical information and consulting, to best support you and your project.
BOSCH Performance bridges the gap between the aftermarket and BOSCH Motorsport. BOSCH Motorsport develops products primarily for professional motorsports, which are generally not accessible to the public market. Unfortunately, many products are often incorrectly labeled as BOSCH Motorsport items, though they are mostly aftermarket or, more rarely, BOSCH Performance products.
Trust the certified BOSCH Performance dealer TurboZentrum.
