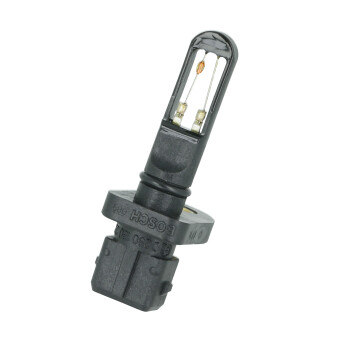

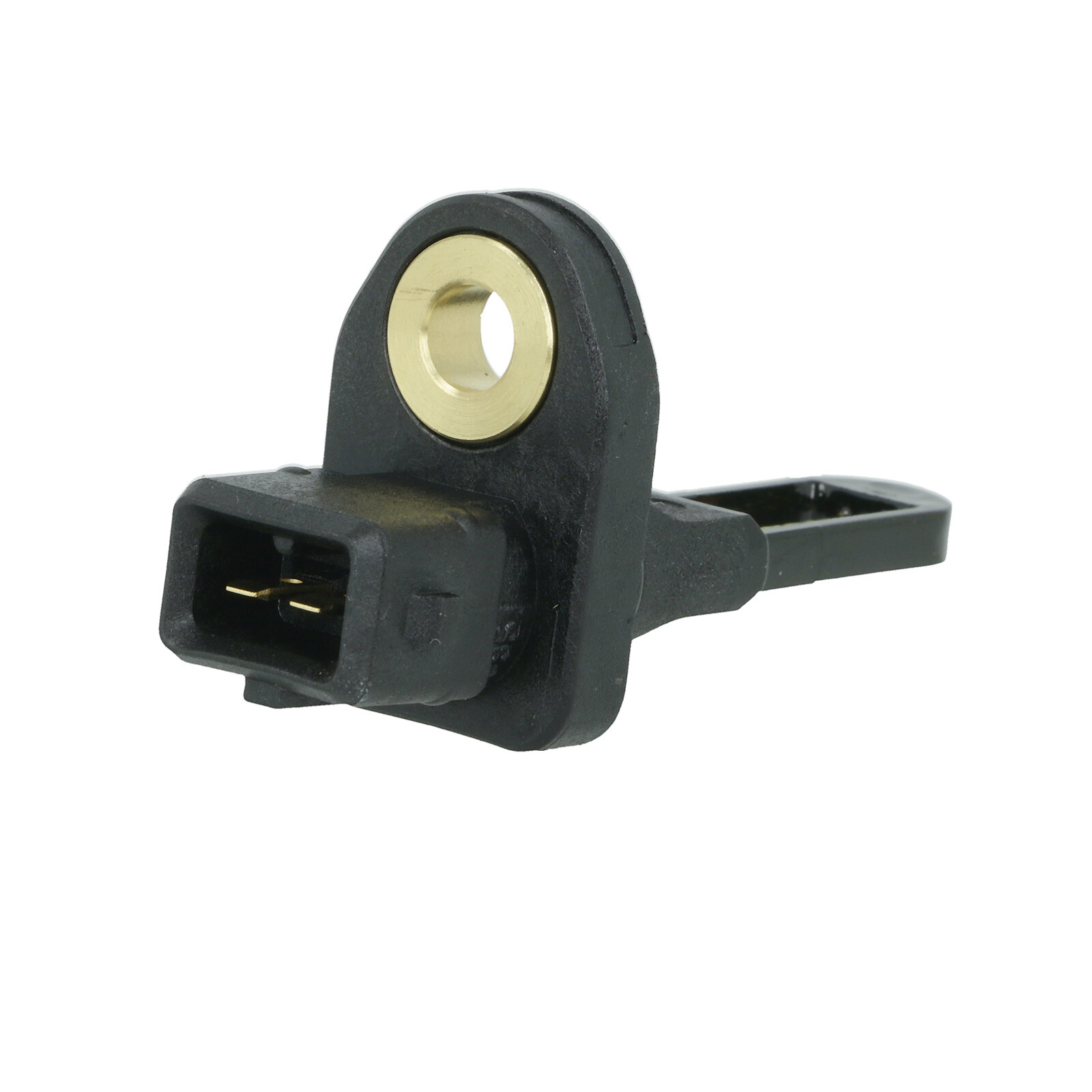

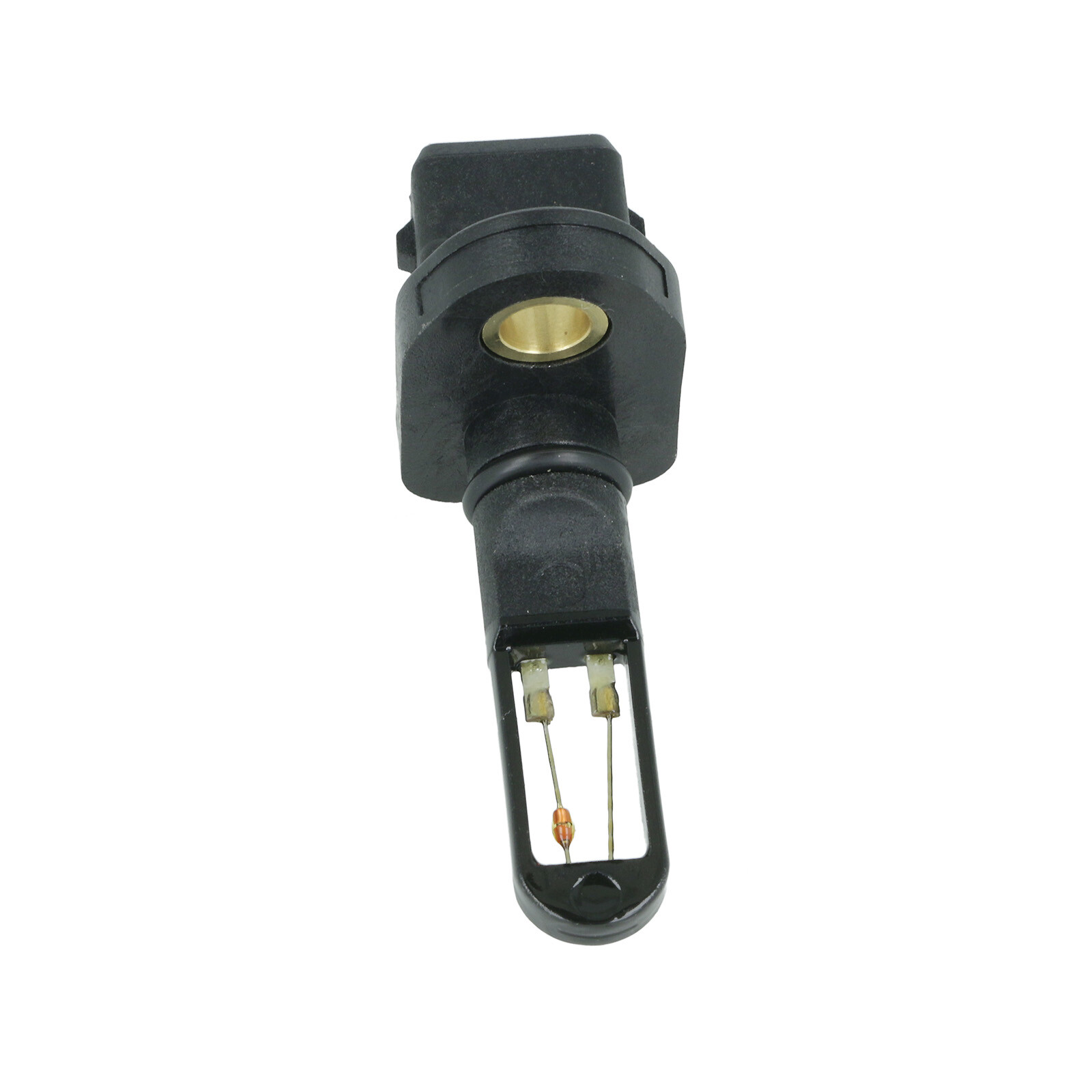

Intake air / charge air temperature sensor / 140°C / M6, 1mm
Bosch Performance sensor for seasuring charge air / intake air temperature
Compatible with our Displays / Gauges
When it comes to engine sensors, exhaust temperature measurement is often prioritized, but it’s also important to monitor boost pressure, intake air, charge air, or ambient temperature.
Charge air measurement is particularly interesting, especially before and after the intercooler. This allows for an assessment of whether the installed intercooler is functioning efficiently.
This sensor is designed for measuring air temperature, such as in the air filter housing or for ambient temperature. The signal can be used as a control parameter for engine control units or as a value recorded in a data acquisition system. The NTC sensor element has a negative temperature coefficient, meaning its conductivity increases as the temperature rises. The sensor element consists of semiconductor heavy metal oxides and oxidized mixed crystals, all protected in a housing. The main advantage of this sensor is its combination of high-quality production with a robust, compact design.
Technical Data:
- Type: NTC in plastic housing
- Thread: M6x1mm
- Installation Torque: 12 Nm
- Weight without Cable: 24.6 g
- Type: NTC
- Nominal Resistance at 20°C: 2.4 kOhm ± 5.4%
R (Ohm) | Temp (°C) |
39.26 | -40 |
22.96 | -30 |
13.85 | -20 |
8.61 | -10 |
5.5 | 0 |
2.42 | 20 |
1.17 | 40 |
0.609 | 60 |
0.341 | 80 |
0.202 | 100 |
0.127 | 120 |
0.102 | 130 |
Accessories:
- Jetronic Connector 2-pin: 1 928 402 078
- Temperature-Resistant Cap; Includes: 1 x 1 280 703 031
- Contact Pins for 0.5..1.0 mm²; Tyco Number: 929 939-31
- Contact Pins for 1.5..2.5 mm²; Tyco Number: 929 937-31
- Individual Seal for 0.5..1.0 mm²; Includes: 50 x 1 987 280 106
- Individual Seal for 1.5..2.5 mm²; Includes: 20 x 1 987 280 107
These thermistors allow for precise temperature measurement when paired with suitable evaluation circuits. Depending on the housing design, these sensors are suitable for measuring temperatures in liquids and gases. In vehicles, they are used to measure the temperature of engine oil, coolant, fuel, intake air, and gas within a range of -40 to 150°C.
Note:
For a 2-pin connector, one connector housing, two contact pins, and two individual seals are required.
For automotive applications, original Tyco crimp tools should be used.
We are an authorized BOSCH Performance dealer
BOSCH Performance parts differ from conventional BOSCH parts!
BOSCH Performance Parts is a carefully selected and developed product line by BOSCH, offering the best possible performance in its class. Presented by TurboZentrum, which itself consists of automotive professionals and vehicle enthusiasts.
These are high-quality tuning/performance parts that are road-ready and developed and approved to the highest BOSCH standards for automotive use. They have proven their value over numerous years in use by world-renowned OEMs and are now available to our customers, along with technical information and consulting, to best support you and your project.
BOSCH Performance bridges the gap between the aftermarket and BOSCH Motorsport. BOSCH Motorsport develops products primarily for professional motorsports, which are generally not accessible to the public market. Unfortunately, many products are often incorrectly labeled as BOSCH Motorsport items, though they are mostly aftermarket or, more rarely, BOSCH Performance products.
Trust the certified BOSCH Performance dealer TurboZentrum.
