PWM electric water pump for water-cooled charge air cooler

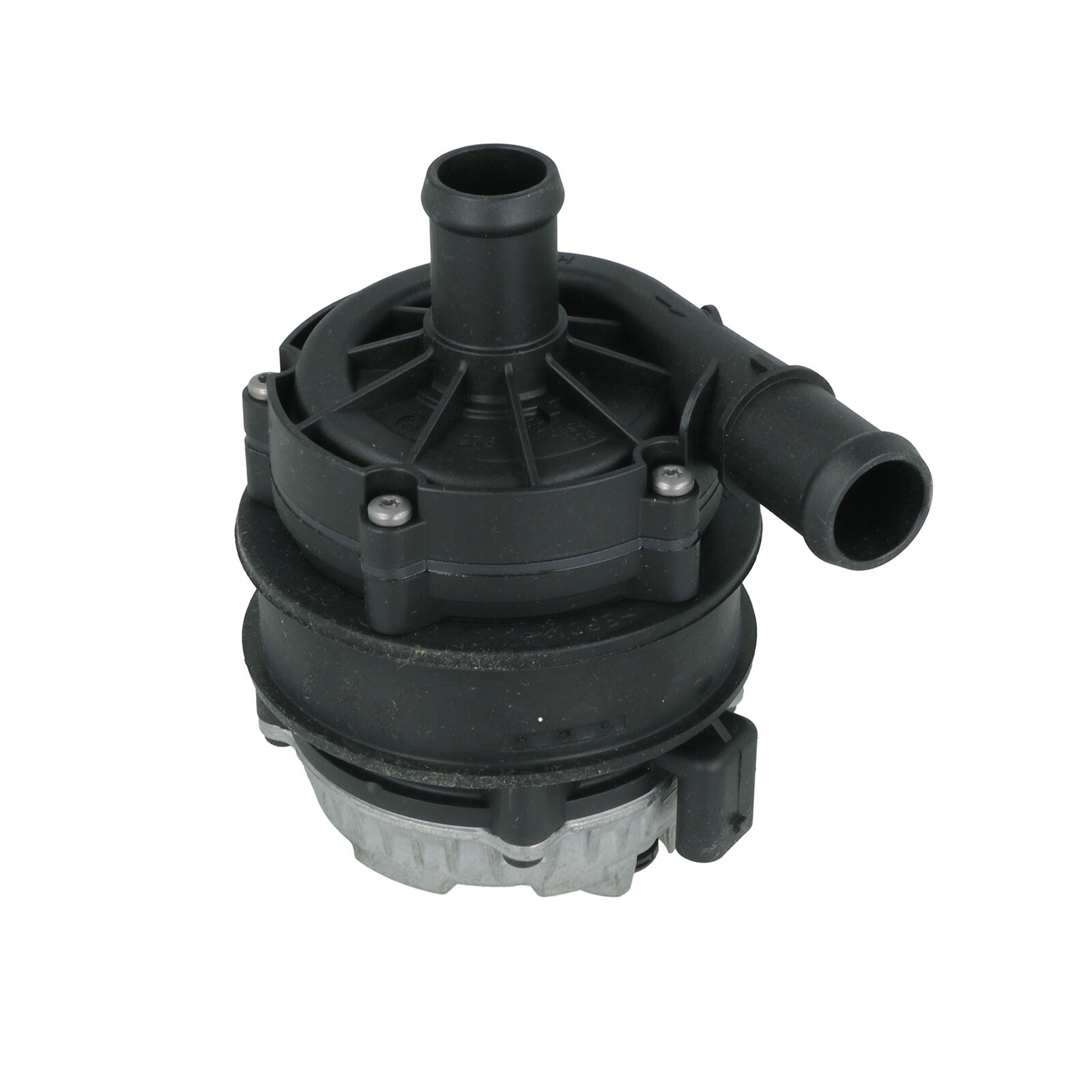

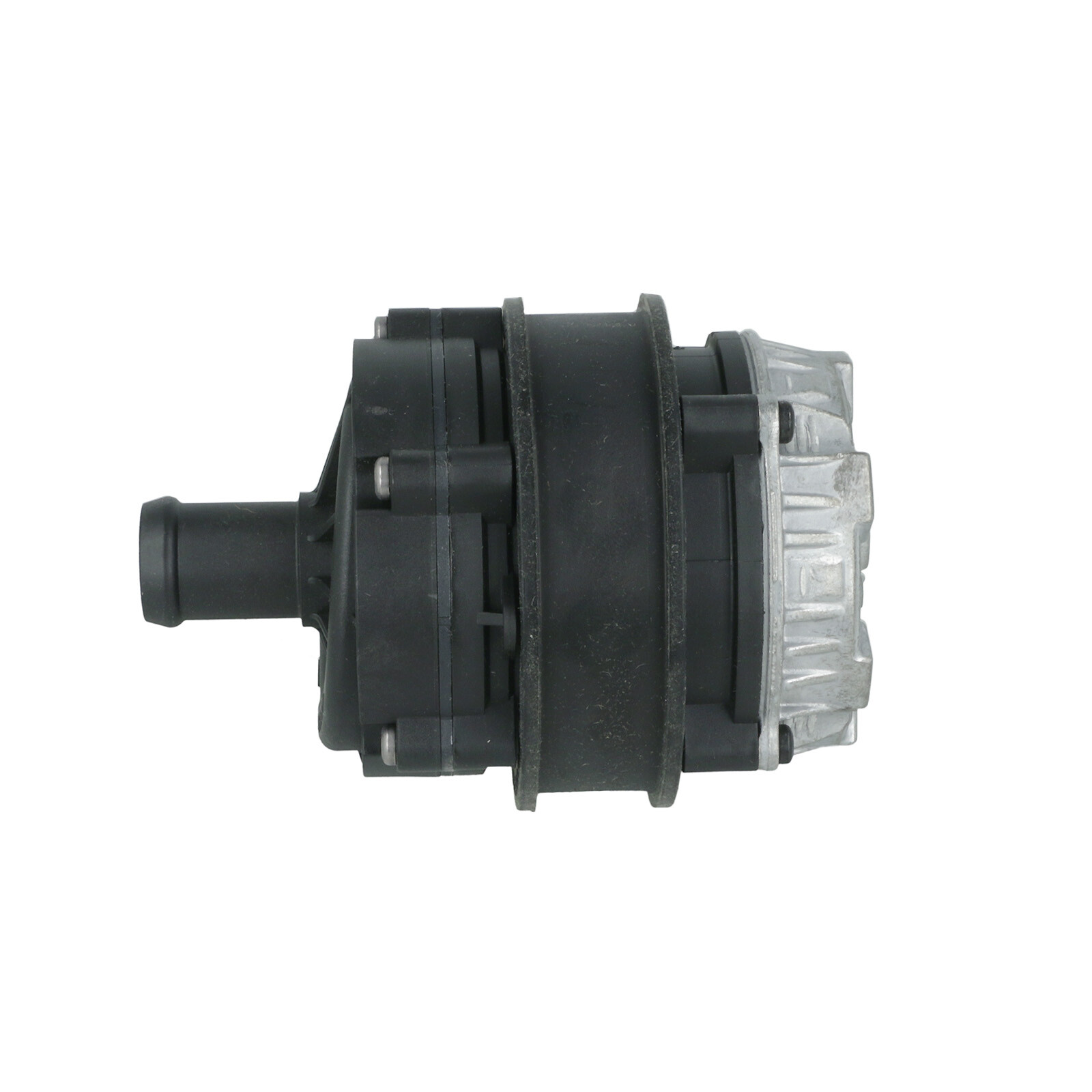

Bosch Performance water pump for WIC with a flow rate of 20 liters / minute
12V Electric water pump for our air-to-water intercooler
The Bosch Coolant Pump PCE is an electronically commutated 12V centrifugal pump suitable for a wide range of applications. Its integrated electronics with fault diagnosis and volume flow regulation through PWM signals ensure higher efficiency.
The robust design leads to a longer lifespan, and depending on the model, a motor mount is also possible. This ensures effective cooling even off-road in snowmobiles, jet skis, or forestry machinery.
If you have a water-cooled charge air cooler installed, you will need a circulation pump for the additional cooler. Our Bosch water pump operates at 12V and has a flow rate of 20L/min, making it ideal for water-cooled charge air systems. Water flow should be moderate to allow enough time for heat transfer.
Technical Data:
- Flow Rate (L/h): 1200
- Nominal Pressure (bar): 0.6
- Nominal Voltage (V): 12
- Weight (kg): 0.65
- Control: PWM
- Medium: Water/Glycol (50/50)
- Connections: Pin 1 Ground, Pin 2 Signal, Pin 3 Power Supply
- TE Connectivity MCON 1.2 1488991-6 (with CPA), …-2 w/o CPA
- Molex MXP120 34900-3102
- Bosch 1 928 498 811
- Tyco / Molex MCON 1.2 1670146-3 – Ag plated (20awg)
- KOSTAL MLK 1.2 [32124734130]
- Bosch 1 928 300 936
- TE Connectivity 967067-1 (20 awg)
- KOSTAL 10800507250
We are an authorized BOSCH Performance dealer
BOSCH Performance parts differ from conventional BOSCH parts!
BOSCH Performance Parts is a carefully selected and developed product line by BOSCH, offering the best possible performance in its class. Presented by TurboZentrum, which itself consists of automotive professionals and vehicle enthusiasts.
These are high-quality tuning/performance parts that are road-ready and developed and approved to the highest BOSCH standards for automotive use. They have proven their value over numerous years in use by world-renowned OEMs and are now available to our customers, along with technical information and consulting, to best support you and your project.
BOSCH Performance bridges the gap between the aftermarket and BOSCH Motorsport. BOSCH Motorsport develops products primarily for professional motorsports, which are generally not accessible to the public market. Unfortunately, many products are often incorrectly labeled as BOSCH Motorsport items, though they are mostly aftermarket or, more rarely, BOSCH Performance products.
Trust the certified BOSCH Performance dealer TurboZentrum.
