BMB01 - Brake Temperature Monitoring Single / BLE
Technology from motorsport with CAN Bus-based temperature measurement of tires
Sensor for measuring brake temperature

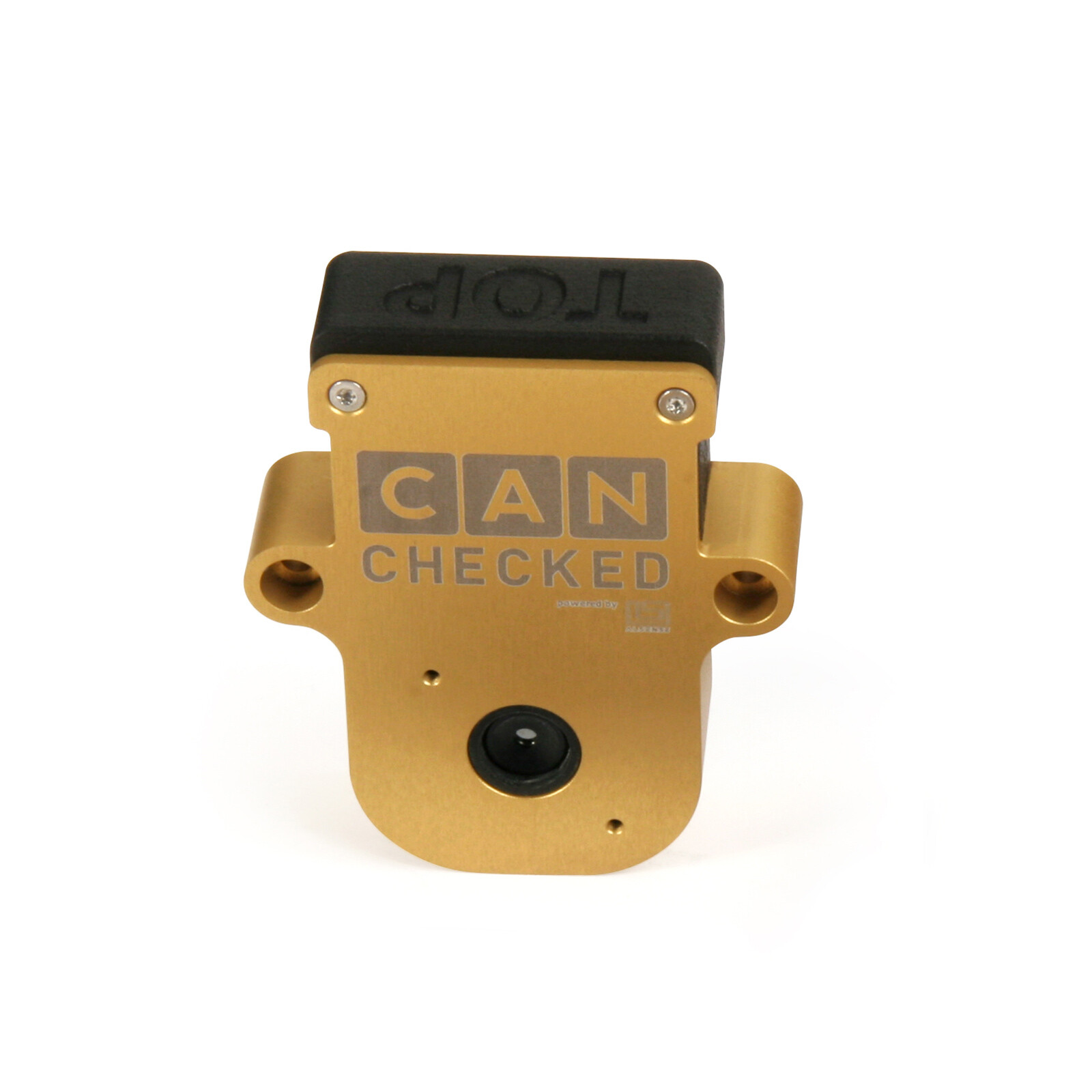

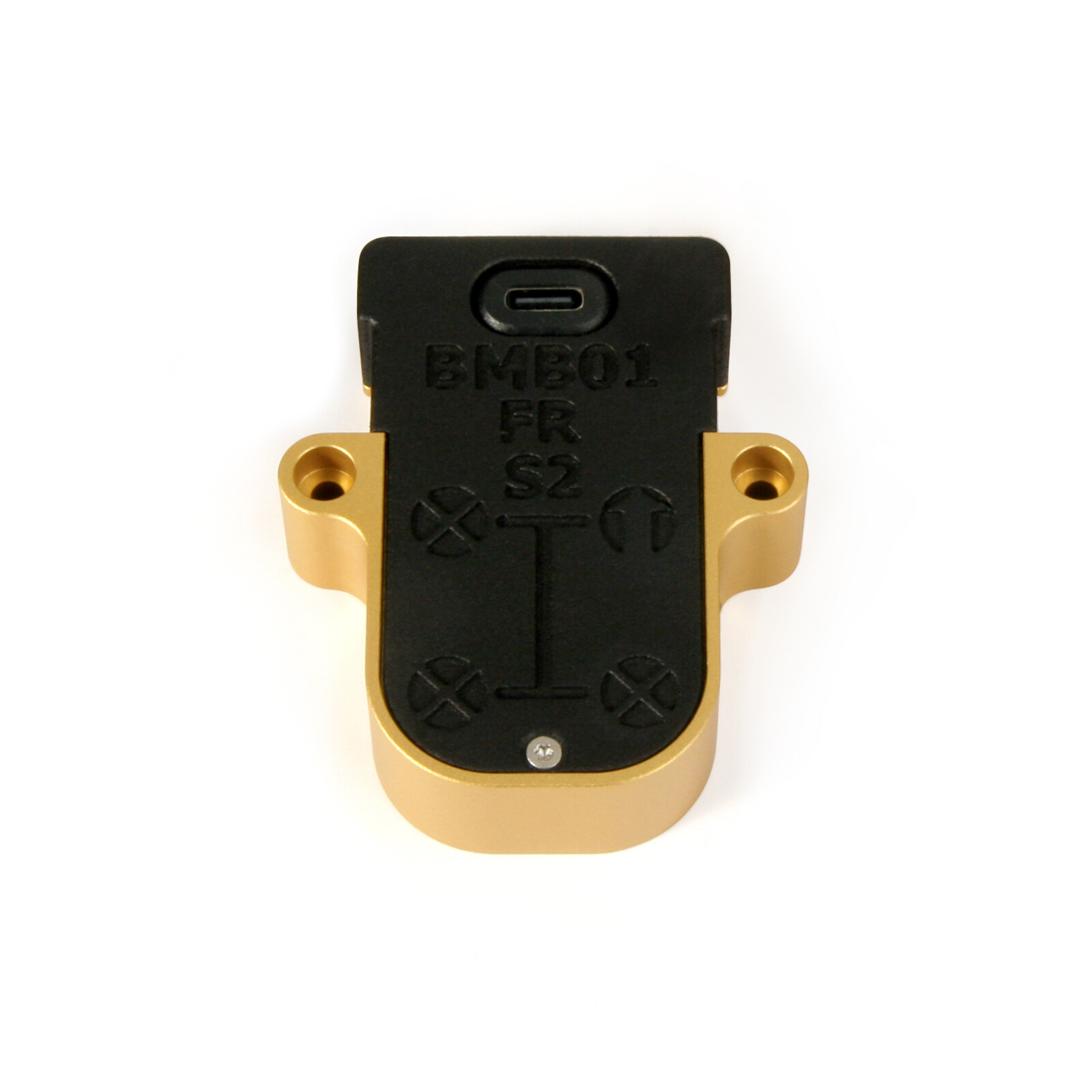

Bluetooth Temperature Sensor for Brakes - BMB01
Monitoring your braking performance has never been easier – **no cables required**! This Bluetooth temperature monitor is a complete, wireless system designed for both racers and high-performance enthusiasts. With four advanced multi-channel infrared sensors, Bluetooth connectivity, and easy setup, this monitor provides real-time temperature data to optimize your vehicle's performance. Installation is quick, and swapping the system between vehicles takes only a few minutes.
Main features:
- Easy wireless setup: Installation and switching between vehicles in minutes, without the hassle of cables
-
Advanced multi-channel monitoring:
- 3 configurable temperature channels per brake
- Adjustable update rate up to 10 Hz for accurate real-time insights
-
Durable, rechargeable battery:
- 250 mAh battery (USB-C charged) with up to 15 hours of active track use
-
High precision and wide temperature range:
- Operating range: -40 to +800°C
- Field of view: 110° standard, optional 55° for focused measurements on request
-
Rugged, compact design:
- Dimensions: 64.0 x 42.0 x 17.5 mm
- Weight: 57g
- Housing: Rugged aluminum/polyamide, protected for harsh environments
- Optional protective lens: Available to increase durability and protection
- Operating temperature: -40 to +85°C
Compatible apps:
- PaceLaps
- GPS Buddy (Harry's Laptimer)
- For developers, documentation is available to integrate this system into your own BLE application – contact us for more details!
Perfect for professional racing and performance testing, this Bluetooth temperature monitor provides the insights you need to optimize tire and brake performance. For developers, our documentation makes integration into BLE applications seamless. Contact us to learn more!
- Availability: available
