BMB04 - Brake Temperature Monitoring SET / BLE
Technology from motorsport with CAN Bus-based tire temperature measurement
Sensor set for measuring brake temperature
Bluetooth Temperature Monitor Set for Brakes - BMB04
Monitoring your brake performance has never been easier – **no cables required**! This Bluetooth temperature monitor set is a complete, wireless system designed for both racers and high-performance enthusiasts. With four advanced multi-channel infrared sensors, Bluetooth connectivity, and easy setup, this monitor set provides real-time temperature data to optimize your vehicle's performance. Installation is quick, and swapping the system between vehicles takes only a few minutes.
Main features:
- Easy wireless setup: Installation and switching between vehicles in minutes, without the hassle of cables
-
Advanced multi-channel monitoring:
- 3 configurable temperature channels per brake, a total of 12 channels per set
- Adjustable update rate up to 10 Hz for accurate real-time insights
-
Durable, rechargeable battery:
- 250 mAh battery (USB-C charged) with up to 15 hours of active track use
-
High precision and wide temperature range:
- Operating range: -40 to +800°C
- Field of view: 110° standard, optional 55° for focused measurements on request
-
Rugged, compact design:
- Dimensions: 64.0 x 42.0 x 17.5 mm per sensor
- Weight: 57g per sensor
- Housing: Rugged aluminum/polyamide, protected for harsh environments
- Optional protective lens: Available to increase durability and protection
- Operating temperature: -40 to +85°C
Compatible apps:
- PaceLaps
- GPS Buddy (Harry's Laptimer)
- For developers, documentation is available to integrate this system into your own BLE application – contact us for more details!

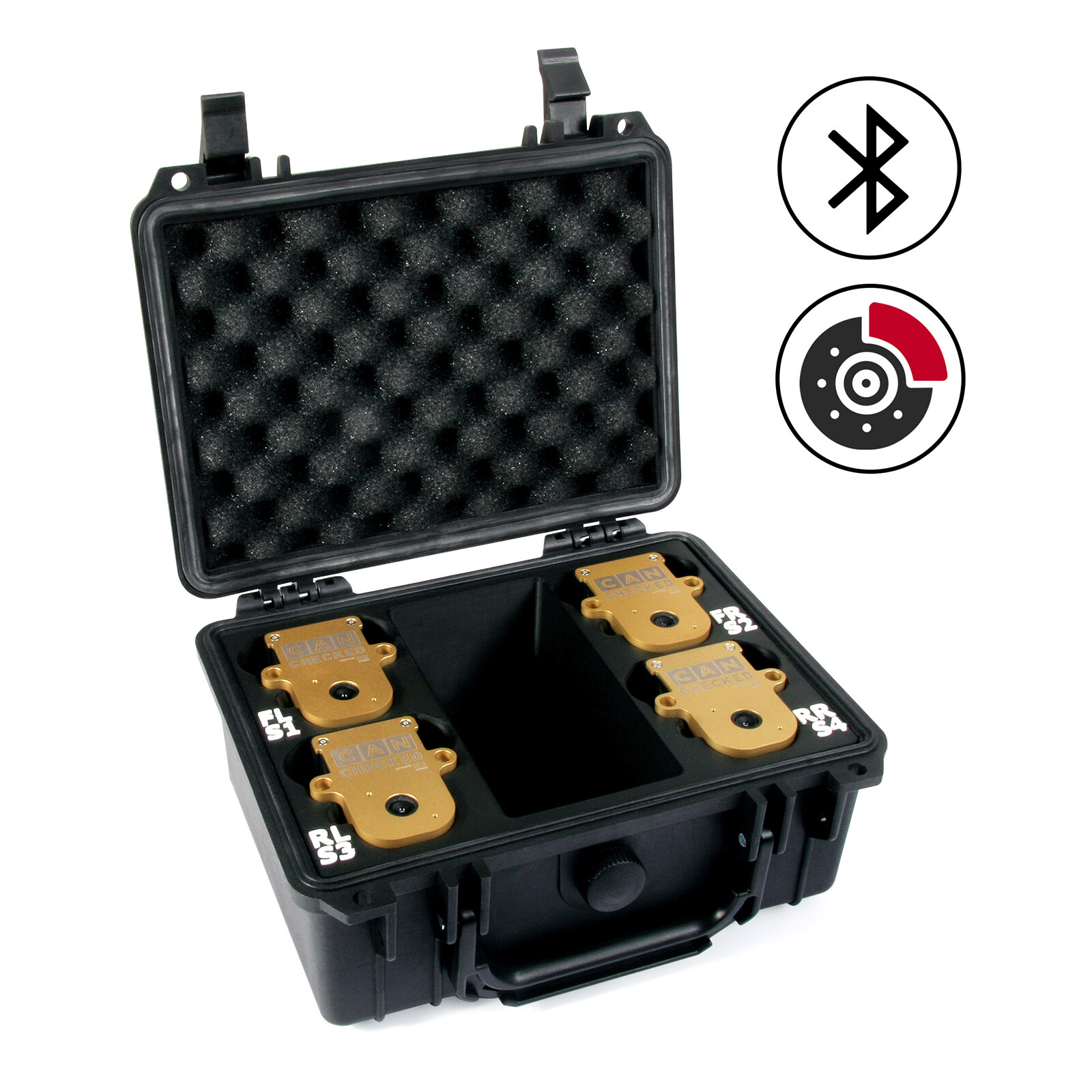

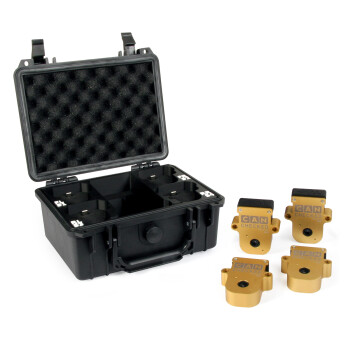

Scope of delivery:

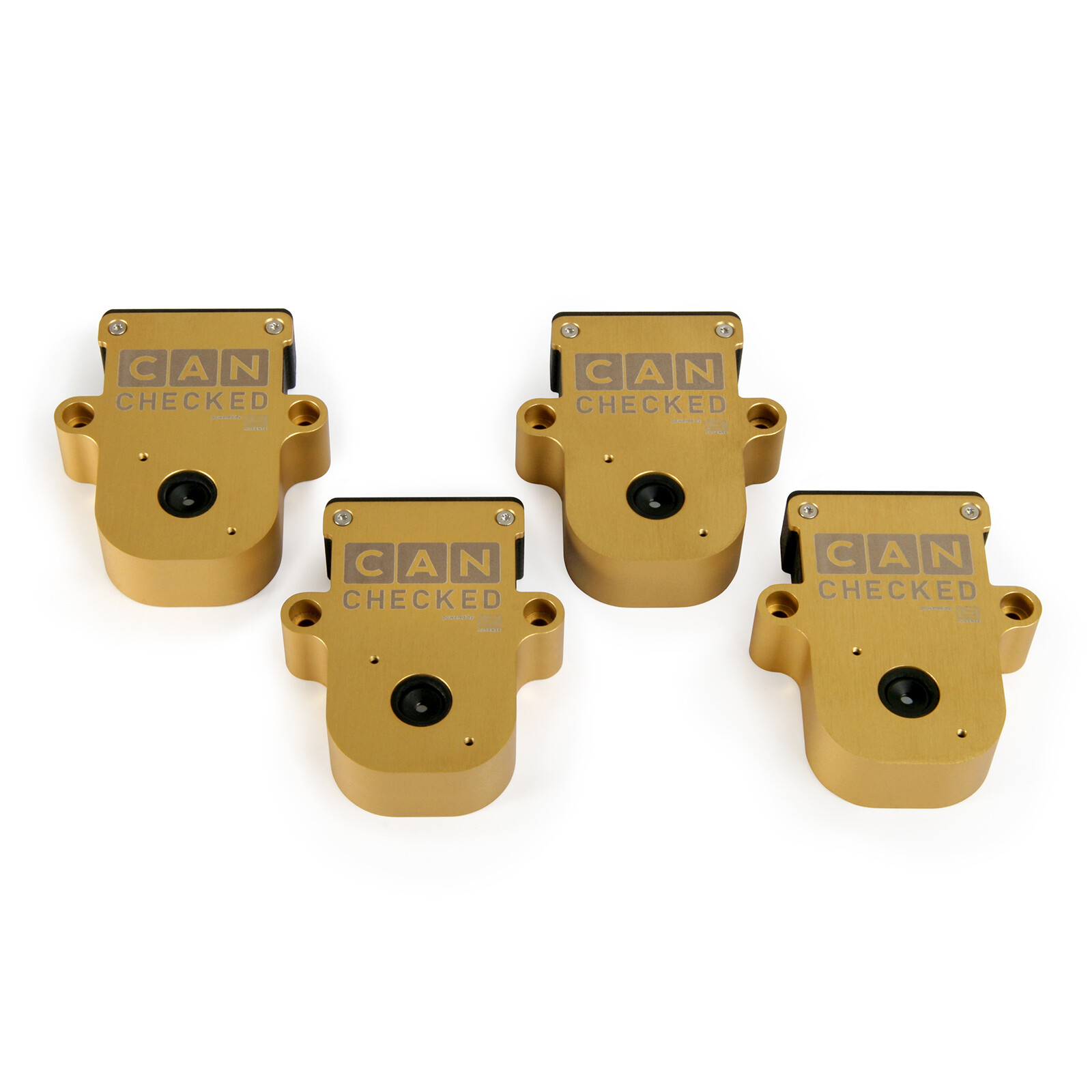

- 4x BMB01
Perfect for professional racing and performance testing, this Bluetooth temperature monitor set provides the insights you need to optimize brake performance. Our documentation makes integration into BLE applications seamless. Contact us to learn more!
- Availability: available
