MFA2.0 GEN2 for VW Golf MK1/2 (Type 17) (Cluster) MFA 2.0 GEN2

OLED MFA Multi-display compatible with all CAN-Bus control units and as Stand Alone

CANchecked MFA 2.0 GEN 2 freely programmable multi-display

With the vehicle-specific CANchecked MFA2.0 GEN2 for your Golf MK1/MK2, you always have all relevant values in view

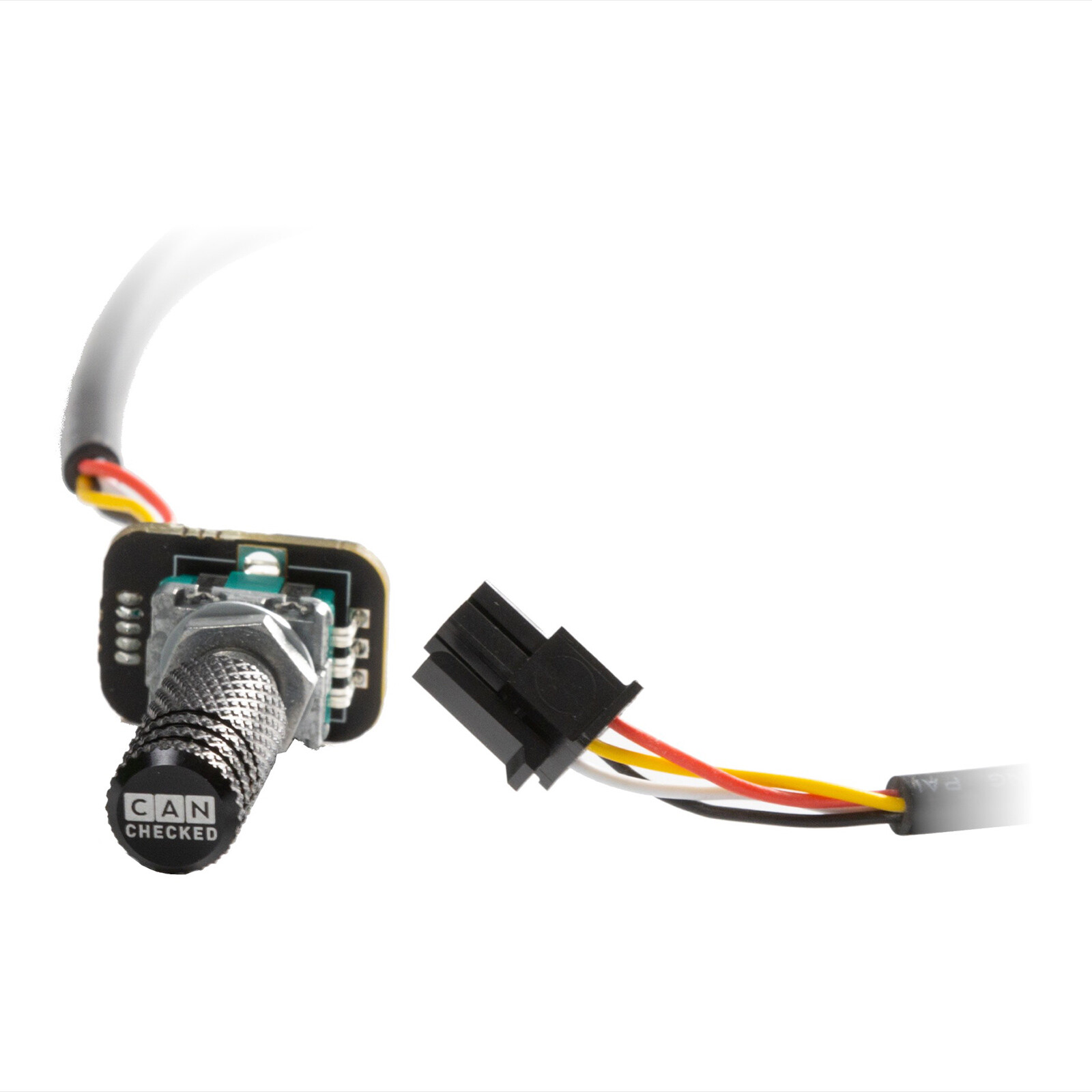

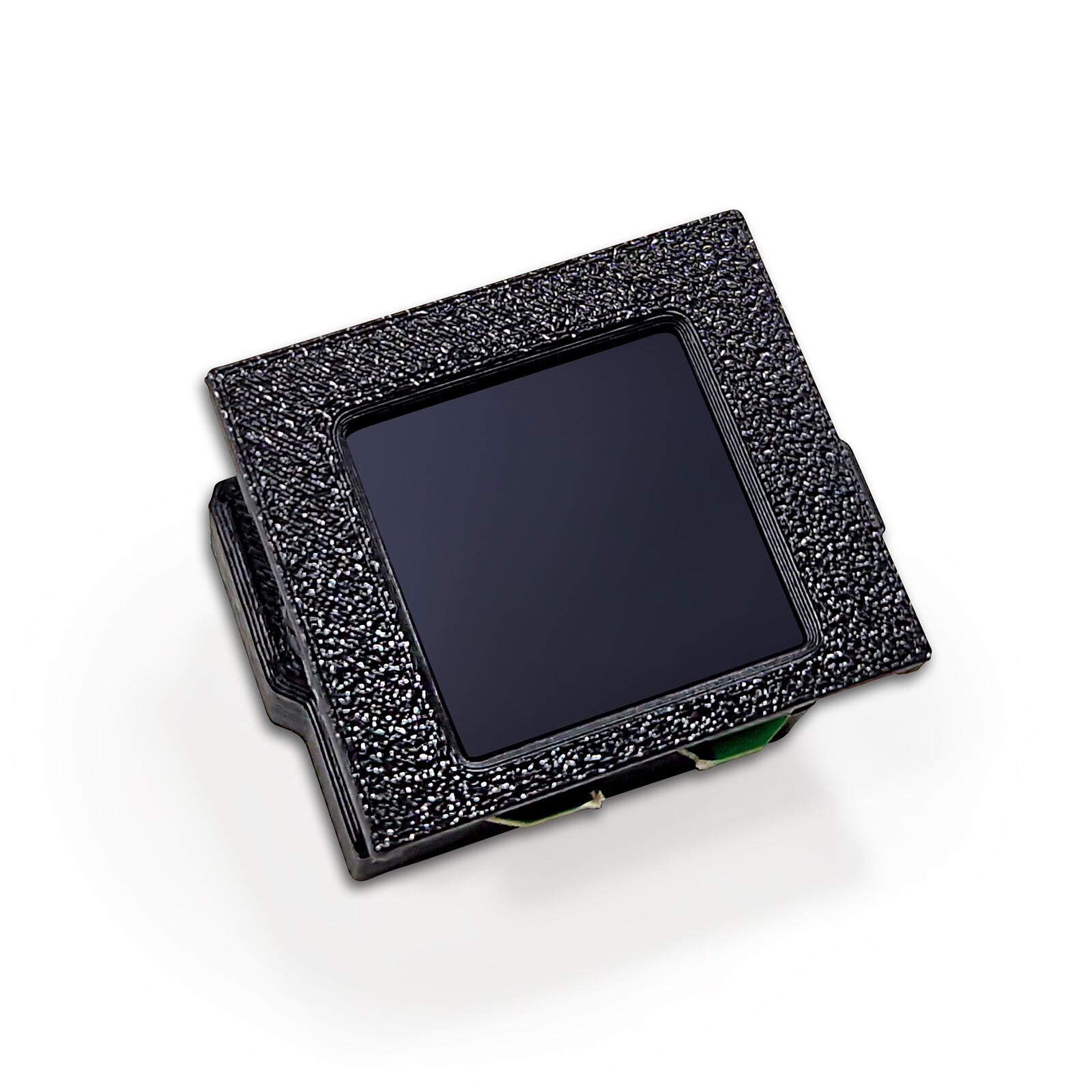

The MFA2.0 GEN2 is equipped with an OLED screen, which offers excellent readability even in direct sunlight. This kit comes with a vehicle-specific tachometer insert and connection kit. Operation is carried out with the rotary knob known from GEN1.

Key Features

• Seamless Integration: The MFA integrates OEM-style into your tachometer
• Shift Light: The LED on the front of the display can be used as a shift light and/or as a warning LED and can be freely configured
• Can Bus: Support for own Can Streams and Can Bus control units; from model year 2008, an OBD2 data query and in-depth values for VAG vehicles are possible
• WLAN: Connect with your smartphone or PC and perform the configuration via our web app
• Additional Inputs: Connect up to 6 analog sensors to the inputs or connect an ethanol sensor* directly to the display
• Preset Alarms: Pre-made warnings can be easily activated and customized. For example, get a large warning message when the exhaust temperature is over 900 degrees.
• Customization: Use your own start logo and color scheme to make it your MFD15 GEN2
• Online Logging*: Log your data with the smartphone or PC and save the log for later evaluation on your device
• Flex Fuel*: Display ethanol content and temperature on your display
• Can Switching*: Switch Can Switches via the buttons on your display and forward the measurement values of your analog inputs to the Can Bus

Various Views

Select up to eight pages from various pre-configured views and design your display to best suit you and your vehicle:

• Analog Pointer
• Double Value
• Gear Indicator
• 4-fold Values
• 6-fold Values
• Bar + Double Display
• Round Display
• Bar Chart (double horizontal)
• Performance Meter
• Bar Chart (1-6-fold vertical)
• Single Value

Configuration via Online Display Setup Software – oDSS

Brand new with our MFD15 GEN2 is access to the device via WLAN. Thus, you can set up the MFD15 GEN2 via smartphone or PC.

With the oDSS, you completely set up your display, can log values (license required), upload your own start image, and also update the display.

Supported Values

A popular customer question is: What values can I query from my control unit. The answer: ALL - your new MFD15 GEN2 is compatible with ISO 11898-2 and SAE J2284.

The control unit manufacturers themselves determine which values are sent via the CAN Bus interface. Here, documentation is important – possibly even in the form of a DBC file, which can be imported via our DSS. Of course, you as a customer can access our extensive list of already implemented control units. Depending on the manufacturer, up to 64 sensors can be queried.

Of course, OBD2 queries via Can Bus (11bit/29bit) are also implemented. Vehicle-specific protocols such as UDS or TP2 are also available.

Standard included:
– OBD2 – 11 and 29bit
– Ecumaster - Classic and Black
– VAG PQ34
– Haltech v2
– LinkECU
– MaxxECU
– Motec M1
– Emtron
– Megasquirt 2 and 3

If the desired control unit is not listed, you can download or request the appropriate TRI/TRX in our database.

For all VAG vehicles from model year 2008 (in individual cases also older), we offer in-depth data queries via protocol. Values such as oil temperature, boost pressure, transmission temperature, cylinder-selective ignition angle reduction, fuel high and low pressure, wastegate actuation, and much more can be queried and displayed.

Integrated LED

The internal LED can be used both as a shift light and as a warning LED.

As a shift light, you can assign up to 8 different colors and RPM limits as well as an RPM at which the shift light starts to blink.

When configured as a warning LED, you can assign a min and max value for each sensor. If the sensor is above the maximum value or below the minimum value, the LED blinks in the previously configured color. The shift light is deactivated during the warning period.

Scope of Delivery and Extensions

The scope of delivery of this vehicle-specific kit includes:

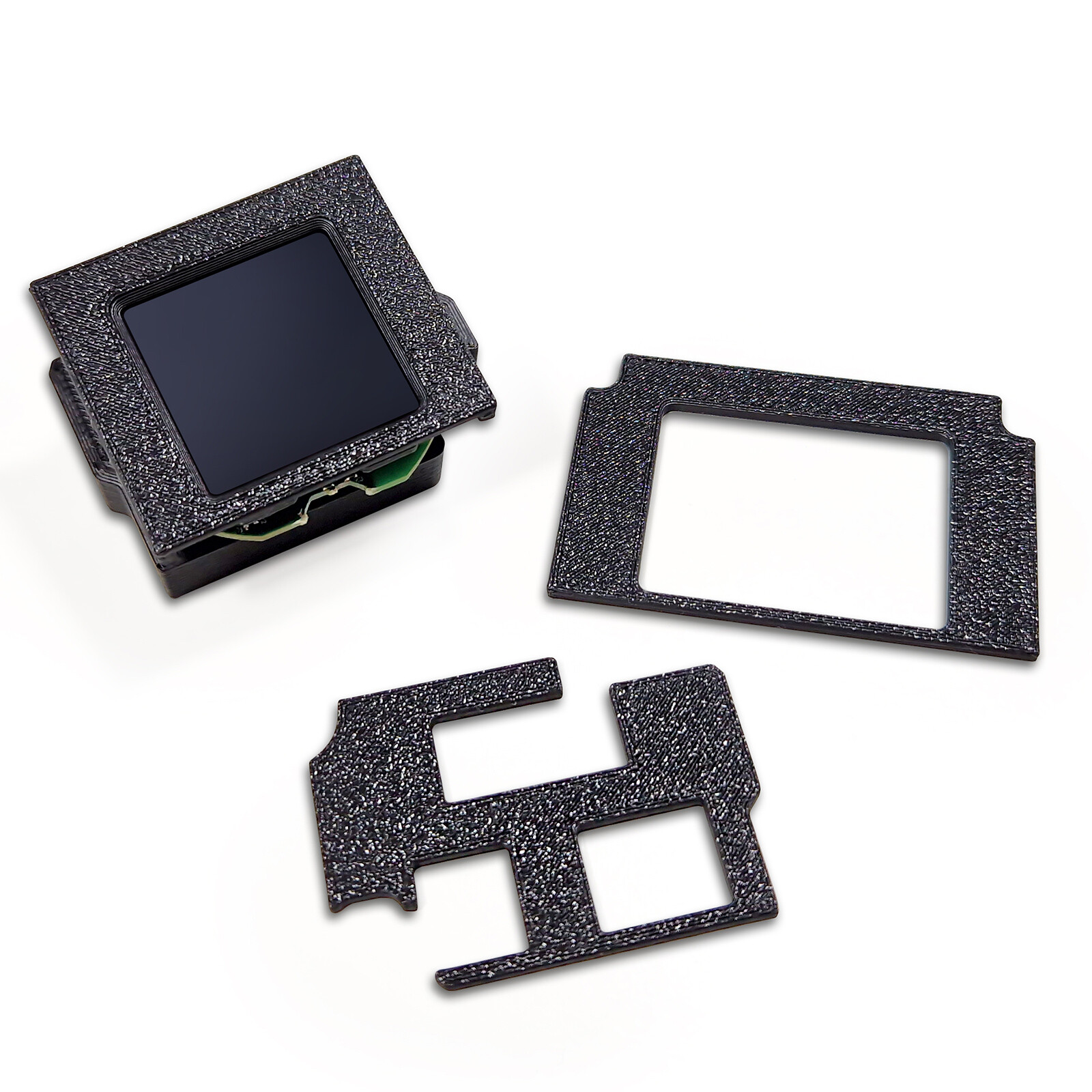

• MFA2.0 GEN2 data display in a vehicle-specific mounting frame for your OEM tachometer
• Quickstart Guide

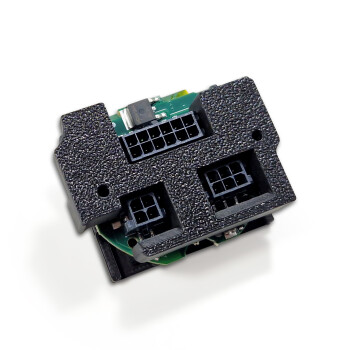

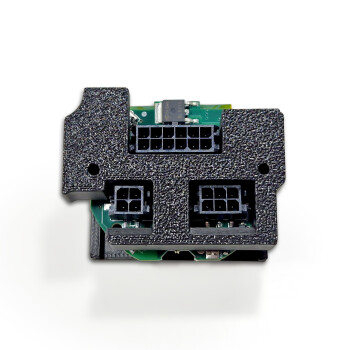

• Connector B (6-pin Molex)
• Connector C (12-pin Molex)
• Various pre-configured connection cables (length: 20 cm, purpose: power supply, Can Bus, analog inputs, 5V, sensor ground)
• Pins for self-crimping
• Two 1K resistors (as pull-up for connecting external NTC sensors)

Any sensors can be connected via the six analog inputs – we support both linear 0-5V and NTC sensors.

The characteristic curves of our in-house CANchecked sensors are stored in the display by default and work plug & play:

• AIN1: Temperature sensor (NTC01)
• AIN2: Converter for exhaust temperature probe type K (TCC01)
• AIN3: Pressure sensor 0-10 Bar (FLP01)
• AIN4: Boost pressure sensor 0-5.5 Bar (BST01)
• AIN5: not pre-configured
• AIN6: not pre-configured

You can use our pre-configured 4-pin AIN wiring harness for connection.

If you have the appropriate license*, you can also connect an ethanol sensor via a separate pin directly to the display.

Optional Accessories

• CC22100 CBD08 - eightfold Can Distribution Hub
• CC22780 ANC04 - fourfold AIN wiring harness 300cm
• CC22902 NTC01 - Temperature sensor for liquids 1/8"" NPT
• CC22903 TCC01 - Type K converter 0-1250°C
• CC22901 FLP01 - Pressure sensor 0-10 Bar (145psi) M10x1
• CC22900 BST01 - Pressure sensor 6.5 Bar relative (95psi)

*Additional Licenses

Live Logging of the MFD15 GEN2

With the additional license "Live Logging," your display can log the data of the sensors in the oDSS. You can then download the log as a file to your smartphone or PC.

All sensors are logged in the log (WARNING: for OBD and UDS only the currently displayed ones!). Select the sensors you want to display graphically.

Flex Fuel Ethanol Sensor directly on the MFD15 GEN2

With the additional license for the ethanol sensor, you connect a sensor directly to the display. You need a pull-up resistor (10K) between 5V and signal.
Now you can see both ethanol content and temperature and can also log these sensors.

Can Switching and AIN forwarding

With the additional license for Can Switching and AIN forwarding, you can switch Can Switches via the buttons on your display or the rotary knob and place the input voltages of your analog inputs on the Can Bus to also see them in your ECU.
