TMC04 - Tire Temperature Monitoring SET / wired
Technology from motorsport with CAN bus-based tire temperature measurement

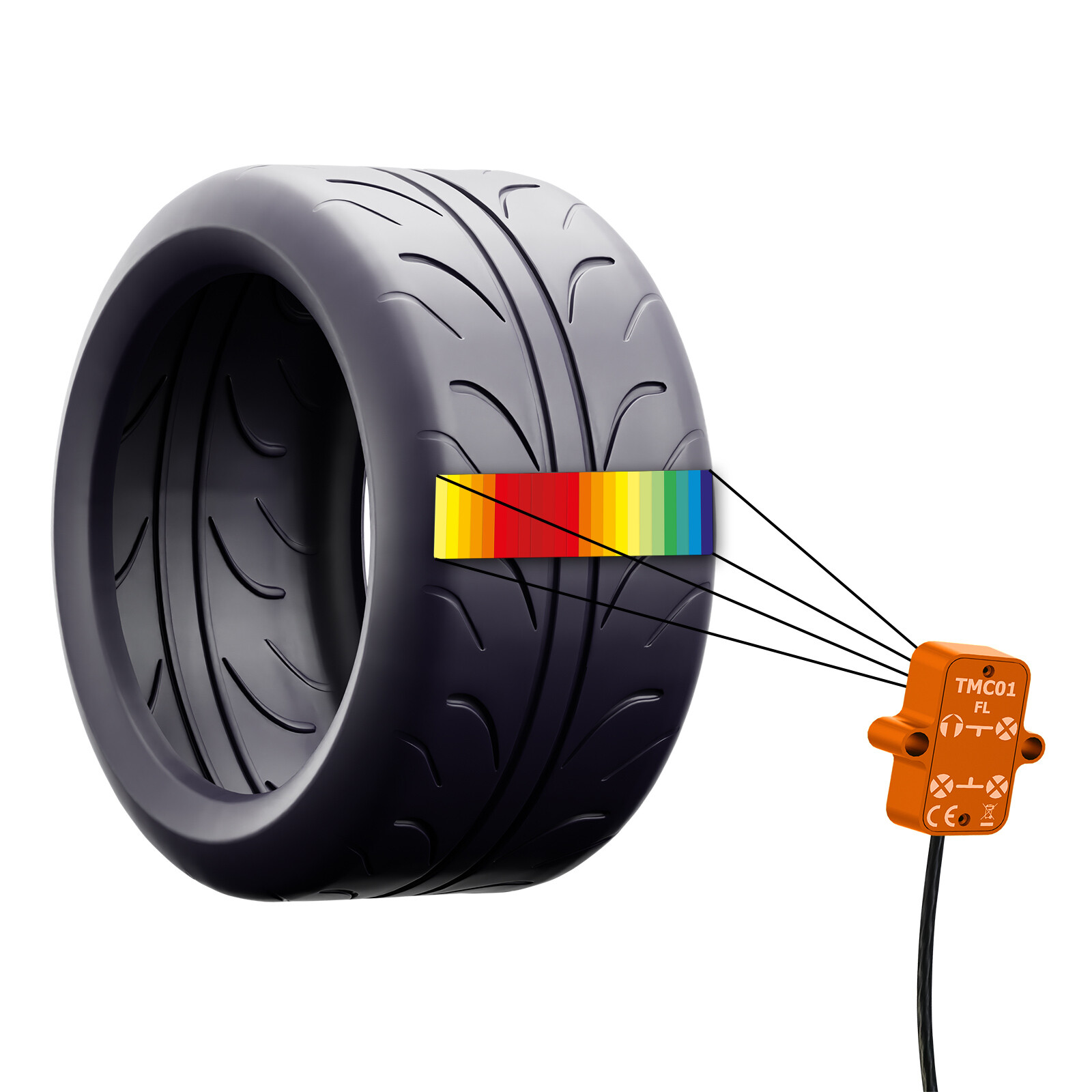

Sensor set for measuring tire temperature
Enhance your racing or high-performance setup with a comprehensive set of four precise, real-time tire temperature sensors. This set offers extensive insights across multiple measurement points, specifically developed for the stringent demands of motorsport environments.
Main Features
- Temperature Range: Each sensor operates from -40 to +300°C with ±1°C accuracy
- Multi-Channel Adjustment: Each sensor offers up to 16 configurable channels for customized data collection
- Field of View Options: 110° standard, optional 55° for focused measurements upon request
-
Compact and Robust Design:

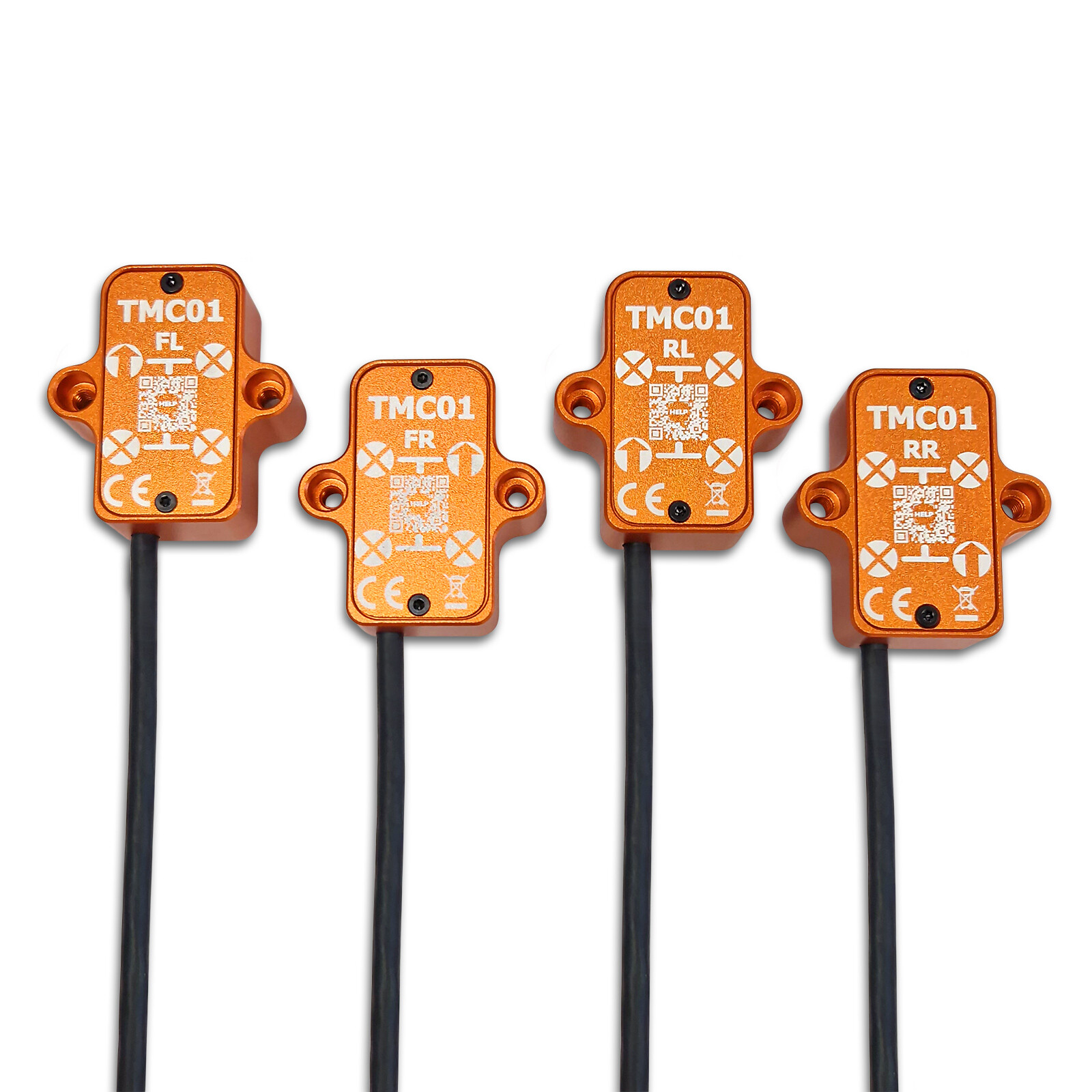

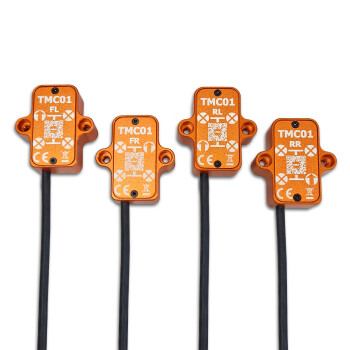

- Size: 45.5 x 25.5 x 12 mm per sensor
- Weight: 25g per sensor

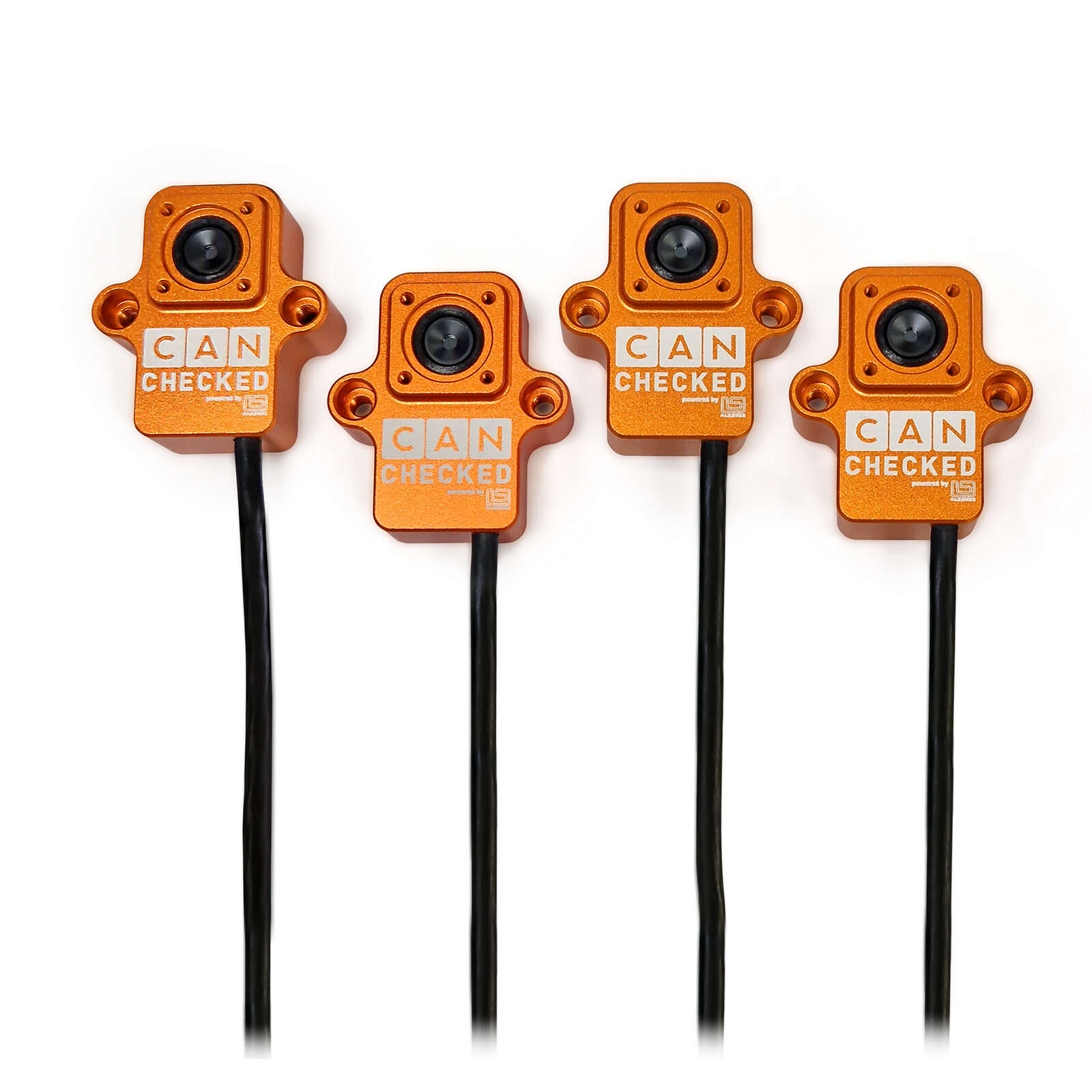

- Housing: Available in aluminum, IP66 protected for harsh environments
- Optional Protective Lens: Additional lens protection for increased durability and protection
- Flexible Power Input: Each sensor operates with 5–20 V and an adjustable update rate of up to 64 Hz
-
Seamless CAN Integration:
- Supports CAN 2.0A and 2.0B standards
- Adjustable bit rates and CAN termination
- Standard CAN-ID configurable for tire (0x310) or brake data (0x210) across the entire set
-
Data Accuracy:
- -200°C offset per sensor
- 0.1°C per bit resolution for high-precision measurements
-
Easy Installation:

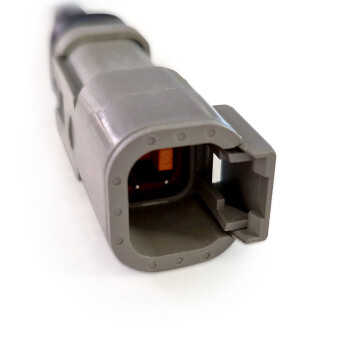

- Includes four 0.5 m AWG22 cables and DTM04-4P connectors for easy setup
- Built for Performance: IP66 protection rating ensures resistance to harsh environments

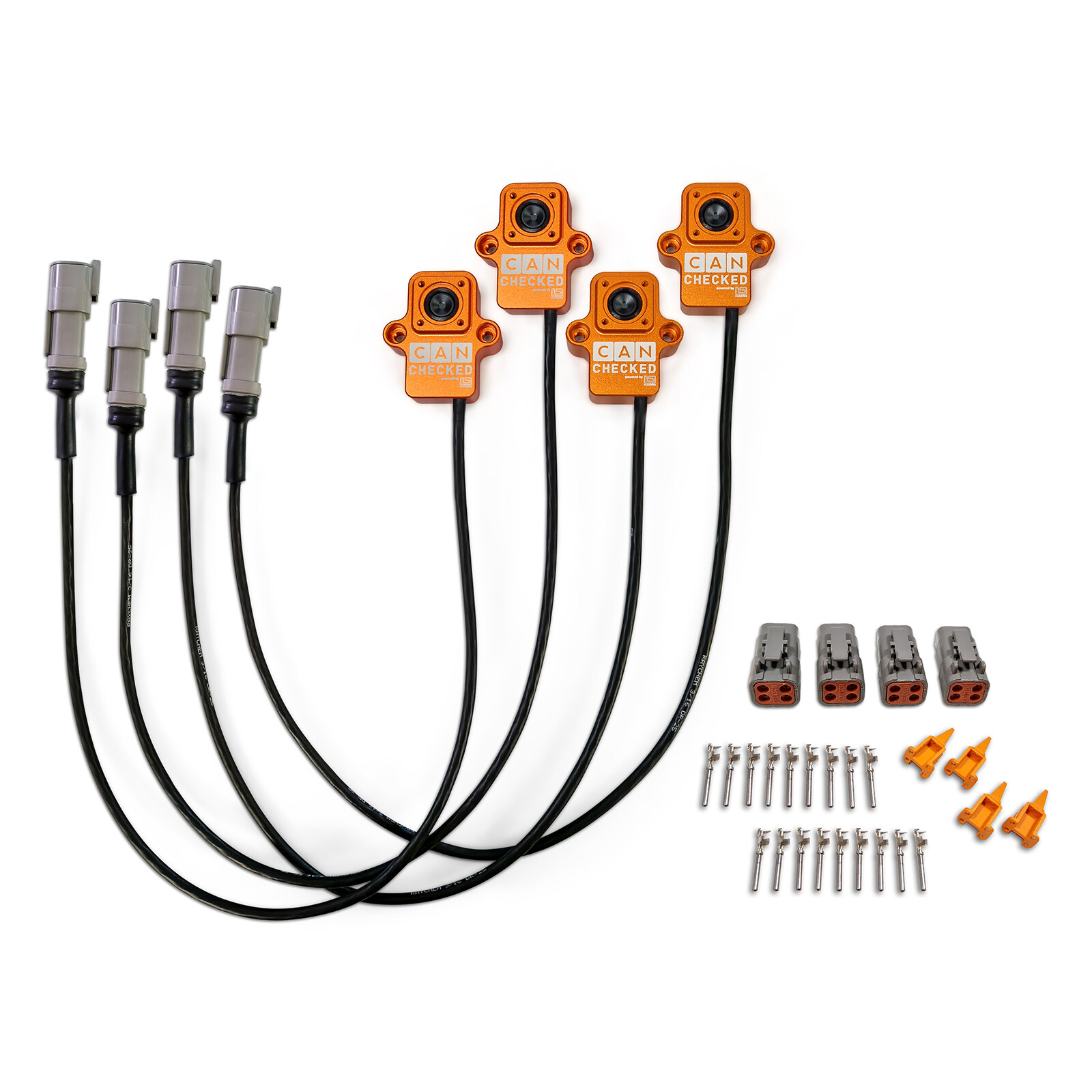

Scope of Delivery

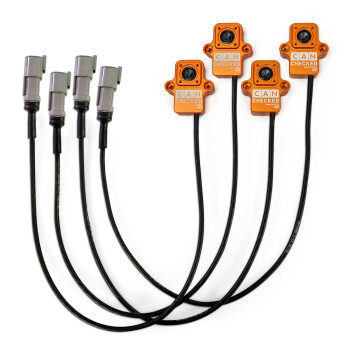

- 4x TMC01 with 0.5 m AWG22 cables and female DTM04 connectors
- 4x male DTM connectors
Conclusion
Ideal for racing and performance testing, this set of four sensors enables data-driven optimization of handling, braking, and tire management.
- Availability: available
