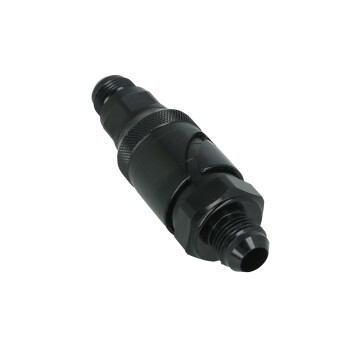

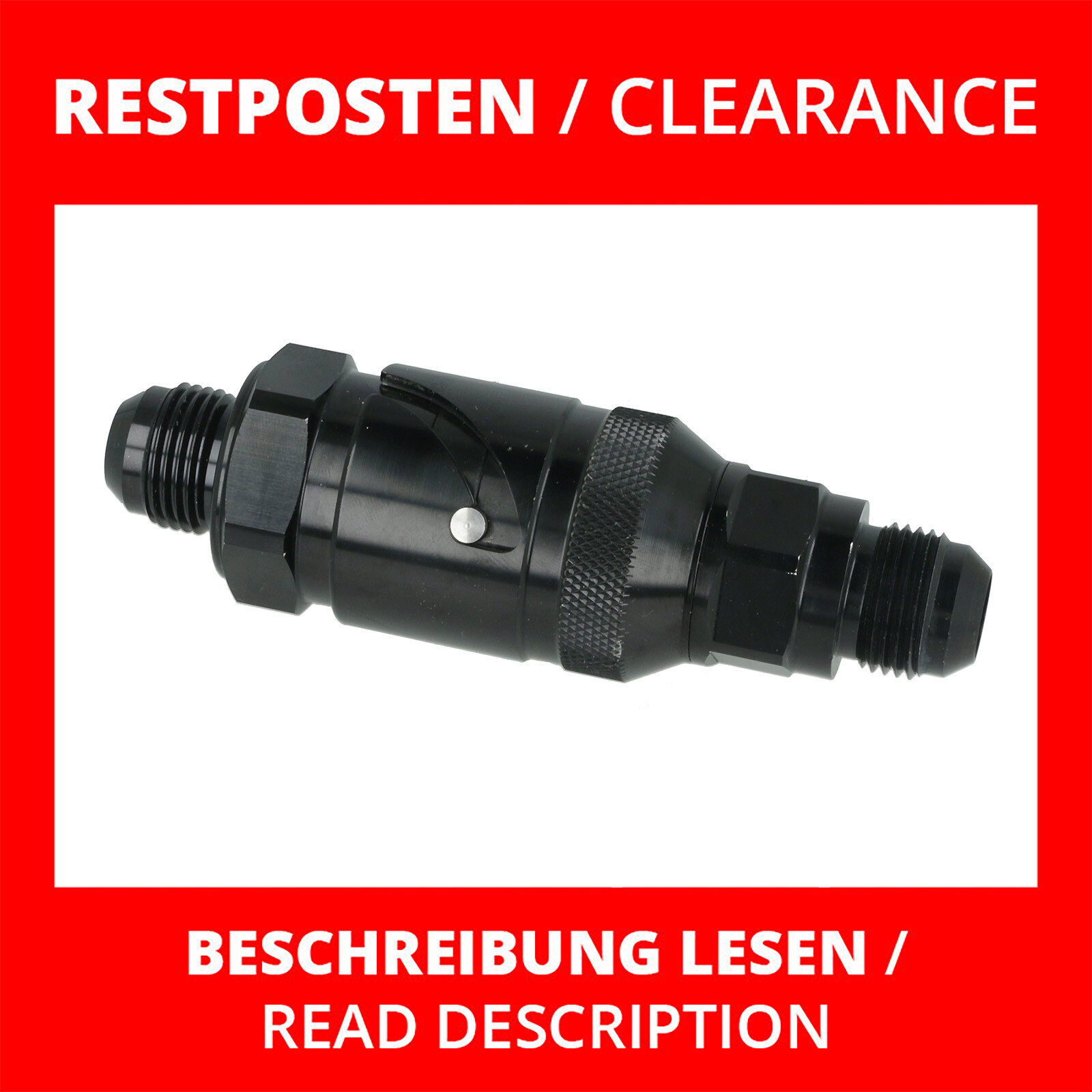

Clearance -10 AN / Dash 10 Quick Coupling Aluminum - black
CLEARANCE REASON: Display piece, has installation and storage marks.
Important!
Clearance items are excluded from return under the right of withdrawal! Please consider this when placing your order!
Only while supplies last!
------------------------
Quick release of Dash fittings / lines with spill protection
Quick coupling completely made of aluminum, shut-off on both sides
Note: The couplings are shut-off on both sides. The system does not need to be vented after disconnecting and reconnecting.
Application area: Fuel, oil, coolant
The quick-release fittings with spill protection are useful wherever the line may need to be disconnected frequently and quickly. Particularly useful for oil, coolant, and fuel lines. The quick coupling fittings are shut-off on both sides, preventing fluid leakage even when disconnected! Both connection sides of the quick coupling have a male Dash connection.
With our hose fittings and associated hydraulic hoses, oil, water, and fuel lines can be custom-made. With unique screw connections, the lines are tight and pressure-resistant up to at least 35 bar without pressing tools. We recommend -4 AN for oil supply lines (fits our GT-R supply adapters and the integrated EFR reducer), -10 AN for oil return lines (fits our return flanges with thread). Choose fuel and water lines according to the specifications of connections or fuel pumps.
Quick release thread size connection: -10 AN / Dash 10
Material: Aluminum
Color: Black anodized
Max. operating pressure:
- Dash 3: 200 bar
- Dash 4: 160 bar
- Dash 6: 80 bar
- Dash 8: 80 bar
- Dash 10: 50 bar

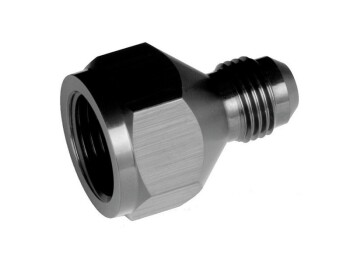

For easy installation in all application areas, we offer a variety of adapters. This also allows for later extension or other expansion of the lines without any problems.
- Availability: available
