Clearance - Motorsport Fan Brushless / Suction / 40cm (16") / 2310 CFM

CLEARANCE REASON: Fan wheel runs slightly uneven. May be improved by repositioning the balancing elements on the blades or repositioning the wheel on the motor.

Only while stocks last.

Important!
Clearance items are excluded from return under the right of withdrawal! Please consider this when placing your order!

----------------

Brushless High-Performance Fan for Radiators, Oil Coolers, or Intercoolers

Tested in Nascar, Soft-Start, super light, efficient, slim design

SRP R20016FC-P - 2310 CFM 16" High-Performance Motorsport Cooling Fan. Unlike SPAL or Mishimoto fans, all Steele Racing fans are equipped with a brushless motor and are therefore significantly more powerful!
The SRP high-performance fan is an on- and off-road system suitable for all weather conditions and provides protection against sand, mud, water, fog, and chemicals. The power and control electronics are integrated into the sealed motor to ensure longer life and reliability. The Steele Racing fan is completely self-contained and designed for turnkey operation on any vehicle. Thanks to this technology, any OEM radiator, intercooler, or oil cooler fan can be replaced with a brushless Steele Racing Motorsport fan. The motor is equipped with curved and slotted blades to maximize performance and efficiency. It was specially developed with high ferrite magnets and state-of-the-art sensorless drives for motorsport use. Unlike other manufacturers, Steele sets new standards with the programming of a soft-start function in the motors of the R200 series. It ensures the longevity and reliability of your motor AND protects your electrical system.

Short Facts:

• NASCAR-approved
• Brushless
• On-Off with Soft Start, PWM or sensor-controlled
• State-of-the-art fan motor blade technology
• Super light thanks to slim motor design
• Soft-start function
• More efficiency due to less power consumption than other competitor fans
• High temperature resistance
• Works in demanding environments
• IP rating: IP68
• Duty cycle: 50,000 hours

Technical Data:

• Height: 16.33"
• Width: 15.47"
• Depth: 3.54"
• Min. (low) CFM: 1950
• Max (high) CFM: 2310
• Current draw: 15.2A @ 13.5V
• 10 - 16 VDC / Variable speed
• Lightweight: 4.5 lbs (total weight)
• Operating temperature range: -40 - 285F (-40 - 140C)

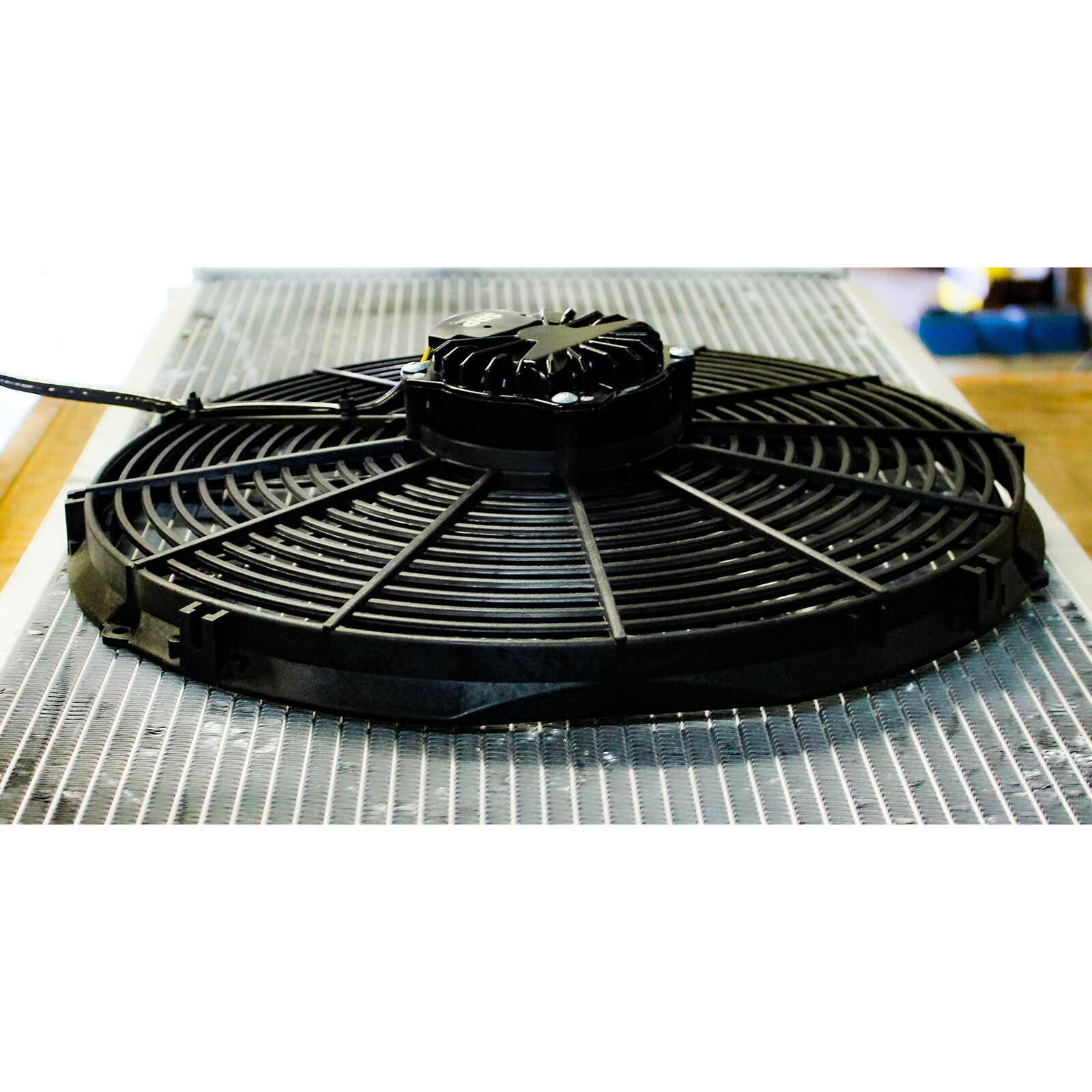

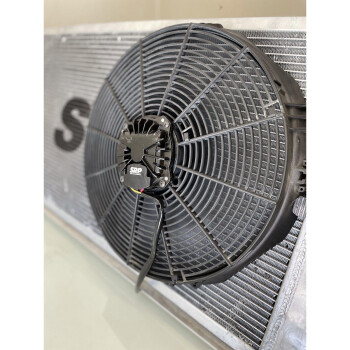

• Fan design: Suction (i.e., it is installed behind the radiator)

Optional Accessories: PWM VSpeed - Variable speed controller for SRP fans with PWM control. You can find more high-performance fans from Steele Racing Products in our webshop.
