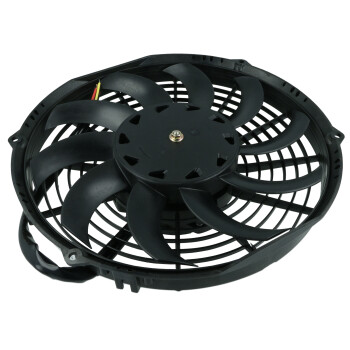

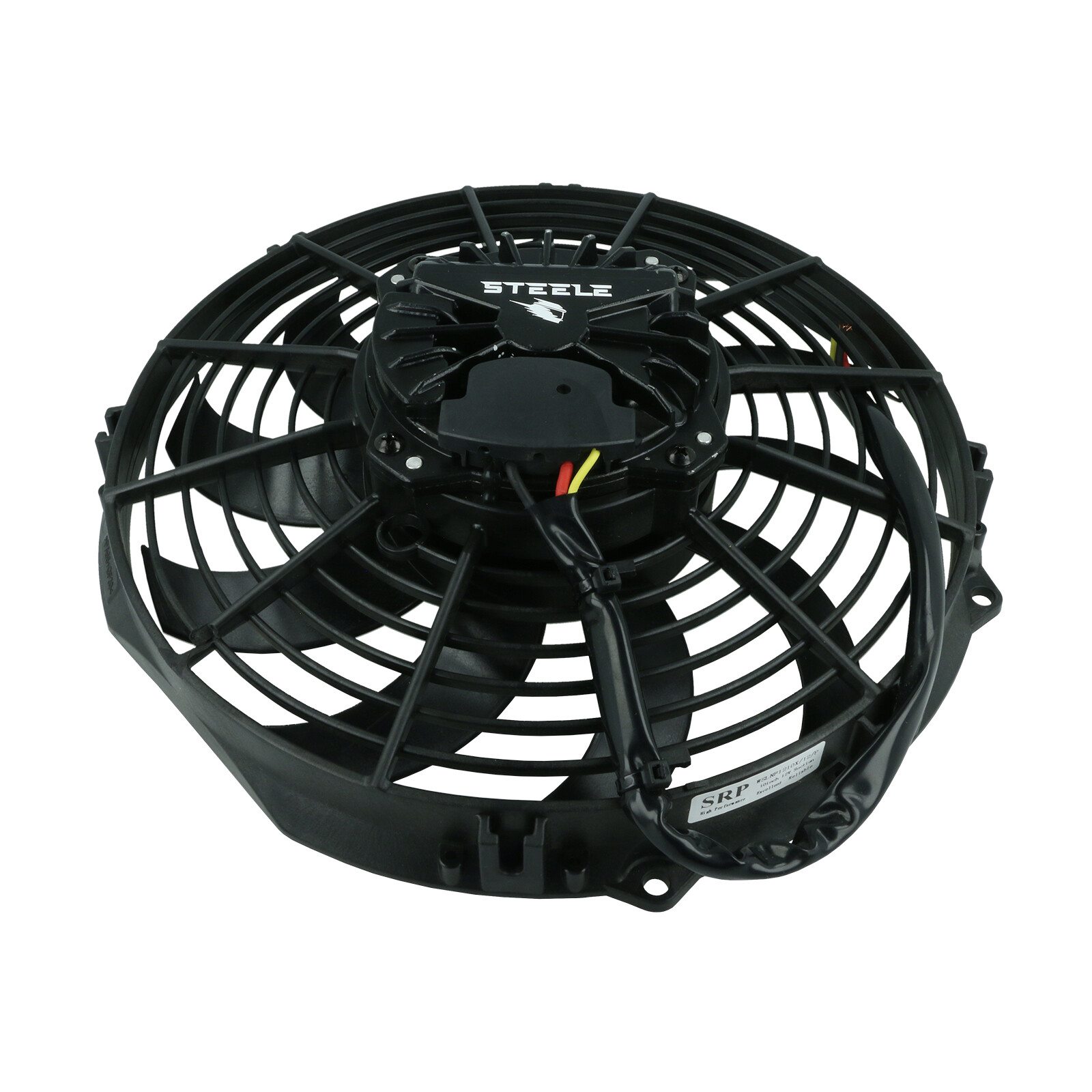

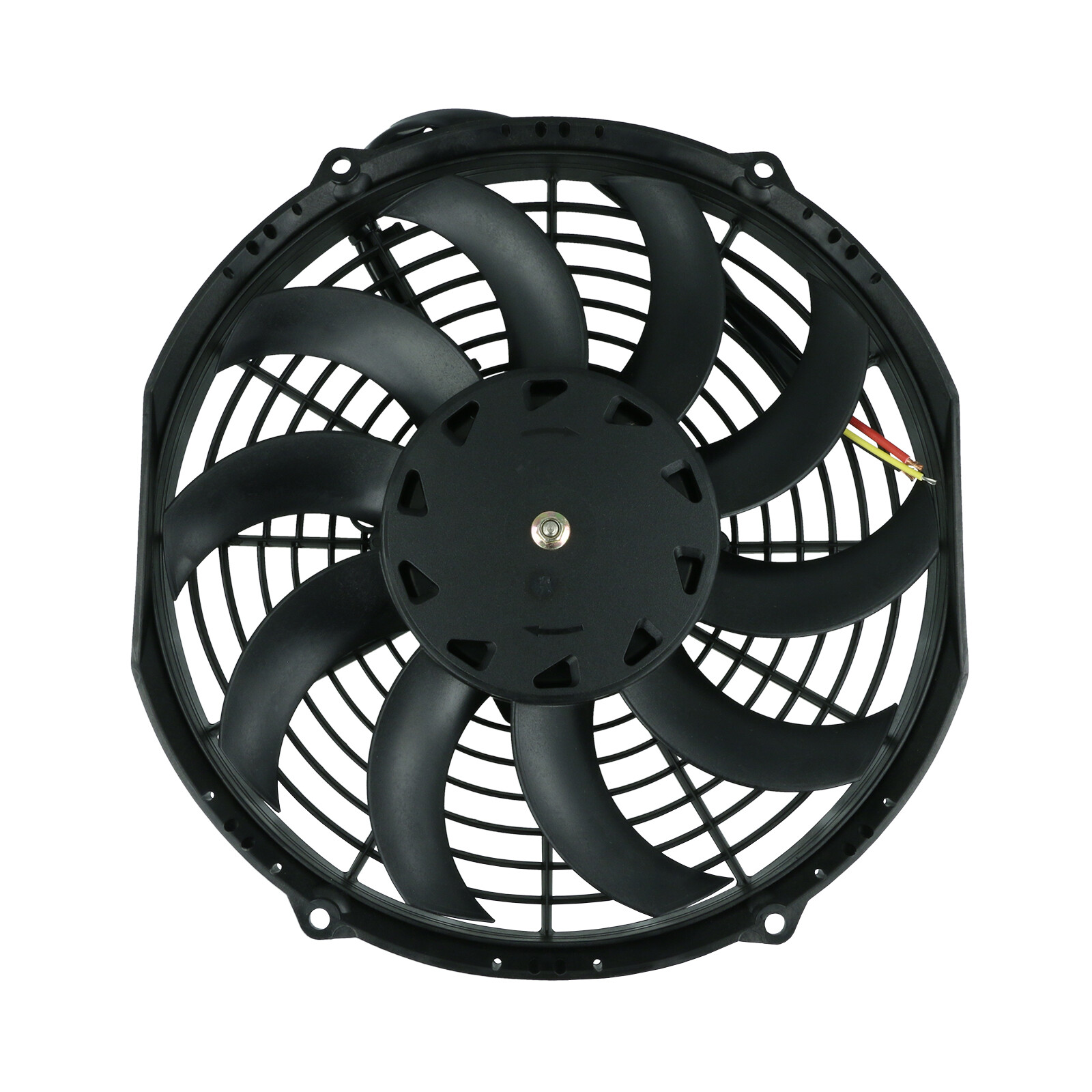

Clearance-Motorsport Fan brushless / suction / 40cm (16") / 2310 CFM / PWM Control

CLEARANCE REASON: Fan wheel runs slightly unbalanced. May be improved by repositioning the balancing elements on the blades or repositioning the wheel on the motor.

Only while supplies last.

Important!
Clearance items are excluded from return under the right of withdrawal! Please consider this when placing your order!

--------------------------------------

Brushless high-performance fan for water coolers, oil coolers, or intercoolers

Nascar tested, soft-start, super light, efficient, slim design

SRP R20016FC-P - 2310 CFM 16" High-performance Motorsport Cooler Fan. Unlike SPAL or Mishimoto fans, all Steele Racing fans are equipped with a brushless motor and are therefore significantly more powerful!
The SRP high-performance fan is an on- and off-road system suitable for all weather conditions and provides protection against sand, mud, water, fog, and chemicals. The power and control electronics are integrated into the sealed motor to ensure longer life and reliability. The Steele Racing fan is completely self-contained and designed for turnkey operation on any vehicle. Thanks to this technology, any OEM cooler, intercooler, or oil cooler fan can be replaced with a brushless Steele Racing Motorsport fan. The motor is equipped with curved and slotted blades to maximize performance and efficiency. It was specially developed with high ferrite magnets and state-of-the-art sensorless drives for motorsport use. Unlike other manufacturers, Steele sets new standards with the programming of a soft-start function in the motors of the R200 series. It ensures the longevity and reliability of your motor AND protects your electrical system.

Short Facts:

• NASCAR approved
• Brushless
• On-off with soft start, PWM or sensor-controlled
• State-of-the-art fan motor blade technology
• Super light thanks to slim motor design
• Soft-start function
• More efficiency due to less power consumption than other competitor fans
• High temperature resistance
• Works in demanding environments
• IP rating: IP68
• Duty cycle: 50,000 hours

PWM Sensor Control:
The built-in PWM signal provides proportional control of the fan speed through your PDM. PWM range between 50-200HZ (15% start to 100% full speed). Integrated fail-safe PWM input that runs the fan at full speed in case of communication loss.

Technical Data:

• Height: 16.33"
• Width: 15.47"
• Depth: 3.54"
• Min. (low) CFM: 1950
• Max (high) CFM: 2310
• Current draw: 15.2A @ 13.5V
• 10 - 16 VDC / Variable speed
• Lightweight: 4.5 lbs (total weight)
• Operating temperature range: -40 - 285F (-40 - 140C)
• Fan design: Suction (i.e., it is installed behind the cooler)

Optional additional parts: PWM VSpeed - Variable speed controller for SRP fans with PWM control. You can find more high-performance fans from Steele Racing Products in our webshop.
