Competition Intercooler Kit Audi SQ5 3,0TDI
Brand: Audi
Type: Audi SQ5
Model: Audi SQ5 8R
Competition Intercooler Kit for
Audi SQ5 3,0TDI 8R 230KW/313PS 2012-2015 (CGQB)
Audi SQ5 3,0TDI Competition 8R 240KW/326PS 2015- (CVUB)
Audi SQ5 3,0TDI Plus 8R 250KW/340PS 2015- (CVUB)
Audi Q5 3,0TDI 8R 180KW/245PS 2011-2014 (CDUD)
Audi Q5 3,0TDI 8R 190KW/258PS 2013- (CTBA)

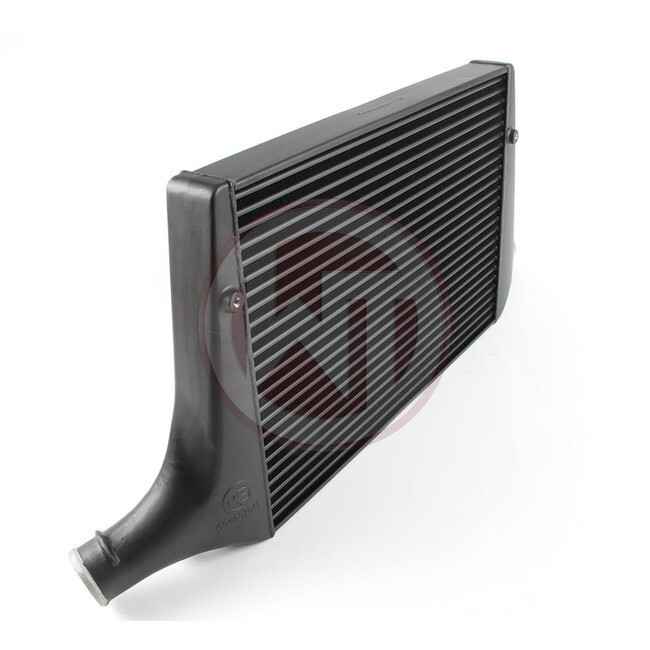

The high performance intercooler has the following core dimension (610mm x 440mm x 65mm) and thus offers a 122% larger cooling surface and 92% more charge air volume compared to the original intercooler. The newly developed Competition Core granted the adjacent components, for example watercooler, sufficient airflow and is also very light. The endtanks of the intercooler are made of cast aluminum and have been optimized under flow analyzes in the CAD system. With the help of additional air baffles, inside inlet, providing for a uniform filling of the intercooler. The result is excellent cooling properties with minimum back pressure. So this kit is just the right thing for racing. The intercooler weighs only 9,1 kg. It is mounted to the original mounting points and is easy to perform (1:1 exchange). Optimum cooling of the charged air with a clear increase in performance! 67mm In and Outlet.
OEM Intercooler: Cooling Surface 1207,5cm² / Charge-Air-Volume 9,05L
WT EVO 2 Competition: Cooling Surface 2684cm² / Charge-Air-Volume 17,4L

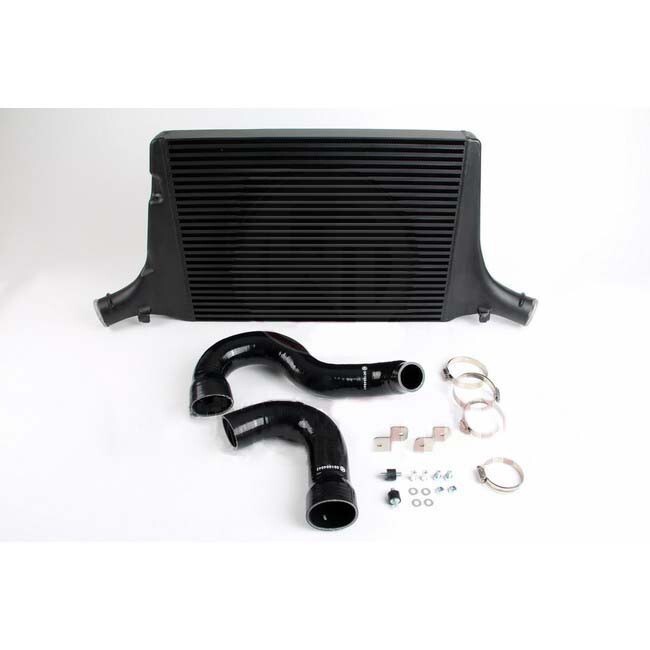

packing list:
1 intercooler
2 silicone hoses
1 mounting material
1 installation instruction
- Vehicle manufacturer: Audi
- Availability: order on customer request
