Competition intercooler EVO 3 Audi RS3 8V

EVO3 intercooler upgrade for Audi RS3 8V with ACC

Wagner Tuning performance intercooler for Audi RS3 8V with ACC

Brand: Audi
Type: Audi RS3
Model: Audi RS3 8V

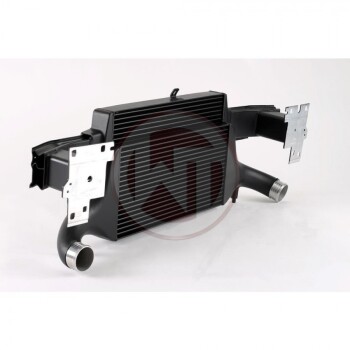

Competition Intercooler Kit EVO3 for Audi RS3 8V

Fits for:
Audi RS3 8V Sportback 270KW/367PS 04/201504/2016
Audi RS3 8V Sportback/Sedan 294KW/400PS 08/2017+

The high performance intercooler has the following core dimension (515mm x 367mm x 95mm = 16.500cm³) and thus offers a 84% larger cooling surface and 101% more charge air volume compared to the original intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties. This Audi RS3 intercooler uses our award winning WAGNERTUNING Competition Intercooler Core, which is made specifically for this application. Constructed of the highest quality Tube and Fin intercooler cores with inside turbulators combined with cast aluminum endtanks optimized by CFD for best possible internal airflow. With the help of additional air guides, inside inlet, a uniform filling of the intercooler is provided. The result is excellent cooling properties with minimum pressure drop. So this kit is just the right thing for racing. The intercooler and the original crossmember form a stable unit and weighs only 11.7 kg. It is mounted to the original mounting points and is easy to perform (1:1 exchange). Optimum cooling of the charged air with a clear increase in performance! 68mm In and Outlets.

OEM intercooler:
cooling surface 1024cm² / charge-air-volume 8,2L

WT EVO 3 Competition:
cooling surface 1890cm² / charge-air-volume 16,5L

Comment:
- only for racing / not street legal
- optional available brackets for vehicles with adaptive cruise control ACC

Packing list:
1 intercooler including crossmember
1 mounting material
1 installation instruction
