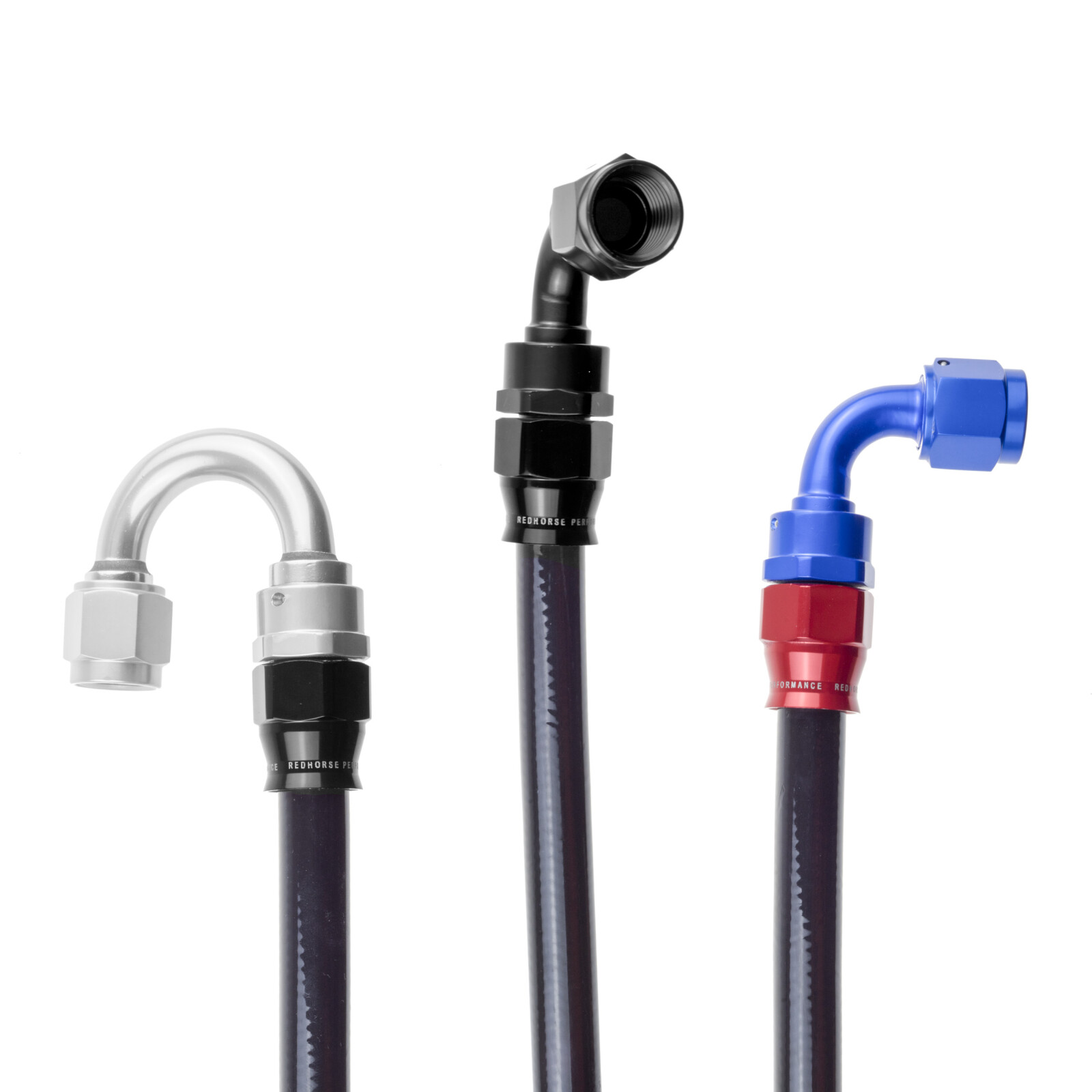

-10 AN / Dash 10 PTFE hose with conductive core

PTFE conductive core hose with black polyurethane cover

High quality PTFE oil, water and fuel lines

Sold 30cm / piece (example: quantity 4 = 4 pieces = 120cm in one piece)

Note: The brass ferrule must be replaced after each disassembly of a PTFE fitting! Otherwise, it can come to leaks!

Harness the power of PTFE with our RHP 302 and 303 series PTFE high performance hoses. Engineered for use with our 1200 Series Reusable PTFE hose ends. The RHP 302 and 303 series hoses are equipped to handle extremely high pressure and are fully compatible with all types of fuel. The 302 and 303 Series hoses features a stainless steel weave over a custom-designed smooth bore dual-layer conductive core PTFE inner-tube that eliminates the risk of electro-static discharge. The 302 Series have an additional black polyurethane wrap, which protects against braid wear and looks gerat when compared with our fittings.

NHRA accepted

With our PTFE fittings and associated PTFE hydraulic hoses you can make oil-, water- and fuel-lines. We recommend -4 AN for oil - supply lines (fits on our GT-R feed adapters and the integrated EFR Reducers), -10 AN for oil return lines (fits on our return flanges with thread). Fuel and water pipes you choose the best according to the specifications of connections or fuel pumps.

Fittings called "swivel" are still fully rotatable after installation. This is necessary for easy installation and often not available by cheap sellers. We recommend depending on the application to make at least one side rotatable.

For threaded connections: Dash 10 / -10 AN / 7/8x14"
Inner diameter: 12,70 mm
Outside diameter: 17,30 mm
Max. working pressure: 100 bar
Burst pressure: 410 bar
Min. radius: 240 mm
Min. temperature: -53°C
Max. temperature: 232°C
Suitable for: Petrol, oil and air
Structure: With internal PTFE conductive core, stainless steel braid and black polyurethane cover
Colour:black

For trouble-free installation in all application areas, we offer a variety of adapters. Thus even a later extension or enhancement of lines is possible without any problems.
