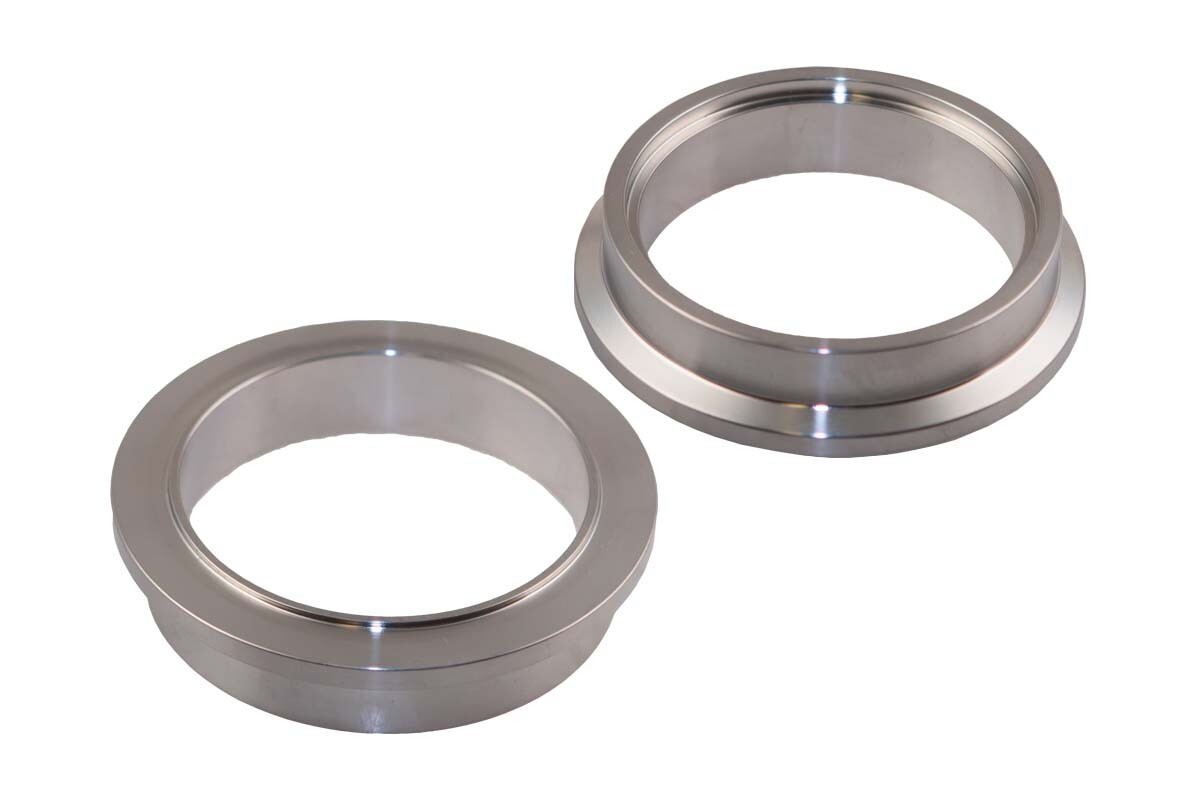

Flange V-Band (inlet) G25 / G30 turbine housings

Stainless steel manifold flange for Garrett V-Band Ni-Resist turbine housings

Garrett V-Band flange for Garrett G25-550 / G25-660 / G30-660 / G30-770 / G30-900 exhaust housings

High-quality stainless steel V-Band flange (inlet) 60mm (2,35"), fits for the brand new Garrett G25-550 / G25-660 / G30-660 / G30-770 / G30-900 single scroll V-Band tubrine housings. This V-Band ring is required if you like to fit an original Garrett V-Band Ni-resist exhaust housing on a turbo manifold / collector. The flange will be welded on the collector and mounted with the stainless steel V-Band clamp (826466-0001). This V-Band ring is CNC maschined from heat resistant stainless steel and very good weldability.

Application: Inlet of the turbine housing to manifold side

Material: Stainless steel

Fits for the turbine housings (inlet / manifolde side):
G25-550 740902-0068
G25-550 740902-0069
G25-550 740902-0076
G25-550 740902-0077
G25-550 740902-0073 - Reverse
G25-550 740902-0074 - Reverse
G25-550 740902-0078 - Reverse
G25-550 740902-0079 - Reverse

G25-660 740902-0068
G25-660 740902-0069
G25-660 740902-0076
G25-660 740902-0077
G25-660 740902-0073 - Reverse
G25-660 740902-0074 - Reverse
G25-660 740902-0078 - Reverse
G25-660 740902-0079 - Reverse

G30-660 740902-0086
G30-660 740902-0087
G30-660 740902-0088
G30-660 740902-0089
G30-660 740902-0096 - Reverse
G30-660 740902-0097 - Reverse
G30-660 740902-0098 - Reverse
G30-660 740902-0099 - Reverse

G30-770 740902-0086
G30-770 740902-0087
G30-770 740902-0088
G30-770 740902-0089
G30-770 740902-0096 - Reverse
G30-770 740902-0097 - Reverse
G30-770 740902-0098 - Reverse
G30-770 740902-0099 - Reverse

G30-900 740902-0086
G30-900 740902-0087
G30-900 740902-0088
G30-900 740902-0089
G30-900 740902-0096 - Reverse
G30-900 740902-0097 - Reverse
G30-900 740902-0098 - Reverse
G30-900 740902-0099 - Reverse

Fits for complete turbocharger (inlet / manifold side):
G25-550 871389-5002S
G25-550 871389-5003S
G25-550 871389-5004S
G25-550 871389-5005S
G25-550 871390-5002S - Reverse
G25-550 871390-5003S - Reverse
G25-550 871390-5004S - Reverse
G25-550 871390-5005S - Reverse

G25-660 871389-5008S
G25-660 871389-5009S
G25-660 871389-5010S
G25-660 871389-5011S
G25-660 871390-5008S - Reverse
G25-660 871390-5009S - Reverse
G25-660 871390-5010S - Reverse
G25-660 871390-5011S - Reverse

G30-660 880697-5001S
G30-660 880697-5002S
G30-660 880697-5003S
G30-660 880697-5004S
G30-660 880698-5001S - Reverse
G30-660 880698-5002S - Reverse
G30-660 880698-5003S - Reverse
G30-660 880698-5004S - Reverse

G30-770 880697-5008S
G30-770 880697-5009S
G30-770 880697-5010S
G30-770 880697-5011S
G30-770 880698-5007S - Reverse
G30-770 880698-5008S - Reverse
G30-770 880698-5009S - Reverse
G30-770 880698-5010S - Reverse

G30-900 880697-5015S
G30-900 880697-5016S
G30-900 880697-5017S
G30-900 880697-5018S
G30-900 880698-5013S - Reverse
G30-900 880698-5014S - Reverse
G30-900 880698-5015S - Reverse
G30-900 880698-5016S - Reverse
