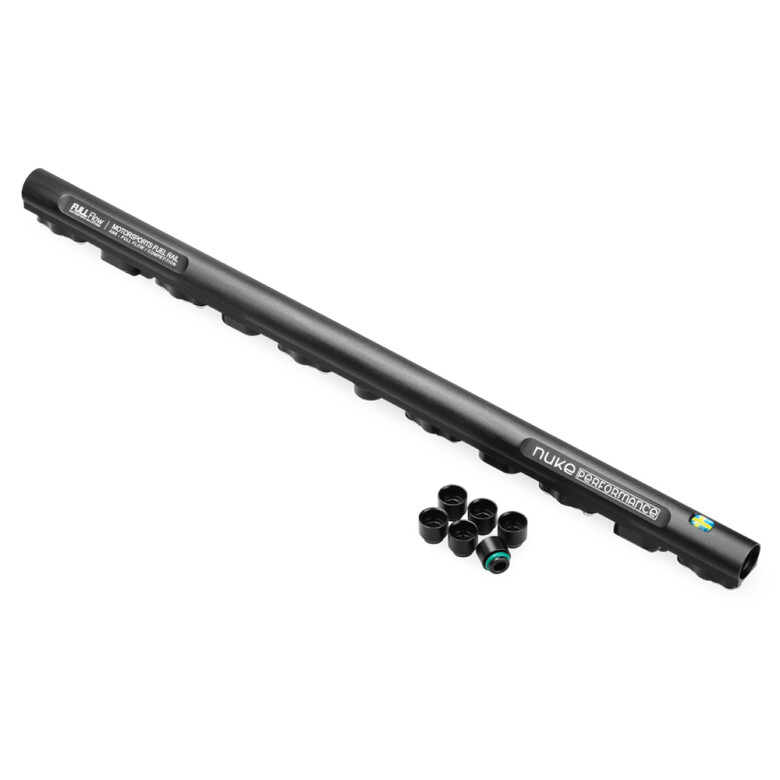

Fuel Rail / BMW 6cyl / M20
Aluminum fuel rail 6082-T6 with ORB -08 AN main ends and -06 AN side port
3/4 UNF thread
Nuke Performance fuel rail for the BMW 6cyl M20 engine, oversized internals, lightweight design, and equipped with our unique injector safety clips. The BMW 6cyl M20 fuel rail is delivered with brackets for the M20 engine and allows you to go with AN fuel lines and aftermarket injectors for your classic BMW engine.
- Lightweight fuel rail that fits BMW 6cyl M20 engines
- To be used with Bosch EV14L type injectors
- AN-8 ORB threads in both ends enable a high fuel flow

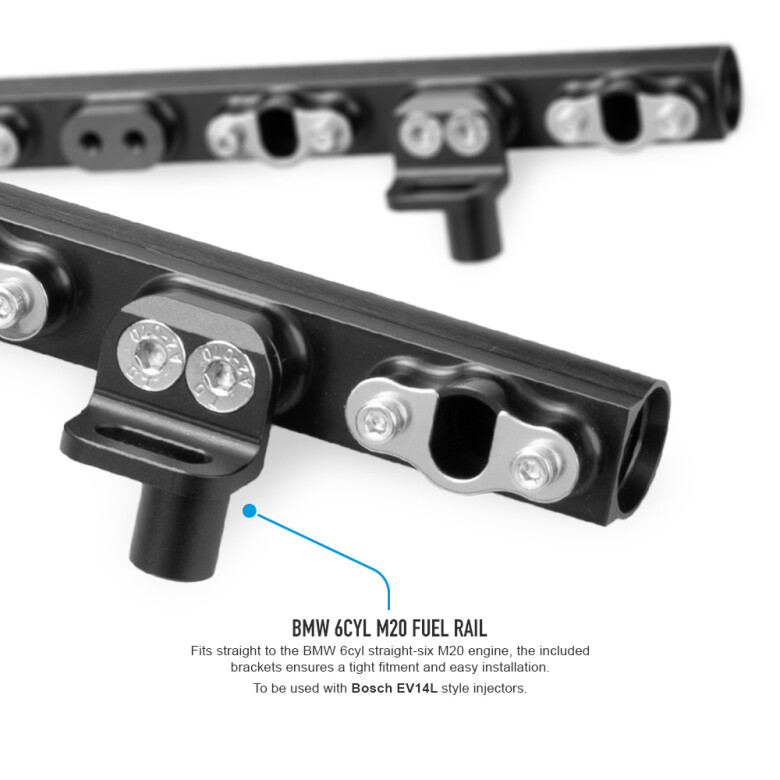

- Delivered with brackets for easy mount to the BMW M50 intake
- AN-6 ORB side outlet/inlet for optional applications
- Safe for all types of fuels, including alcoholic fuels such as E85
- BMW M20B20 1977-1992
- BMW M20B23 1977-1987
- BMW M20B25 1985-1992
- BMW M20B27 1982-1988
AN-8 ORB main ports and an AN-6 ORB side port.

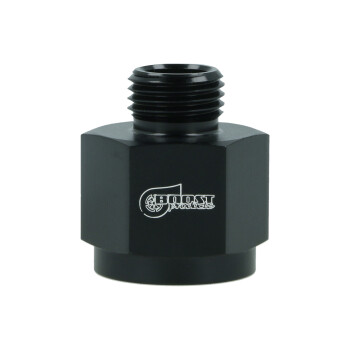

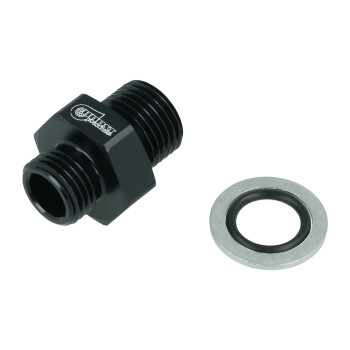

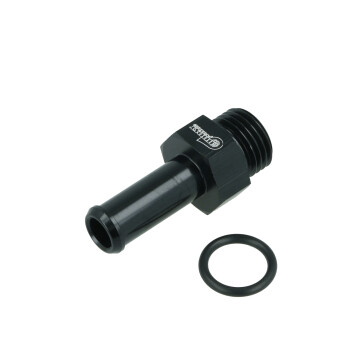

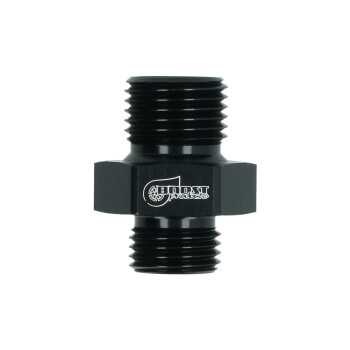

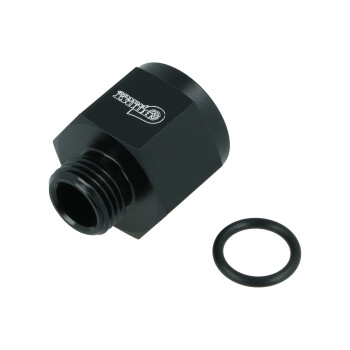

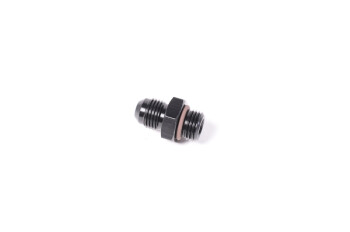

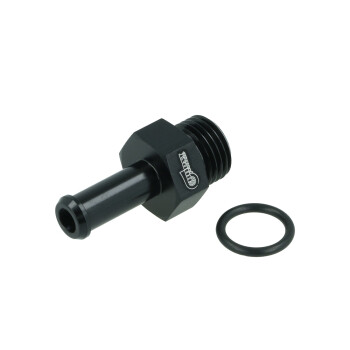

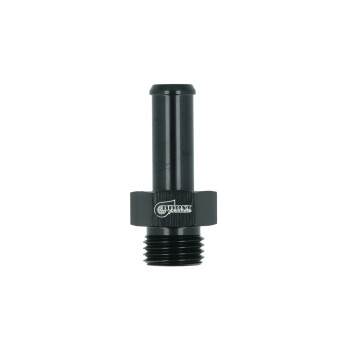

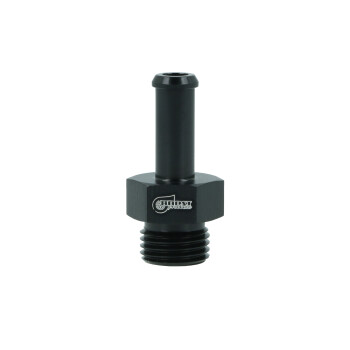

We offer a wide range of fittings and adapters to choose from. The fuel rail uses AN-8 ORB threaded fittings for each end and also offers an additional side port with AN-6 ORB thread. We offer a wide variety of fittings and our low-profile full-flow banjo fittings for a space-efficient installation.
AN-8 ORB main ports and AN-6 ORB side port
The fuel rail is delivered with an AN-6 ORB Plug for the side port but the main port fittings are sold as accessories.

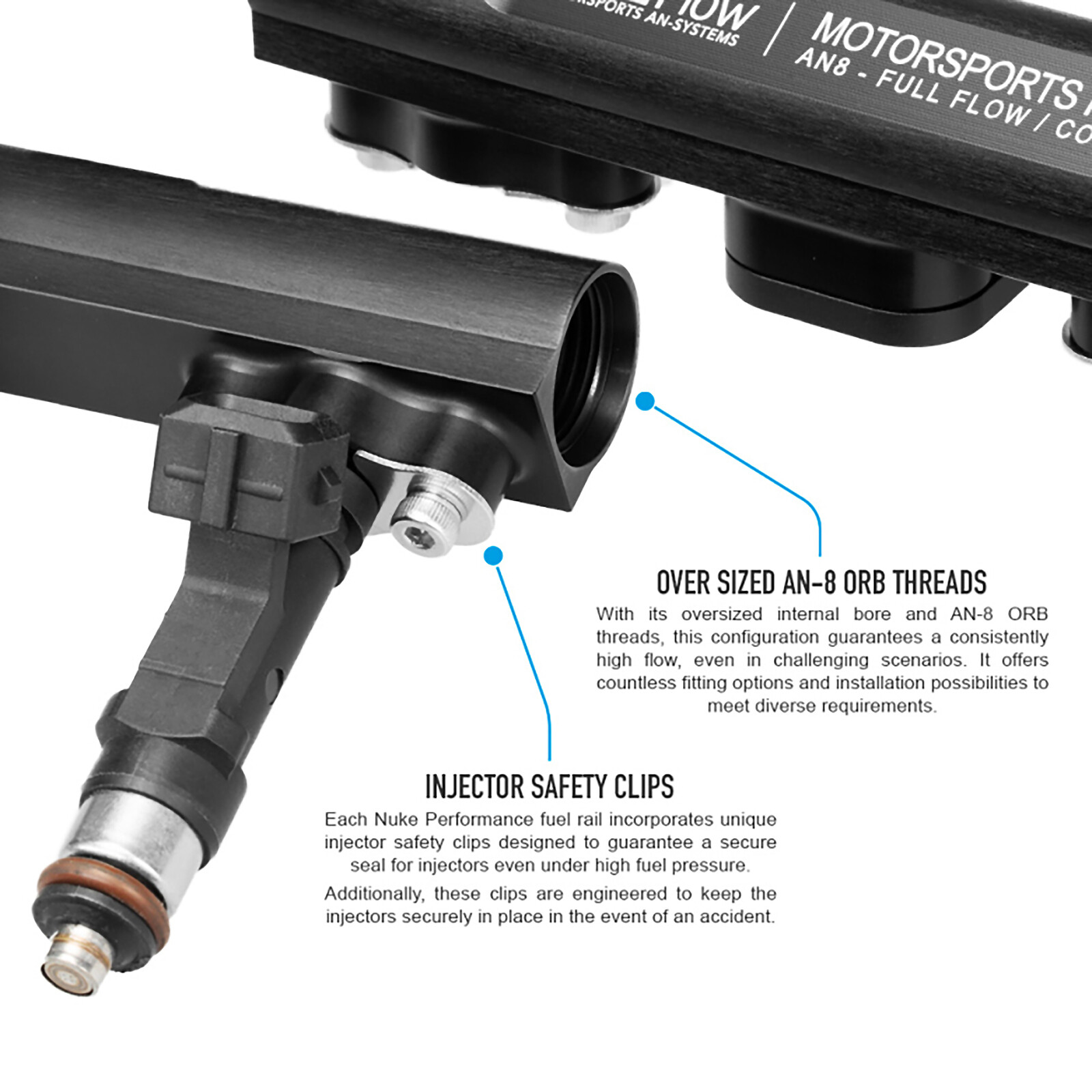

All Nuke Performance fuel rails use unique Injector Safety Clips that ensure a perfect seal under all conditions. One distinctive feature of Nuke Performance is its use of injector safety clips, designed to uphold a flawless seal for injectors even under the strain of extreme fuel pressure.
Ensures a safe and secure seal even during extreme fuel demands
Whether during assembly, engine installation or in the unfortunate event of an accident, these clips ensure the injectors remain securely attached to the rail. This design prevents any fuel spillage, even in scenarios where the fuel pump continues to run or there is residual pressure in the fuel system.

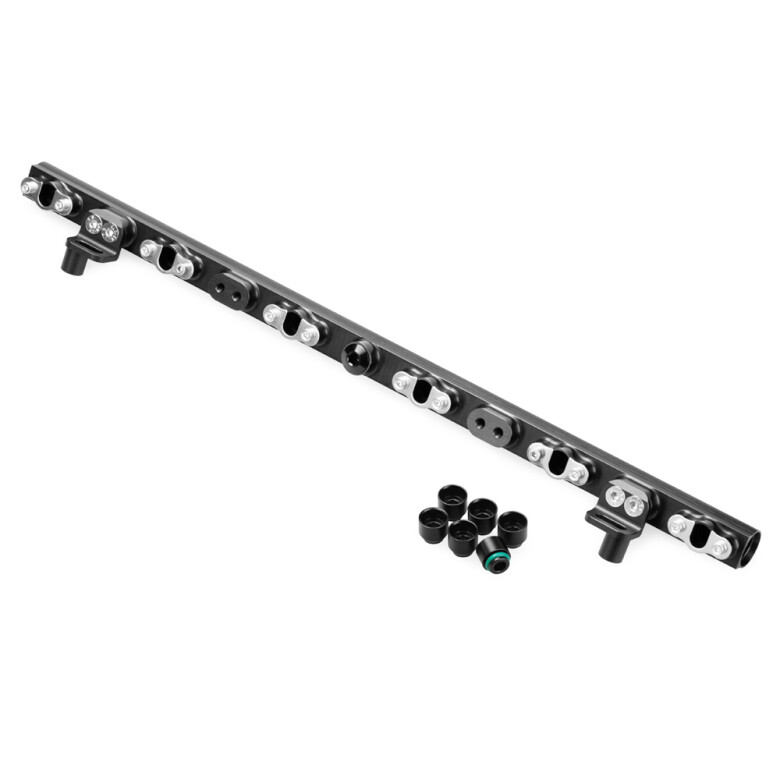

Nuke Performance BMW 6cyl M20 fuel rail includes:
- 1 x AN-8 ORB Full Flow fuel rail profile for BMW 6cyl M20 engine
- 2 x Aluminum brackets for BMW 6cyl M20 engine
- 1 x AN-6 ORB Plug
- 6 x Nuke Performance Injector safety clips
- 12 x MC6S M4x6mm stainless steel bolts
- 4 x K6S M6x10mm stainless steel bolts
- 2 x K6S M6x12mm stainless steel bolts
The fuel rail is delivered without fittings and injectors, these need to be purchased as accessories.
Buy First Hand
We are the main German distributor for NUKE Performance from Sweden with exclusive sales rights for Germany, Austria and Switzerland. Any Parts made by NUKE Performance can only be sold in these countries either by us or by our dealers. Buy your products first hand and benefit from our excellent support and consultation. Furthermore the short supply chain ensures a quick repair or replacement if needed. As the German distributor we guarantee you, that the product is functioning correctly. In the unlikely case of a malfunction, we send out a free replacement. Malfunctions that are resulting from misuse, improper use, negligence, unauthorized alteration or repair will not be compensated.
We only sell 100 % original products. Buying from us means, you always buy the latest version. No refurbished products and no knock offs that look deceptively like the real product.
- Vehicle manufacturer: BMW
- Availability: order on customer request
