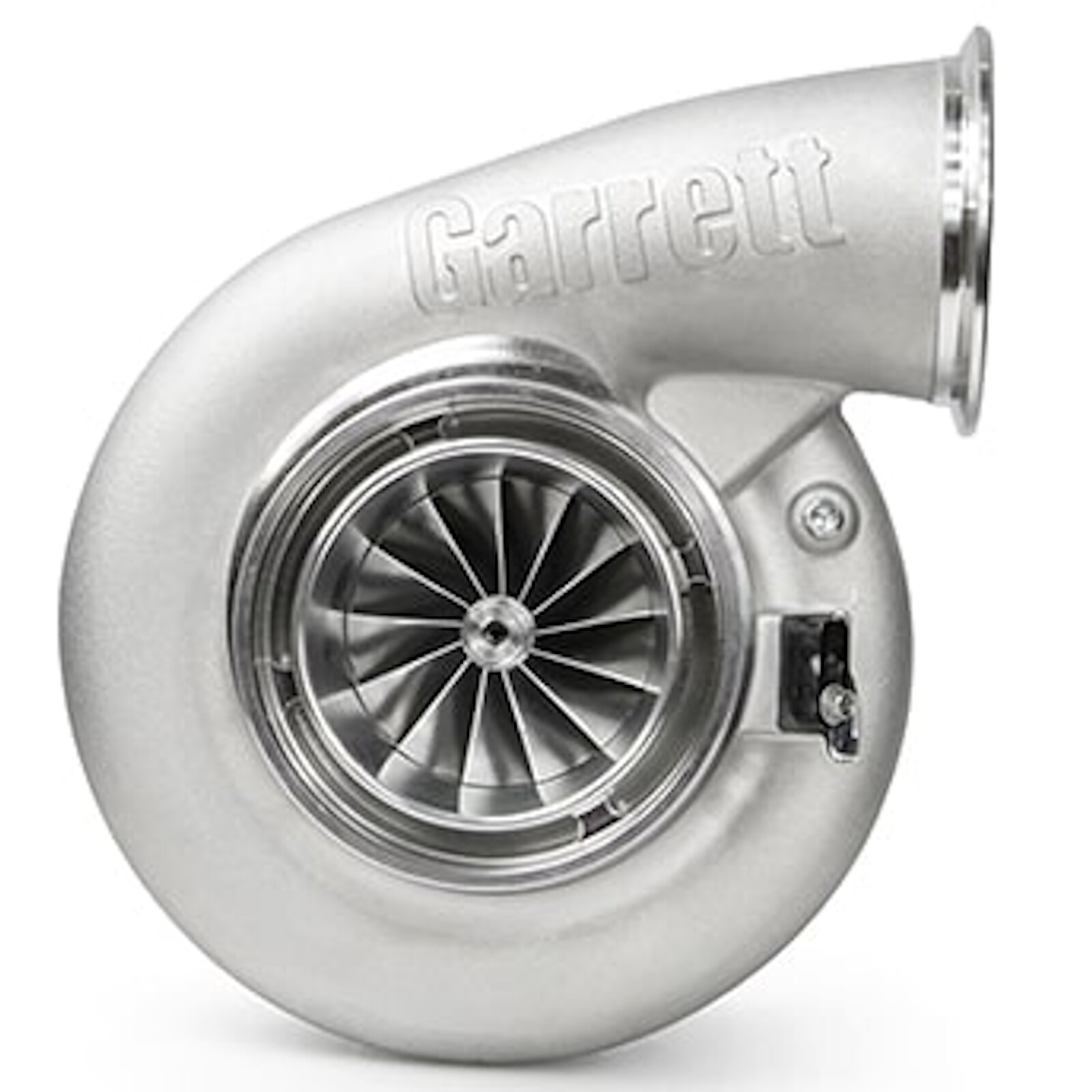

Garrett G45-1600 Turbocharger / Super Core

The G-Series is the latest generation of Garrett Performance Turbochargers / 888169-5006

A true evolution of the GTX Turbos

With the G-Series, Garrett introduces highly advanced turbochargers that rival Borg Warner EFR turbos. The debate between Garrett and BorgWarner can continue, but let’s stick to the facts:
- Forged and machined compressor wheels of the latest generation with up to 30% more airflow (compared to the GTX Gen II series)
- High-flow compressor housing with optional port for a speed sensor
- Turbine wheel made from Mar-M (resistant up to 1050°C) with 74% more efficiency
- Stainless steel turbine housing, resistant up to 1050°C
- Core assembly with V-band connection for full rotational flexibility
- Dual ceramic ball bearings
- Four water connection options
- Dual piston ring seals

Power Range: Up to 1600 HP
Displacement: 2.0 to 7.0 liters

Compressor Side:
Inlet: 80.00mm
Outlet: 109.00mm
Trim: 54
A/R Ratio: 0.85

Turbine Side:
Inlet: 89.00mm
Outlet: 82.00mm
Trim: 84

GENERAL GARRETT G-Series TURBOCHARGER DESCRIPTION

The latest generation of turbochargers from Garrett is an evolution of the GTX series. With higher efficiency and more features, the G-Series stands out. Enhanced airflow capabilities with the same wheel sizes and extreme temperature resistance in the turbine wheel and housing are complemented by features like four water ports, dual piston ring seals, and speed sensor readiness.

Right-Hand and Left-Hand Rotation:
The innovation of the GTX Gen II turbochargers has been carried over to the G-Series, offering reverse rotation models as well!

Compressor Wheel:
All G-Series compressor wheels are CFD-designed, forged, and machined from special high-strength aluminum alloys. The new G-Series compressor wheels provide up to 30% more airflow compared to the GTX Gen II wheels.

Compressor Housing:
The new aero-optimized high-flow compressor housings are tailored to the G-Series wheels and include provisions for optional speed sensors. Improved recirculation systems from Generation I have been adopted, significantly expanding the compressor’s operating range by shifting the surge line.

Core Assembly:
All Garrett G-Series turbos feature water cooling with four connection points, allowing for easier installation of water lines. Like the Gen II, the G-Series comes with dual ceramic ball bearings and introduces dual piston ring seals on both sides.

Turbine Wheel:
The new turbine wheels are made from high-performance Mar-M material, capable of withstanding exhaust temperatures up to 1050°C. Despite maintaining the same dimensions as the GTX wheels, they deliver 15-20% more flow.

Turbine Housing:
The turbine housings are cast from a special stainless steel alloy, also resistant to temperatures up to 1050°C.

If this turbocharger is not marked as in stock, we may still have individual components available to assemble the turbocharger for you. Please call or email us to check if it can be delivered from stock.

You may also inquire about shorter delivery times than those indicated, as this often depends on the timing of the order.

Custom Garrett Turbos

The turbocharger offered here comes directly from the manufacturer. However, Garrett turbochargers offer various options for flange patterns and connections to adapt to your vehicle's specifications. We are happy to assemble Garrett turbochargers with different turbine and compressor housings for you. Please contact us via phone, email, or the contact form for further assistance.
