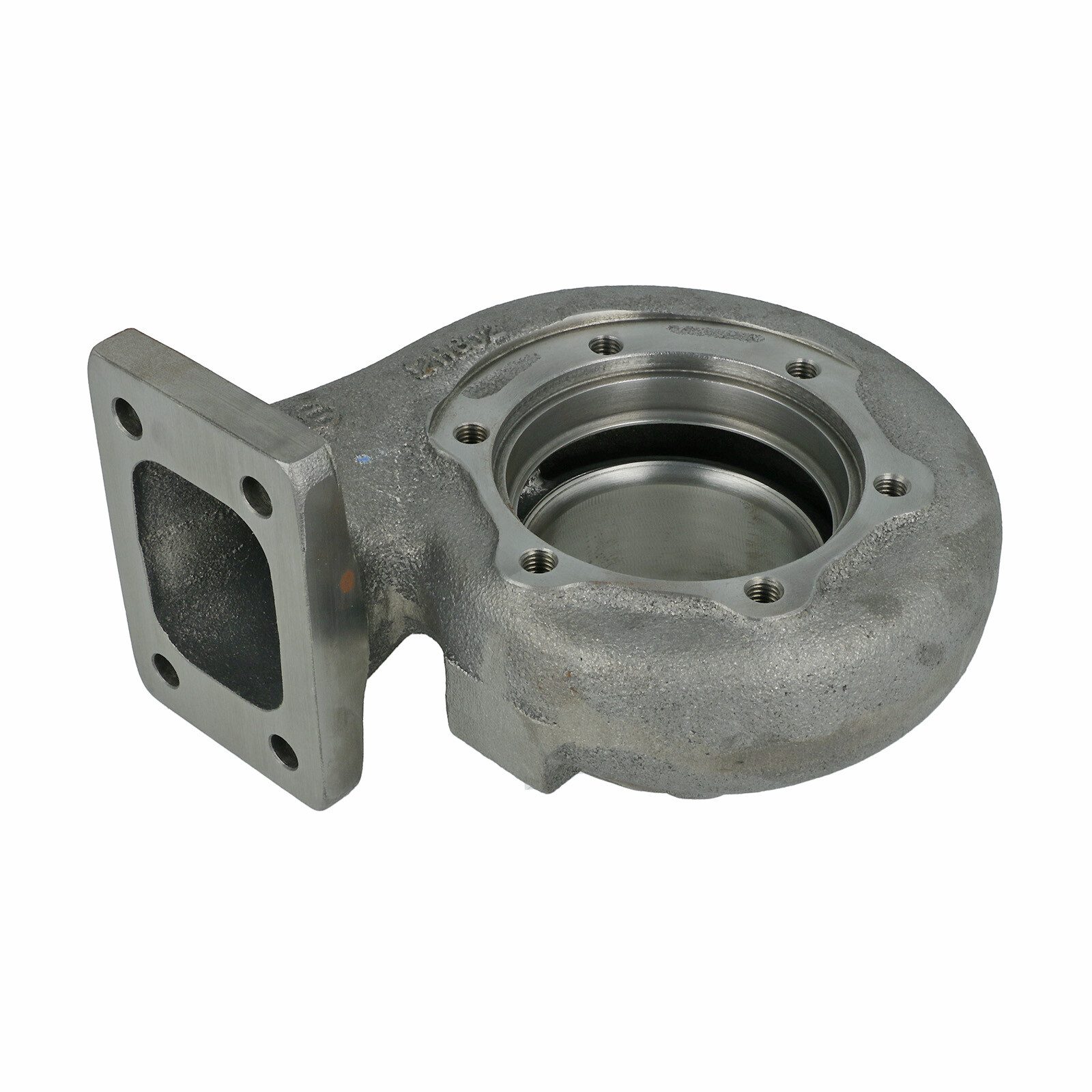

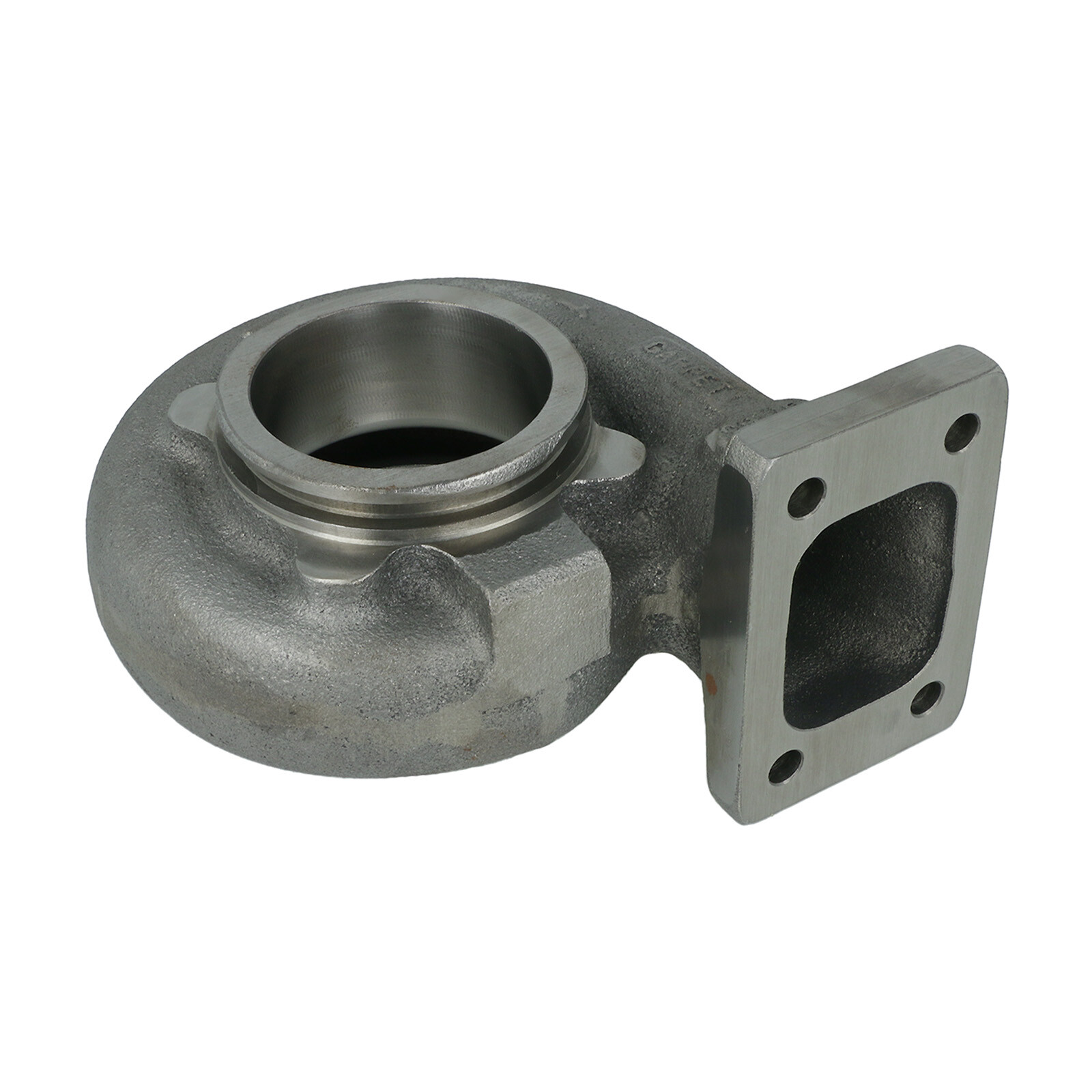

Turbine housing Garrett T25 63,5mm V-Band for GT35 / GTX35
Garrett turbine housing with T25 flange and 2,5" / 63,5mm V-Band outletFor GT35R / GTX35 Series with 0.63 A/R
This turbine housing is to be used with Garrett turbochargers of the GT35 or GTX35 series with 65mm turbine wheel.
Turbine Inlet flange: T25
A/R-ratio: 0,63ar
Fits:
GT3582R (714568-5001 / 714568-5002 / 714568-5003 / 714568-5007 / 714568-5008 / 714568-5009 / 714568-5010 / 714568-5011 / 714568-5012)
GTX3576R (803714-1)
GTX3582R (803715-1)
Garrett turbochargers allow a very easy exchange of the turbine housing, for exampling enabling a quick change in mounting position or the choice of a smaller or larger A/R ratio to increase response or peak performance.
