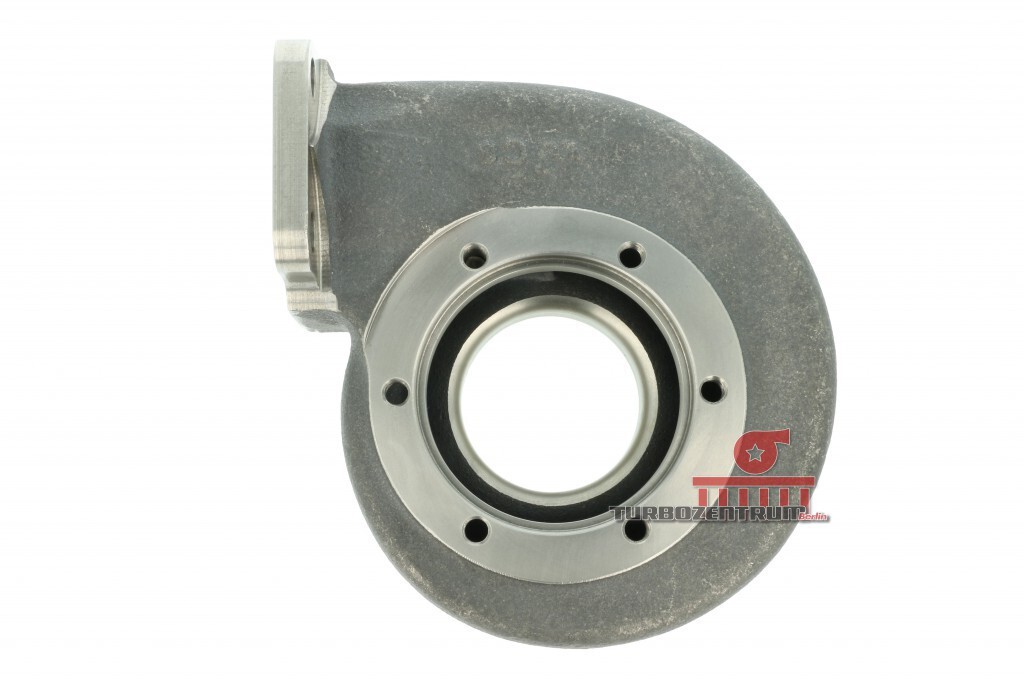

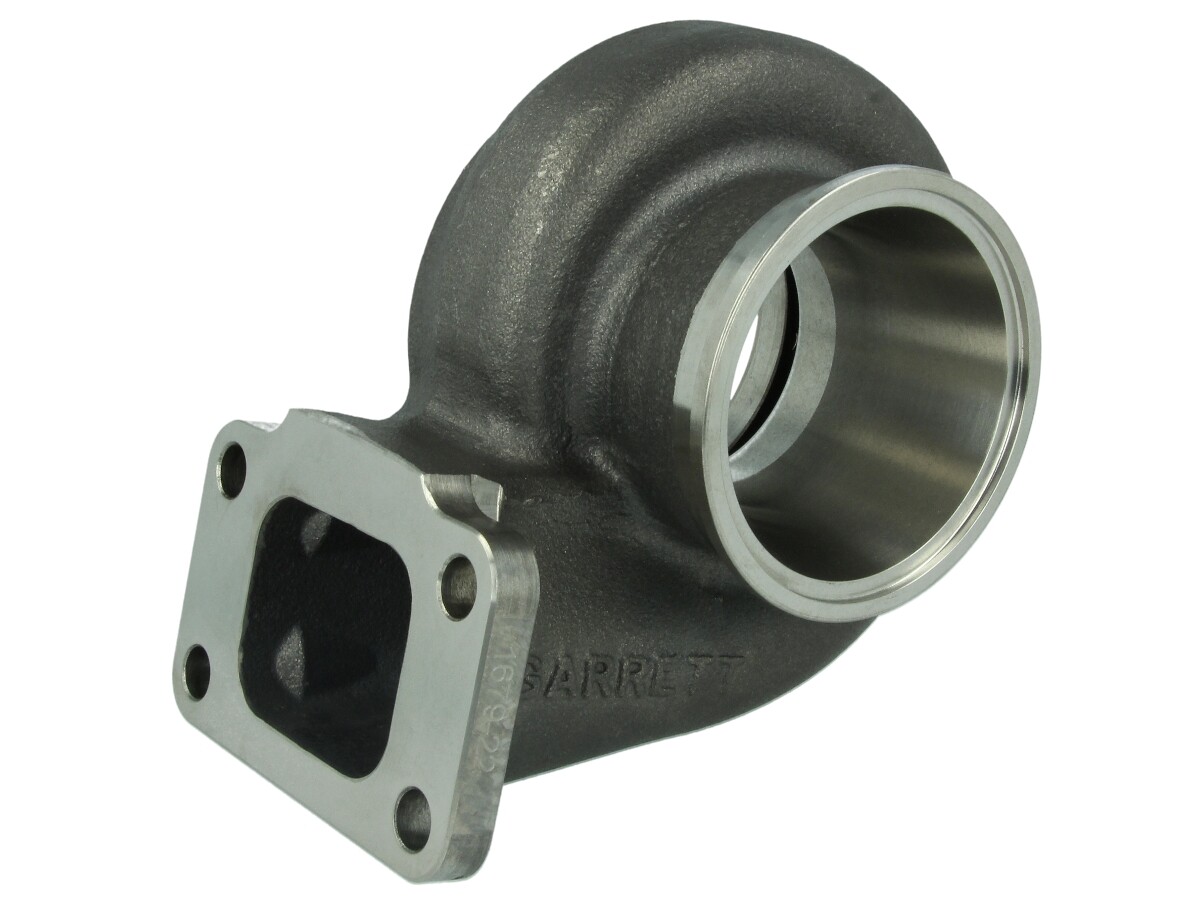

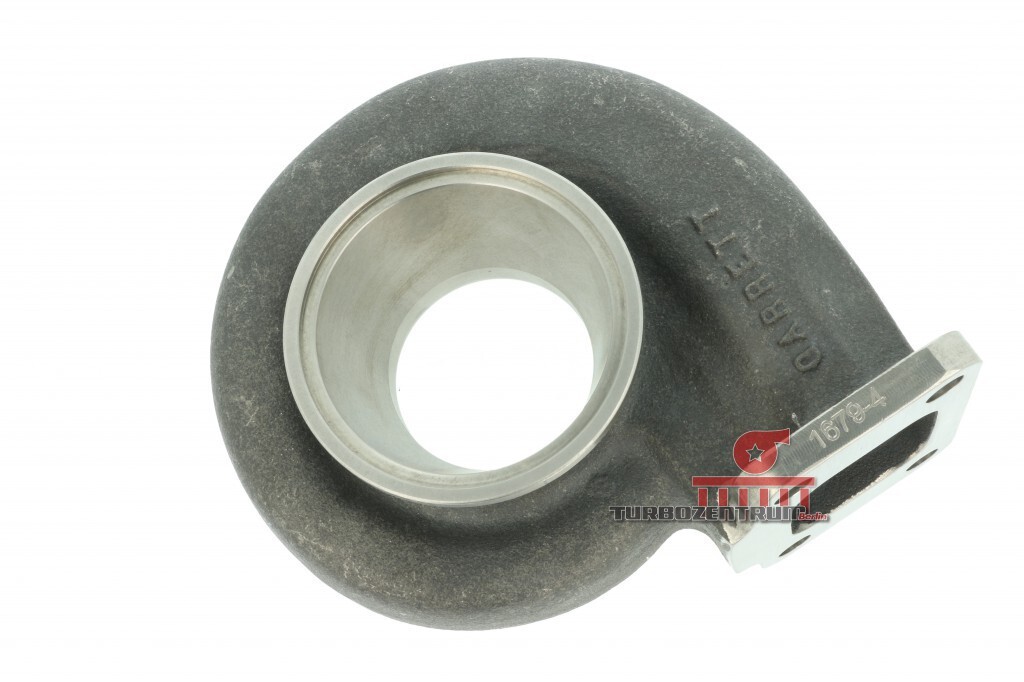

Turbine housing Garrett GT-VB (T3 V-Band 76mm)
Single turbine housing with T3 flange
For GT30R / GTX30 Series with 1.06ar
This is the standard turbine housing of the GT30, with which the screw flange was turned on V-Band. This makes it easy to mount a 3"/76mm (76mm) V-Band ring with clamp.
Turbine inlet flange: T3
A/R-ratio: 1,06ar
Fits:
GT3071R (CHRA 700177-5023)
GT3076R (700382-5012)
GTX3067R (824727-0001)
GTX3071R (803712-1)
GTX3076R (803713-1)
The Garrett turbochargers allow an easy change of the turbine housing. This can be used, for example, to change the installation situation. Or the choice of a smaller or larger ar value improves the response or the maximum power can be increased.
- a/r Value: 1.06ar
- Flange type: T3 undivided / SingleScroll
- Availability: order on customer request
- Turbocharger: GT3071RGT3076RGT3082RGTX3067RGTX3071RGTX3076R
