Garrett turbine housing GT30 / GTX30 Series - 60mm - T4 0.63 A/R



639,02 €
incl. 19% VAT , plus shipping costs
instead of: 652,06 €
Save 2%
Status:
will be reordered for you**

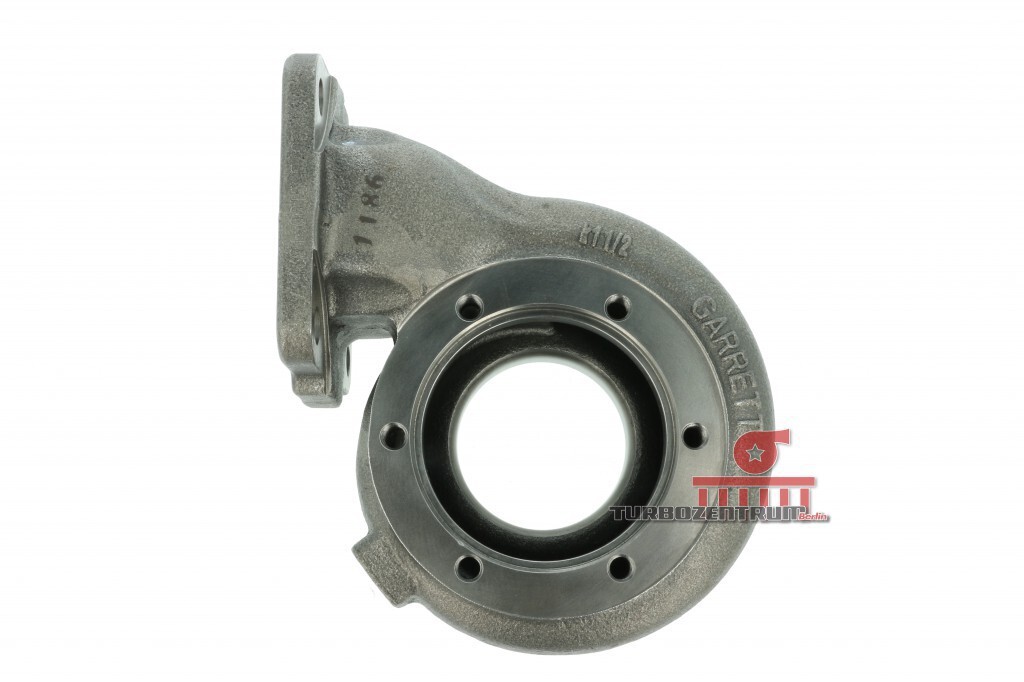

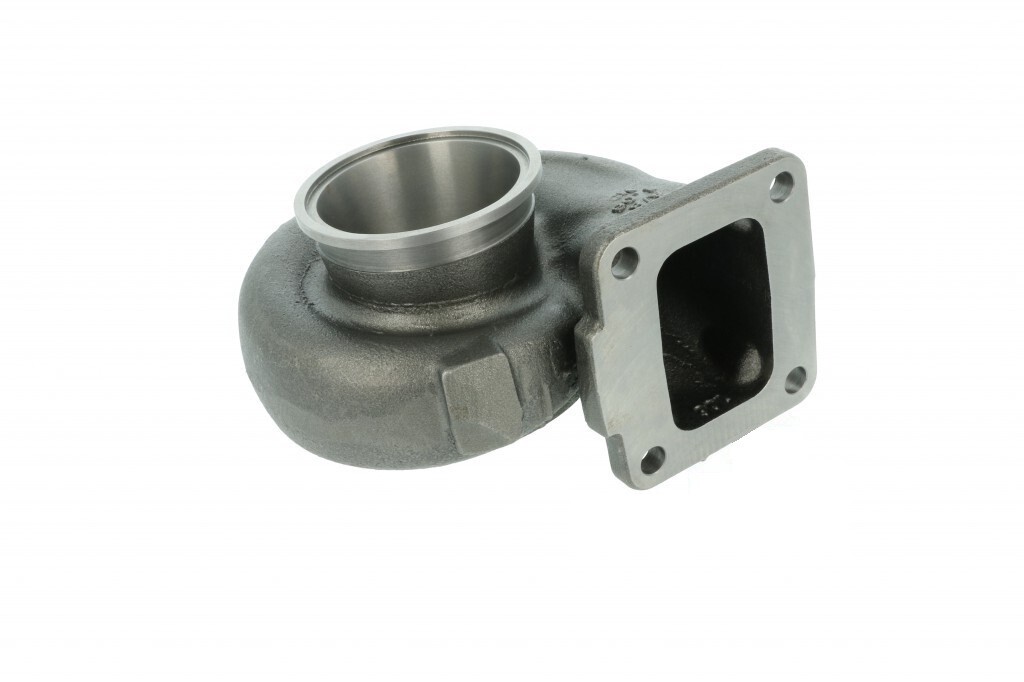

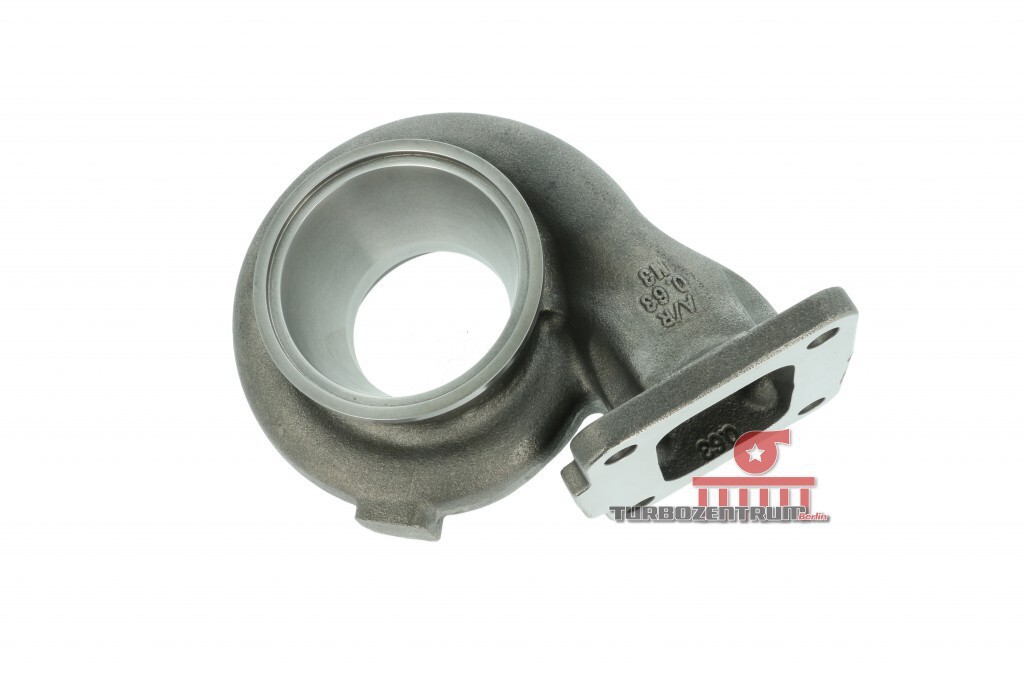

Turbine housing Garrett T4 undivided

Single turbine housing with T4 singlescroll flange

For GT30R / GTX30 Series with 0.63 A/R

This turbine housing is fitted with a T4 header flange and a 3"/76mm V-Band turbine flange for 76mm exhaust pipes. This turbine housing is to be used with Garrett turbochargers of the GT30 / GTX30 Series with 60mm turbine wheel.

Turbine Inlet flange: T4 singlescroll
A/R-ratio: 0,63ar

Fits:
GT3071R (CHRA 700177-5023)
GT3076R (700382-5012)
GTX3067R (824727-0001)
GTX3071R (803712-1)
GTX3076R (803713-1)

Garrett turbochargers allow a very easy exchange of the turbine housing, for exampling enabling a quick change in mounting position or the choice of a smaller or larger A/R ratio to increase response or peak performance.

Video
What does T25, T3, T4 flange mean? | Turbocharger simply explained
TwinScroll vs SingleScroll housing | Turbocharger simply explained
What does the A/R value mean - more power vs. response | Turbocharger simply explained
What should I pay attention when installing a motorsport turbocharger?
Internal and external wastegate + actuators | Turbocharger simply explained

PDF
Garrett torque specs for screws and nuts
