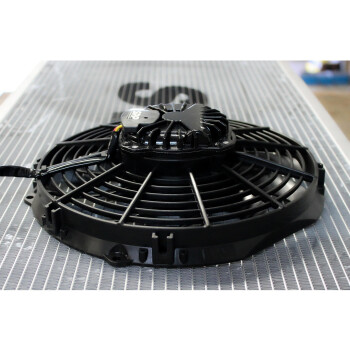

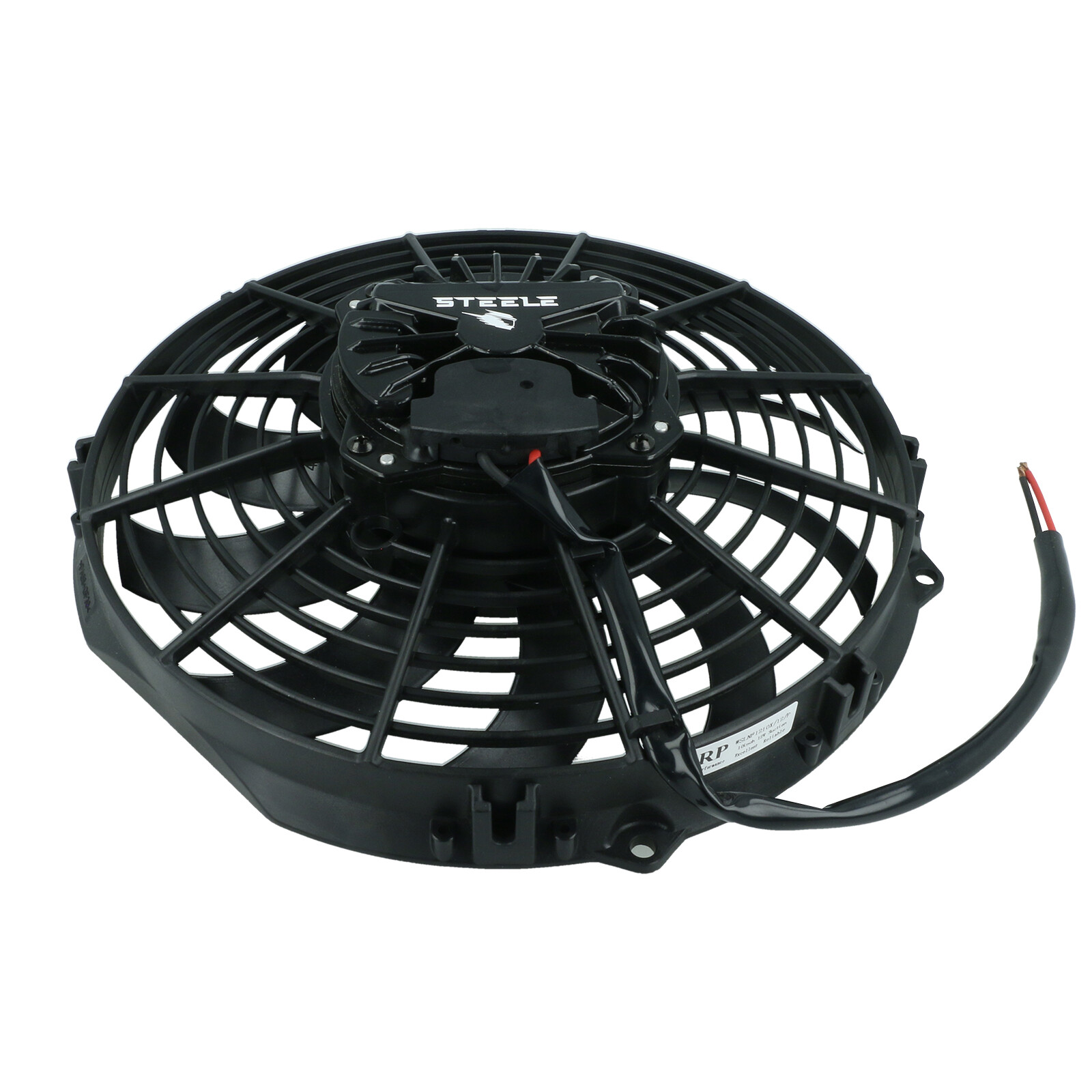

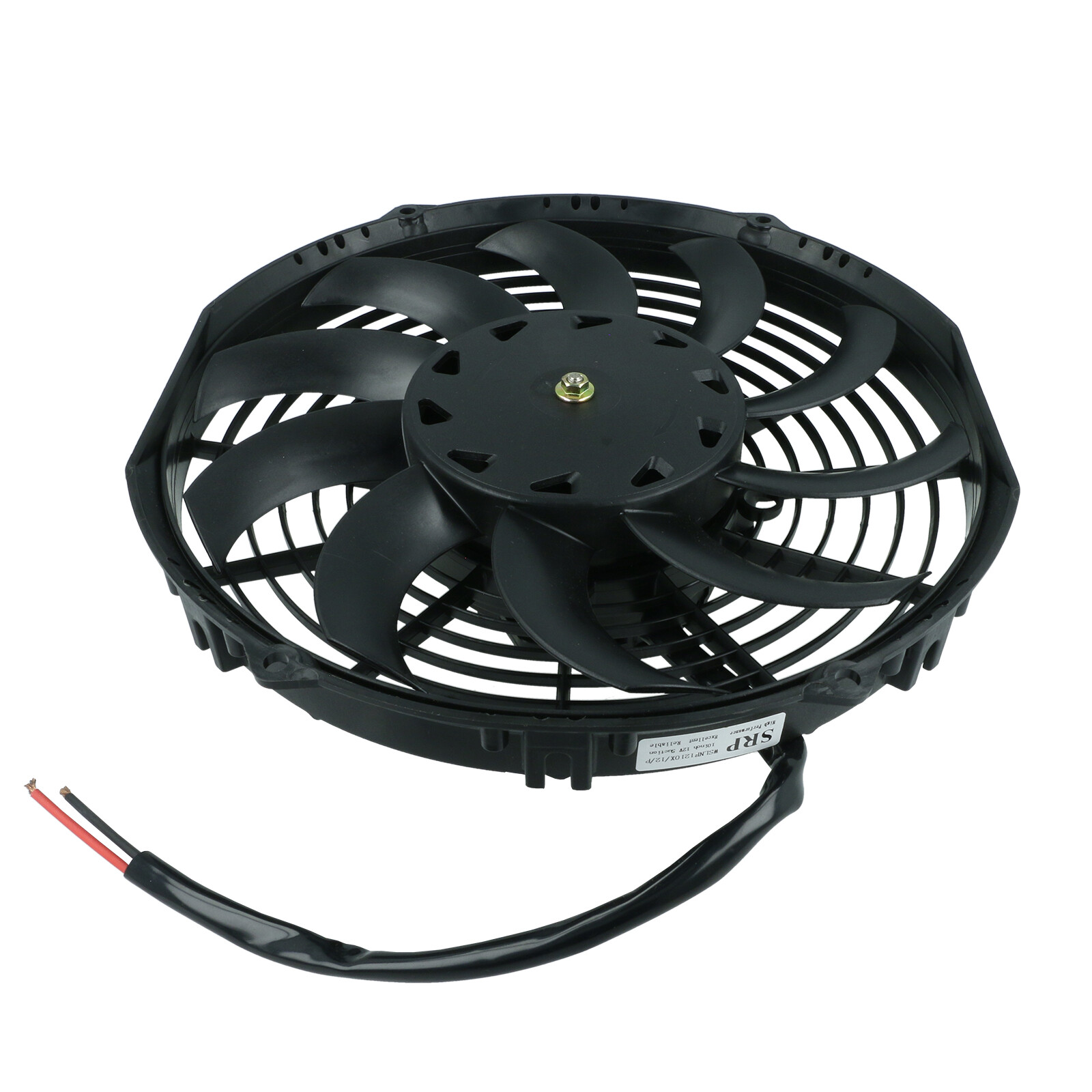

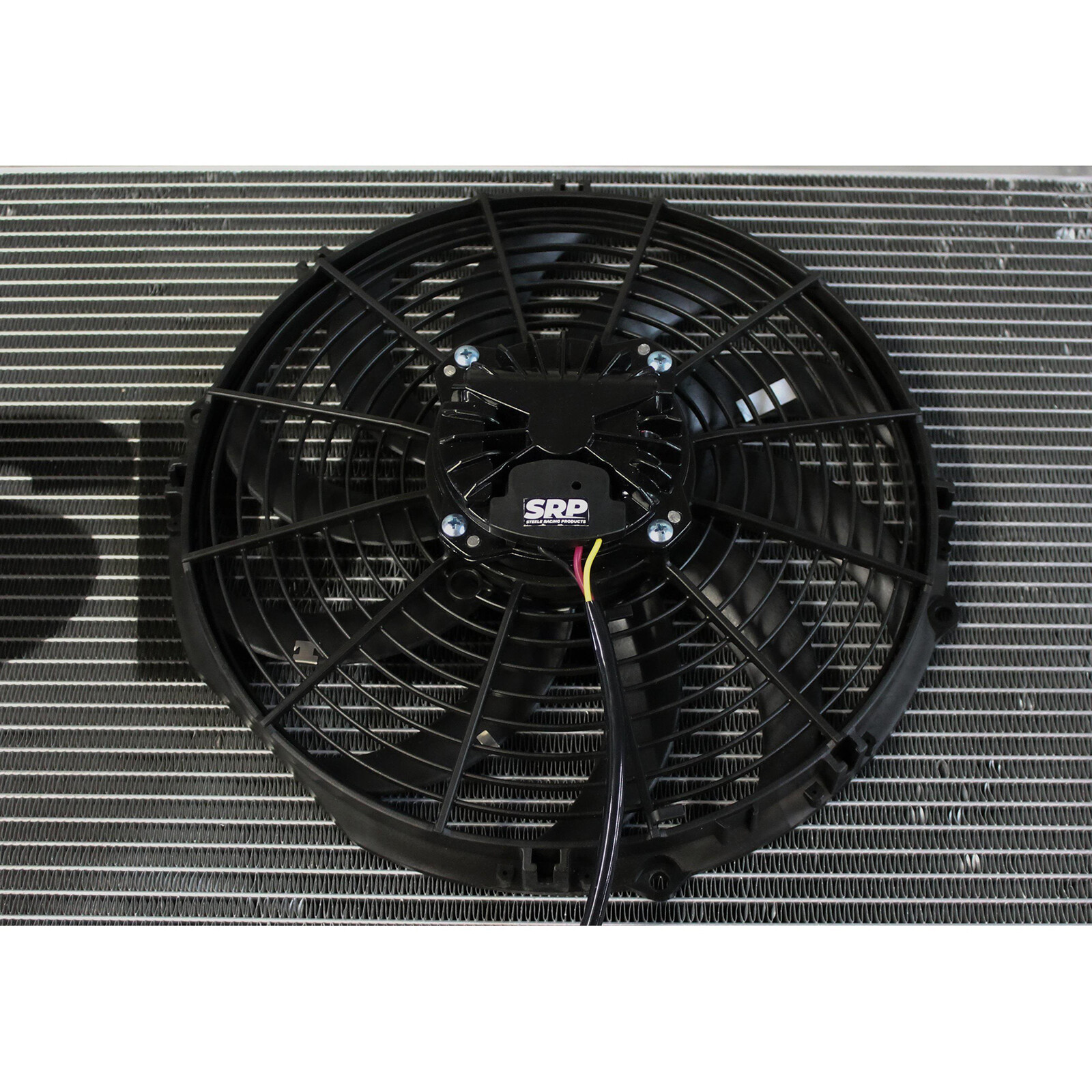

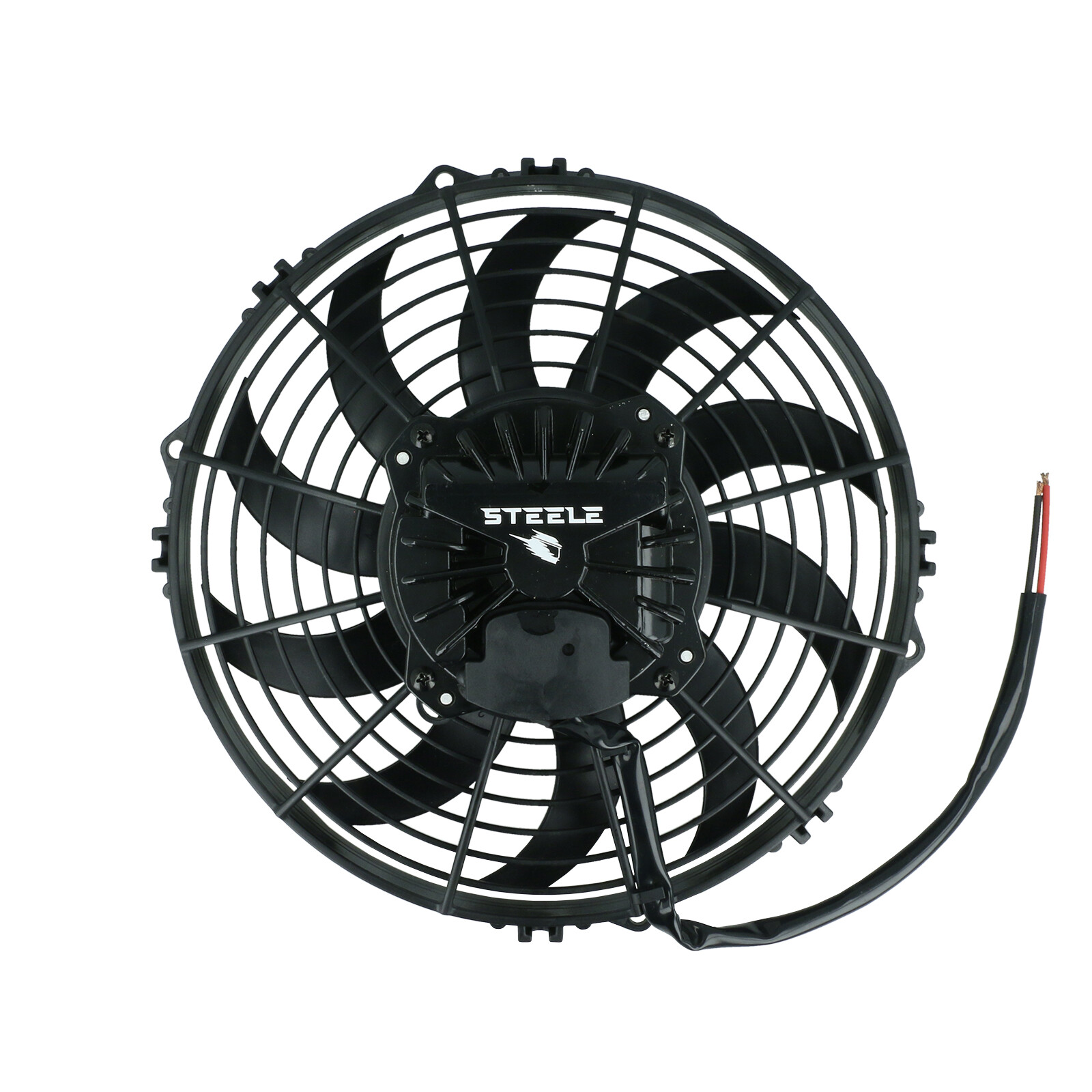

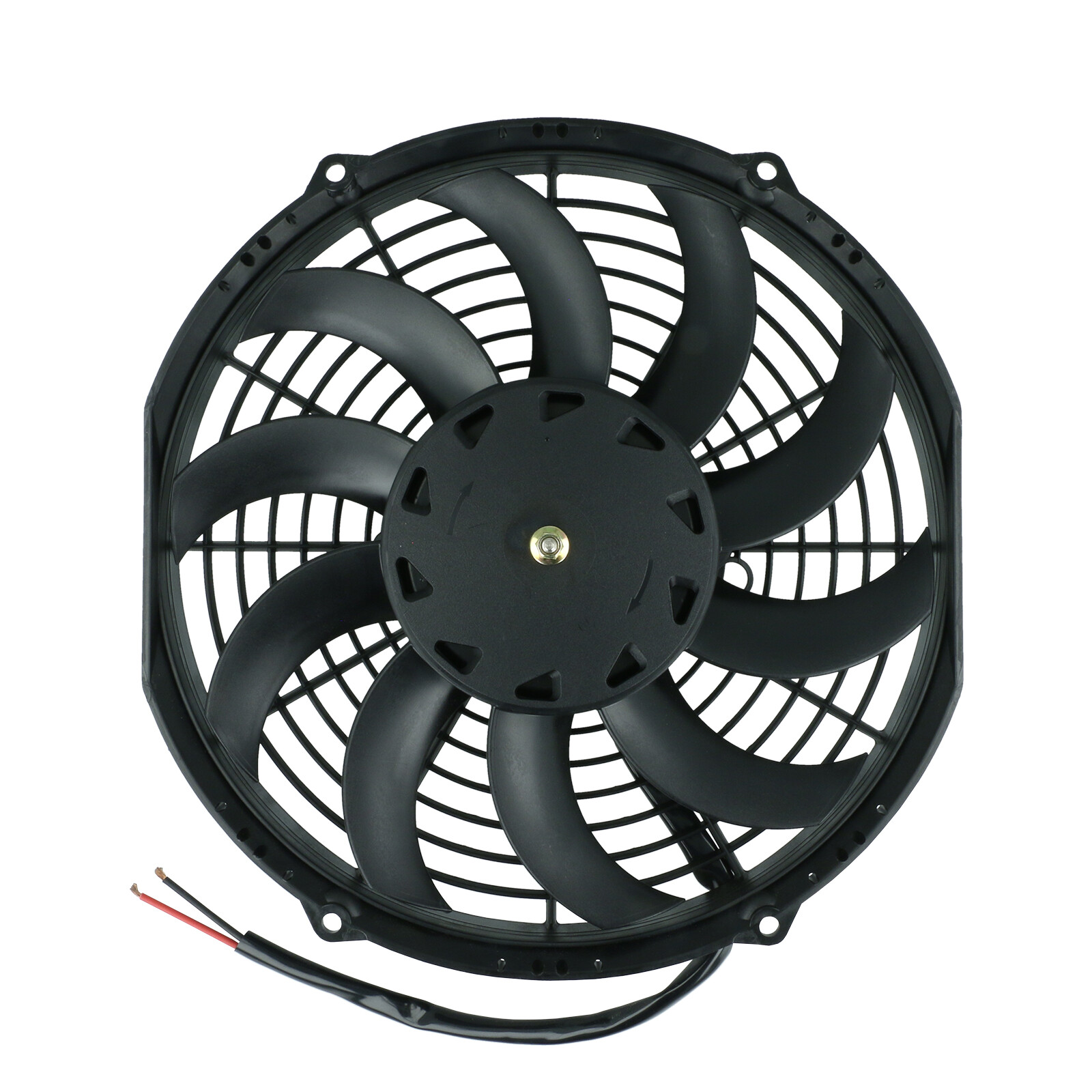

High Performance brushless Fan / 25cm (10") / Puller / 1135 CFM / Always On / Soft Start
Brushless high performance fan for water cooler, oil cooler or intercooler
Nascar proven, soft-start, super light, efficient, slim design
High performance motorsport cooling fan. Unlike SPAL or Mishimoto fans, all Steele Racing fans are equipped with a brushless motor and therefore much more powerful.
SRP R20010FS - 1135 CFM 10" Puller - High-Performance brushless fan is an on and off-road-ready system, capable of handling all weathering conditions and protection against sand, mud, water, fog, and chemicals. Designed for performance and longevity in mind, the power and control electronics are integrated within the sealed motor to ensure longer useful life and reliability. The R20010FS is completely standalone and designed for turn-key operation on any vehicle. Upgrade any OEM radiator, intercooler, or oil cooler fan and see for yourself the power of Steele's electric brushless system. Designed with a curved blade and slotted to maximize performance and efficiency, the motor is purpose-built with high ferrite magnets and state-of-the-art sensor-less drives for automotive environments. Steele sets the standard by programming a soft start feature into the R200 series motors. It ensures the longevity and reliability of your motor AND protects your electrical system.
- NASCAR approved
- Brushless
- PWM or sensor controlled
- Cutting edge fan motor blade technology
- Low Noise and vibration
- Lightweight motor design
- Soft start feature
- Slim fit
- More efficient
- High ambient working temperature
- Operates in challenging environments
- IP Rating: IP68
- Duty-cycle: 50,000 hours
- Height: 10.85"
- Width: 10.55"
- Depth: 2.99"
- Min (low) CFM: 970
- Max (high) CFM: 1135
- Amp Draw: 7.5A @ 13.5V
- 10 - 16 VDC / Variable Speed
- Lightweight: 2.3 lbs in overall weight
- Operating Temperature Range: -40 - 285F (-40 - 140C)
- PULLER Style Fan
- Tuning Part:
