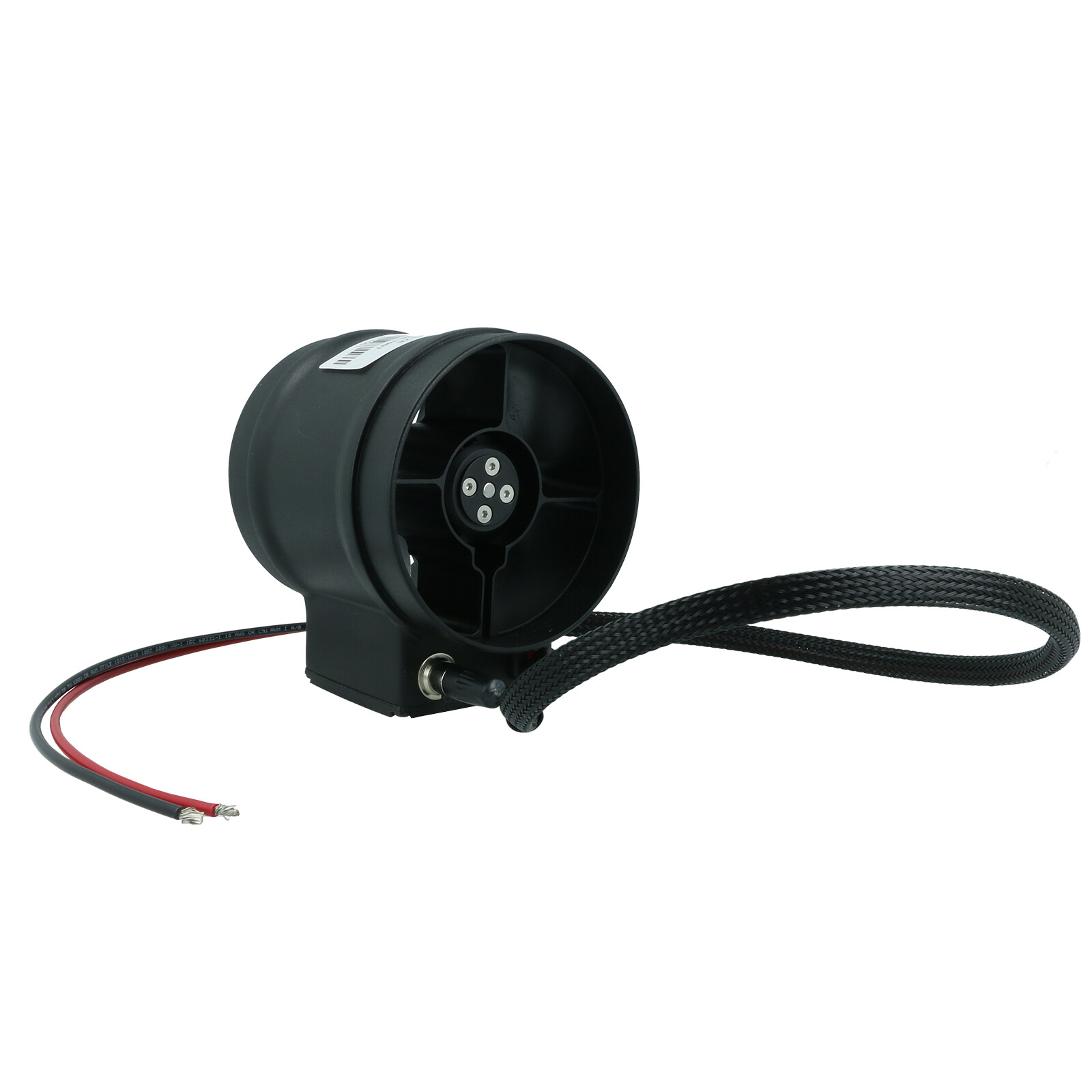

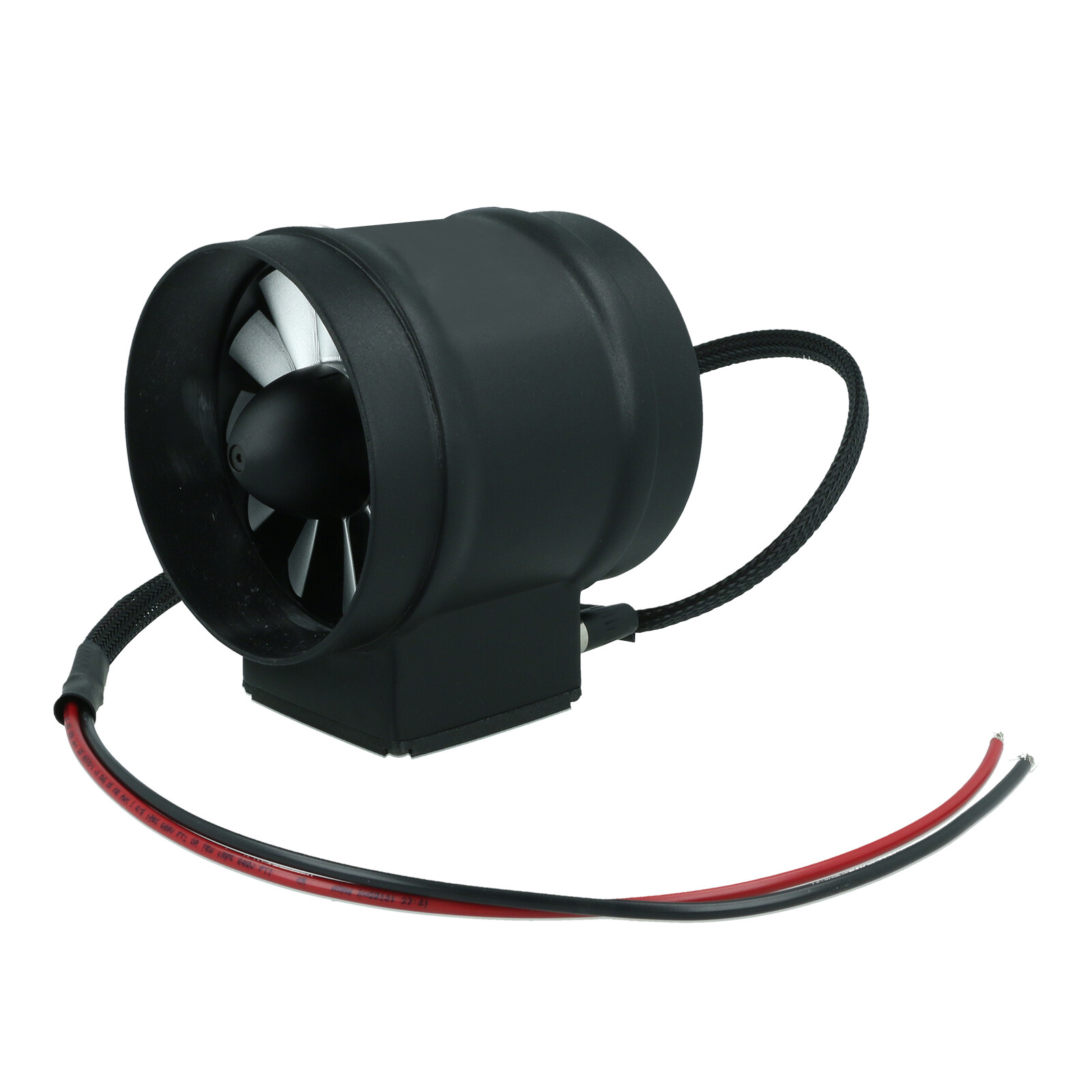

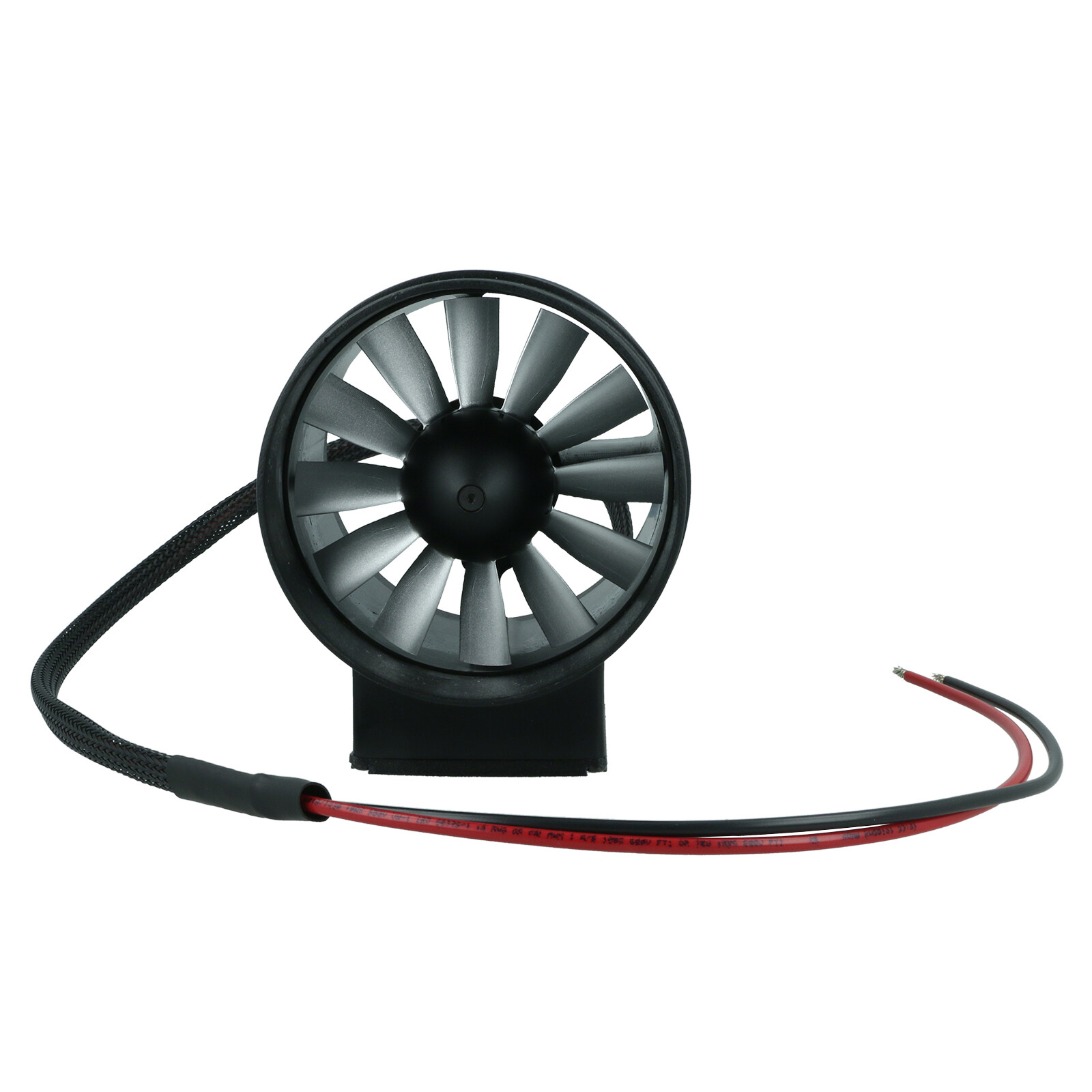

GEN4 high performance brake and tire blower
Brushless high performance fan for brake and tire thermal management
Nascar proven, soft-start, super light, efficient, slim design
The GEN4 Blower is the latest generation of our high speed, automotive-grade brake cooling blowers. Our advanced thermal management system is an industry first in combining performance, reliability, and dynamic functionality for the automotive racing industry. Dynamically control your fan speed with an optional potentiometer for variable fan speed at your fingertips or simply choose our on/off switch for a single speed. Available inur Webshop between 7A, 12A, or 15Amp pre-programmed speed settings.
SOFT START TECHNOLOGY:
Programmed into every fan is our soft-start technology. Avoid costly electrical problems by mitigating voltage and amperage spikes across the system due to poor power management systems found in other fans.
Key features include:
- Automotive-grade electronics enclosure / IP67 rated
- Aerodynamically designed for the highest CFM output and dynamic pressure
- Designed and developed from CNC billet 6061 and 7075 grade aluminum
Designed to push the limits for brushless forced induction fans. The GEN4 blower is purpose-built inside and out to manage the toughest conditions. The blades are aerodynamically engineered to maximize performance and efficiency and the motor is purpose-built with high-temperature ferrite magnets and state-of-the-art drives.
The GEN4 Blower comes standard with the following:
- GEN4 Blower (choose between 7A, 12A, or 15Amp blowers)
- Turn-Key out of the box at pre-programmed amperage setting
- 8'ft power/ground cable with mating 2-pin Deutsch connectors
- Built-in reverse polarity for circuit protection
- Gradual speed increase on start to protect electrical spikes
- Flange mount reducer - 3.5\" to 3.0\" exit port
- Inline mount reducer - 3.5\" to 3.0\" exit port
- 8'ft on/off switch
- 8'ft potentiometer for variable fan speed
- Tuning Part: Electric Fans
