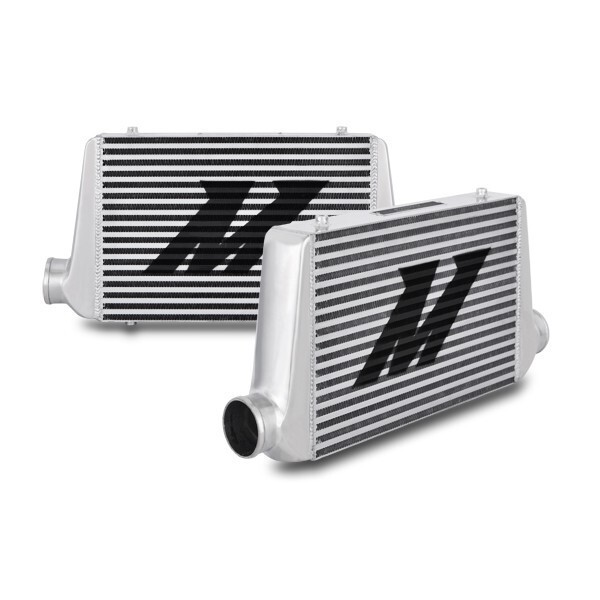

Mishimoto Universal Intercooler G-Line
445mm x 298mm x 76mm
Construction: Bar-and-Plate
Pipe Construction: Polished Aluminum
Overall Length: 622mm
Overall Height: 298mm
Overall Width: 76mm
Core Length: 445mm
Core Height: 298mm
Core Width: 76mm
Core Thickness: 70mm
Core Size: 445mm x 298mm x 76mm
Inlet: 76mm
Outlet: 76mm
Max Recommended Bar: 86
Fin Pitch:
5,9 Fins/cm
Tank Wall Thickness: 5mm
CFM: 1250
Coating: Powder Coated
Silicone Boots with DuraCore:
Boot 1: 69mm, 89mm
Boot 2: 89mm
Boot 3: 89mm
Boot 4: 76mm, 89mm
Constant Tension T-Bolt Clamps:
(1) 76mm Constant Tension T-Bolt Clamp
(1) 82,5mm Constant Tension T-Bolt Clamp
(6) 101,6mm Constant Tension T-Bolt Clamps
Purchase includes:
Mishimoto Intercooler
Sleek and stylish, this universal front-mount intercooler will provide the perfect cooling capacity needed for smaller turbo applications. All Mishimoto intercoolers are constructed of 6061 aluminum and are TIG welded to perfection.
Note: For your taste, only one side of the intercooler has the Mishimoto logo.
