JE-Pistons Ultra FSR Forged Piston Kit Audi RS3 (8V) 2.5 TFSI - 82,50mm (9,5:1) EA855EVO



1.155,43 €
incl. 19% VAT , plus shipping costs
instead of: 1.216,24 €
Save 5%
Status:
will be reordered for you**

JE-Pistons Ultra FSR Forged Piston Kit Audi RS3 (8V) 2.5 TFSI - 82,50mm (9,5:1)

Ultra FSR Series JE piston kit with 23mm piston pin for DAZA / DNWA engines

JE Pistons Ultra FSR pistons for maximum performance and durability

JE Pistons is the leading manufacturer of forged racing pistons. With more than 70 years of experience, in-house forging and industry-leading technology, JE pistons are designed to perform at the highest level in all forms of motorsports.

Thanks to JE-Piston's forged pistons, it's easy to reduce compression while getting more power and durability. Due to the special alloy of the pistons, the lowest possible running clearance is achieved, thus the engine runs smoother in the cold part phase. The compression ratio of these high-performance pistons is ideal at 9.5:1. The special ring zones ensure low blowby so as not to lose power.

  • Manufacturer: JE Pistons
  • Series: Ultra FSR series
  • Bore diameter: 82.50mm
  • Compression: 9.5:1 (stated compression is in conjunction with a 0.84mm head gasket)
  • Piston pin diameter: 23mm
  • Kolben material: Aluminium 2618
  • Piston dish: -7,5cc
  • Compression cylinder head: N.a.
  • Piston wheight: 301 gr
  • Rod length: 144
  • Stroke: 92,8mm
  • Piston rings included: Yes
  • Piston rings part number: JG1001-3250
Fits for:
  • Audi / Cupra 2.5 TFSI EA855EVO
  • Audi RS3 8V, RSQ3 F3, TTRS 8S and Cupra Formentor VZ5
  • Engine Codes DAZA, DNWA
Ultra Series combines all our premium features and a revolutionary new forging technology into an off-the-shelf piston kit! This includes an Aligned Grain Flow Forging, a proprietary JE technology that aligns forging grain flow in critical areas to improve strength.

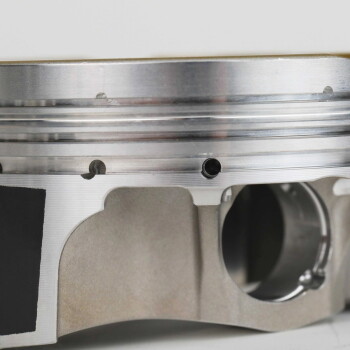

  • Designed for Power: Every feature on Ultra Series Pistons are optimized to perform flawlessly in high horsepower racing engines. This includes lateral gas ports, thicker ring lands, and dual pin oiling.
  • Aligned Grain Flow Forging: Exclusively available on JE Ultra Series, these optimized 2618 alloy forgings offer added strength over traditional 2618 forgings.

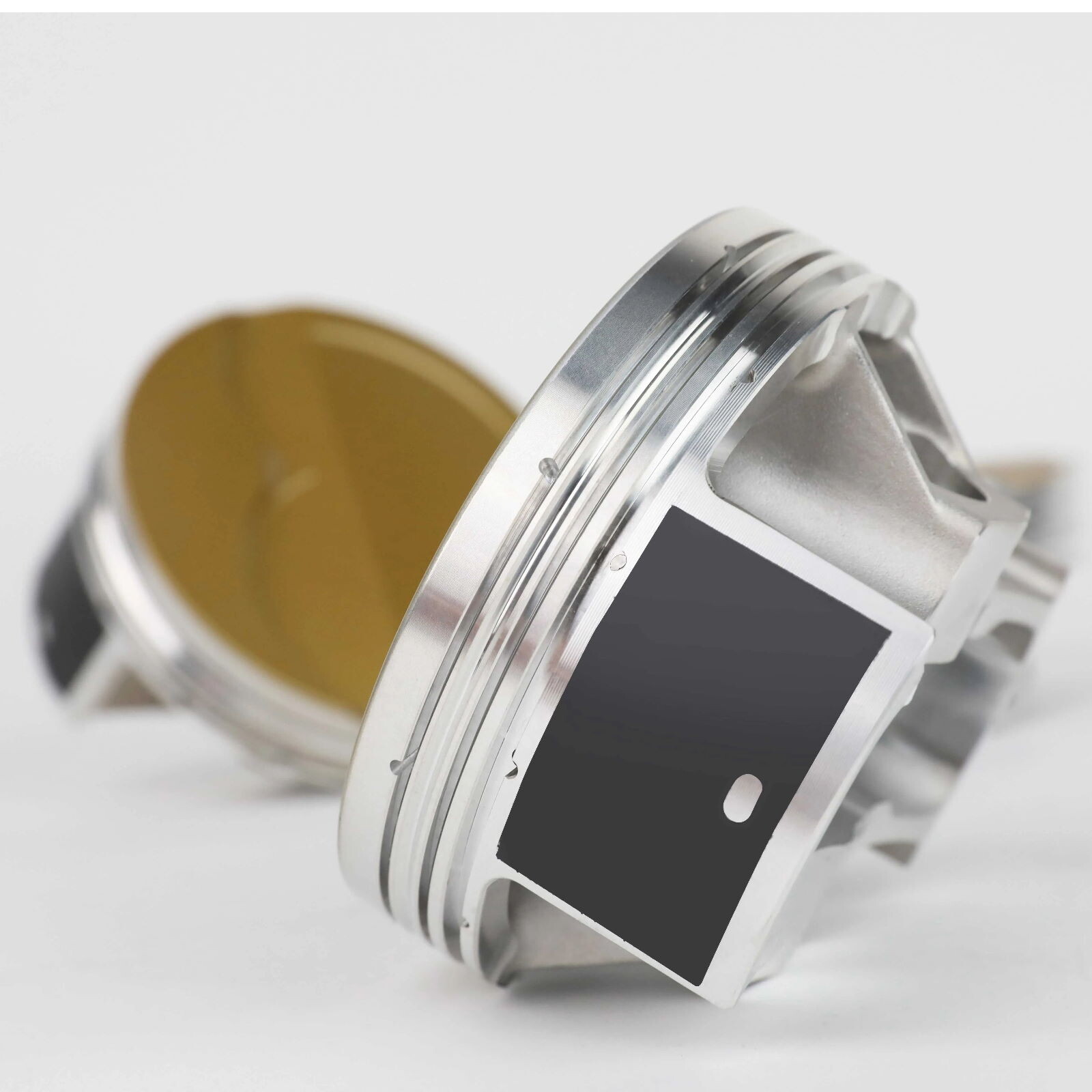

  • "Perfect Skirt" Coating: This patented skirt coating reduces friction and provides a tighter clearance that eliminates cold-start slap and false knock on computer-controlled engines.

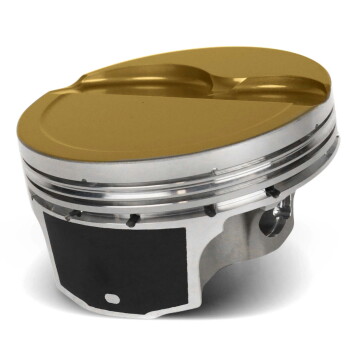

  • Thermal Barrier Crown Coating: This ceramic-based coating reflects heat into the combustion chamber, therefore reducing piston crown temperatures and improving exhaust gas scavenging.
  • 9310 Alloy Wrist Pins: These high strength, premium thick wall wrist pins are manufactured by Trend Performance in the USA.
  • Features
