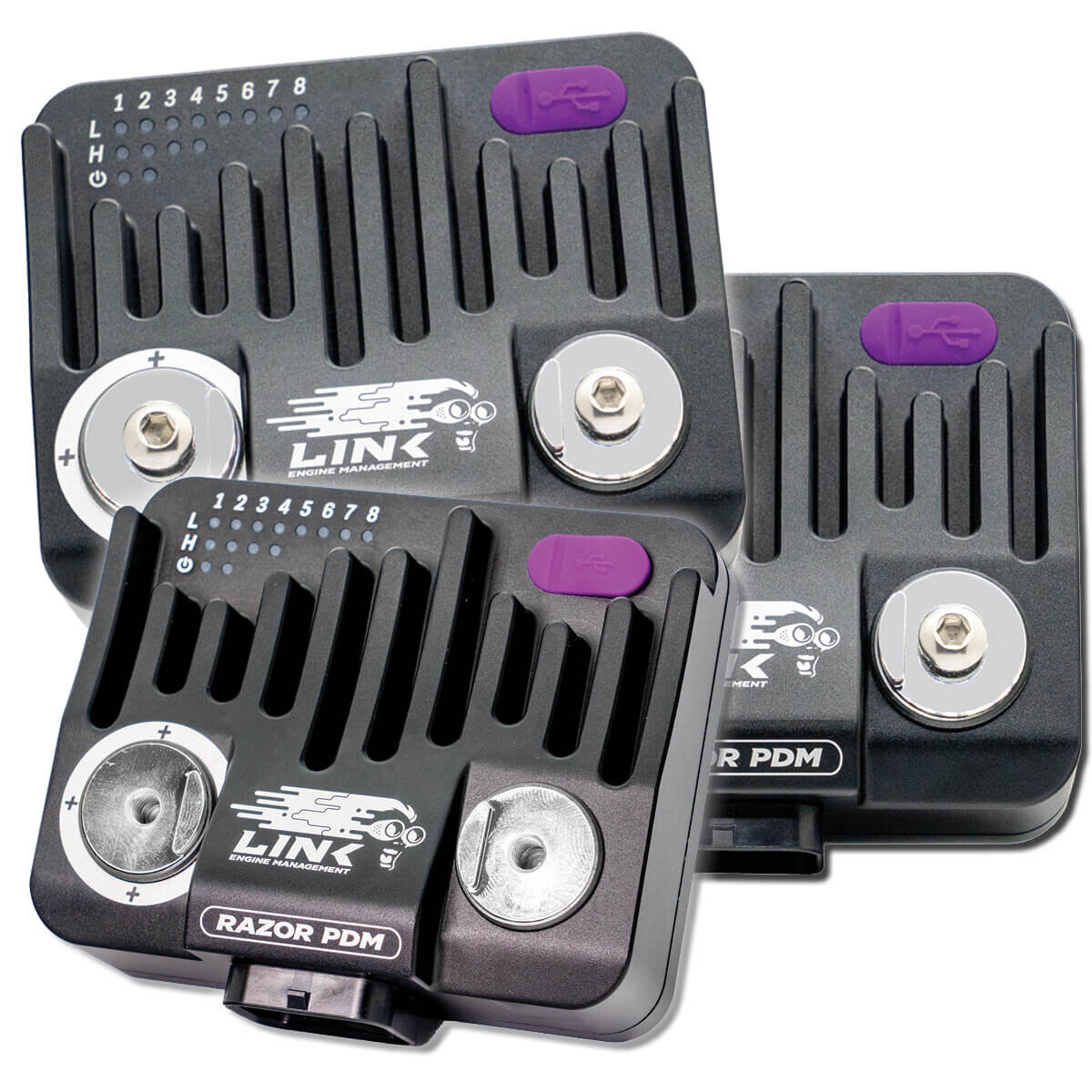

Link ECU Razor PDM Package - Triple Pack
Razor PDM Trio (3 x 135-100)
The Razor PDM enables modern, reliable power distribution and control of electrical systems in the vehicle - with seamless CAN bus integration and intuitive configuration.
Bundle with three Razor PDMs
- The long-awaited Razor PDM from Link is an intelligent Power Distribution Module that replaces conventional fuses and relays, giving you full control over your setup.
- The Razor PDM is a programmable device that intelligently controls the connected outputs using logic. This allows events and commands to be triggered when your vehicle reaches certain parameters.
- It allows you to control components such as fuel pumps, radiator fans, electronic throttles, servos, lighting, and more, as well as monitor analog or digital sensor signals.
- You can fully control the outputs via an analog switch panel, a CAN keypad, or your ECU - increasing reliability and protecting important components from damage.
- Thanks to its excellent thermal properties, the Razor PDM was developed with a focus on vehicle safety while ensuring a more efficient, clean, and reliable system design.
- The compact module can handle up to 100 amps of continuous current and up to 160A temporarily (non-repetitive). For higher demands, multiple Razor PDMs can be connected via CAN or used as a CAN extension for additional inputs and outputs.
- The Razor PDM can also be connected to many other ECU brands and CAN devices when a custom CAN stream is used. For Link ECUs, a pre-configured CAN stream is included in the software, so the connection works immediately.
- Configuration and control are done via the free PDM Link software.
- Scope of delivery:
- • Link Razor PDM
- • Mounting plate and screws
- • Superseal C connector and pin kit
- • USB-C connection cable
- • Protective cap for positive terminal
- • 2 x high-current ring terminals and screws
- • Quickstart guide
Features
- Availability: available
