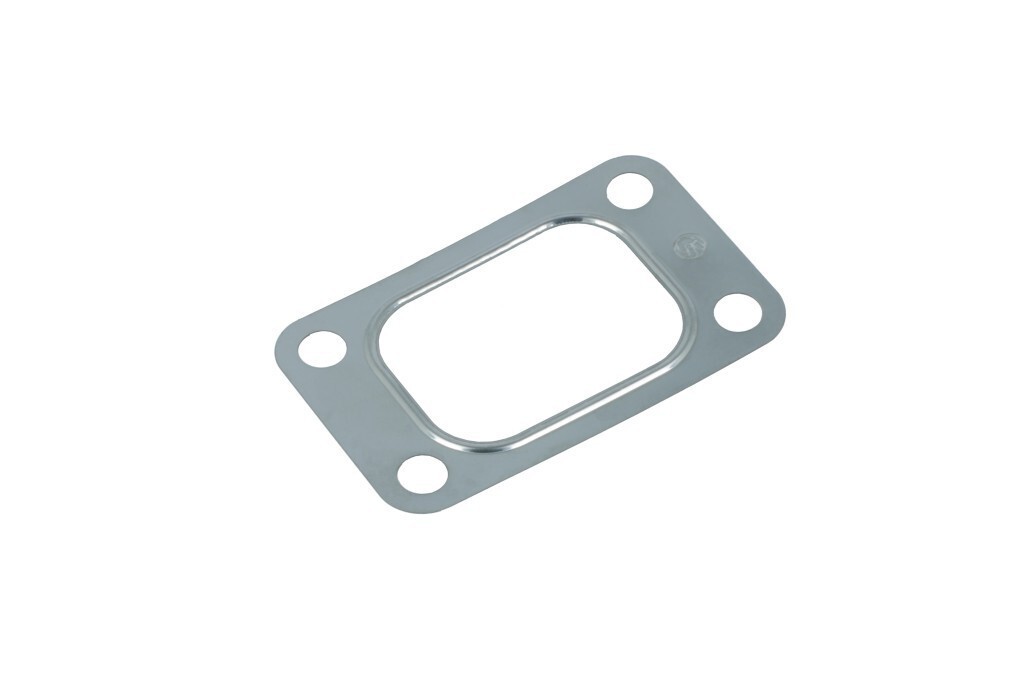

Exhaust Manifold Gasket T25 / GT25R / T28 / GT28R / EFR6258 - EFR7163
Premium metal manifold to turbine gasket
Gasket between exhaust manifold and turbocharger
The gasket is made of stainless steel die-cut. The imprinted grooves put the sealing surface exactly where needed. Please keep in mind that each assembly and disassembly requires a new gasket.
Material: stainless steel
Total dimensions: 93mm x 60mm
Dimensions cut-out: 54mm x 42mm
Hole distance: 73mm x 40mm
For / Fits:
turbocharger T12 to T28 EFR6258 - EFR7163
Garrett T12
Garrett T15
Garrett T2X , T20
Garrett T25 , T25BB
Garrett T28 , T28BB
Garrett GT15
Garrett GT20
Garrett GT25R, GT2554R
Garrett GT28R, GT2860R
Garrett GT28RS, GT2860RS
Garrett GT2871R
Garrett GT2876R, GT28/40R, GT25/40R
Garrett GT3071R-WG (T28 turbine housing)
Garrett GT3076R-WG (T28 turbine housing)
BorgWarner AirWerks S1BG
BorgWarner EFR6258
BorgWarner EFR6758
BorgWarner EFR7163
When unsure whether the gasket fits to your turbocharger, you can send us a sketch of your turbine housing flange for comparison!
- Usage: Manifold to turbocharger
- Model: Single gasket
- Flange type: T25 / T28
- Item weight: 0,10 kg
