Exhaust Manifold Gasket T3 / GT3X / K27 divided / Twin Scroll
Premium metal manifold to turbocharger gasket

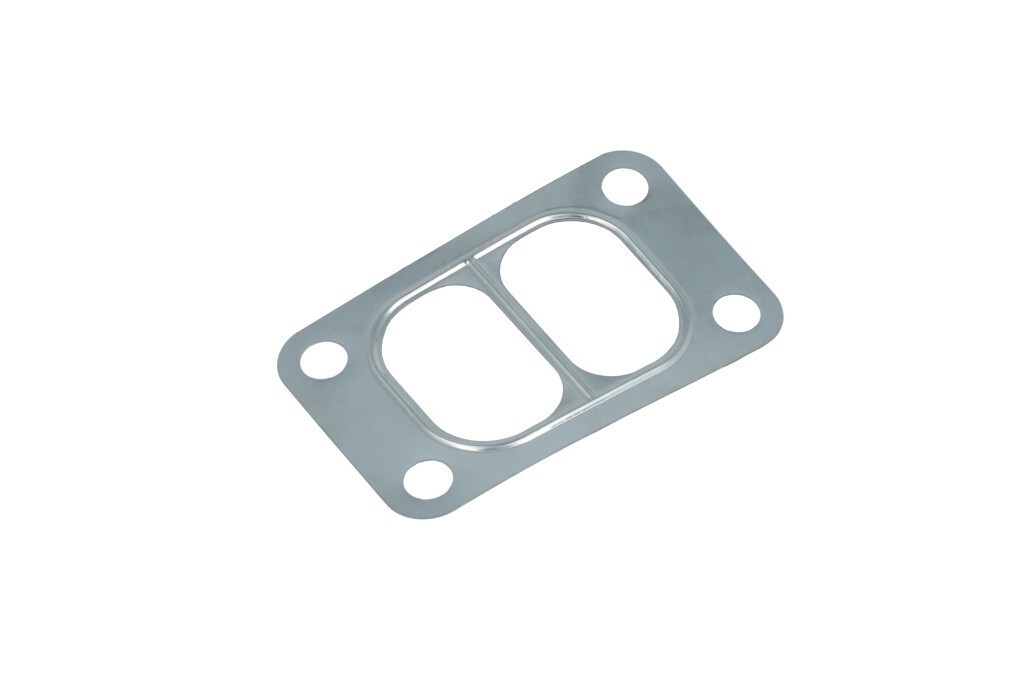

Gasket between exhaust manifold and turbocharger
The gasket is made of stainless steel. The imprinted grooves put the sealing surface exactly where needed. Please keep in mind that each assembly and disassembly requires a new gasket.
Material: stainless steel
Total dimensions: 110mm x 69mm
Dimensions cut-out: 61mm x 44mm (Steg 5mm)
Hole distance: 86mm x 46mm
For / Fits:
turbocharger T3(X) bis T37, turbocharger KKK27 a.o.with divided / Twin Scroll turbine housings
Garrett T3
Garrett T3/T4 (excl. pure T4-turbos)
Garrett GT32
Garrett GT35
Garrett GT37
Garrett GT30R , GT3076R , GT3076RS , GT30RS , GT30R HF
Garrett GT35R , GT3582R , GT35/40R , GT35R HF
Garrett GT3082R , GT30/40R , GT3082R HF
Garrett GT3071R
BorgWarner KKK K27
as well as all other Garrett turbochargers with divided / TwinScroll T3 turbine housings. F.e. GT2554R with T31 turbine housing and similar.
BorgWarner AirWerks S200 (not S200SX)
If you are unsure whether this gasket fits to your turbocharger, just draw a sketch of your turbine entry flange and hand it to us for comparison.
- Usage: Manifold to turbocharger
- Model: Single gasket
- Flange type: T3 divided / TwinScroll
- Item weight: 0,40 kg
