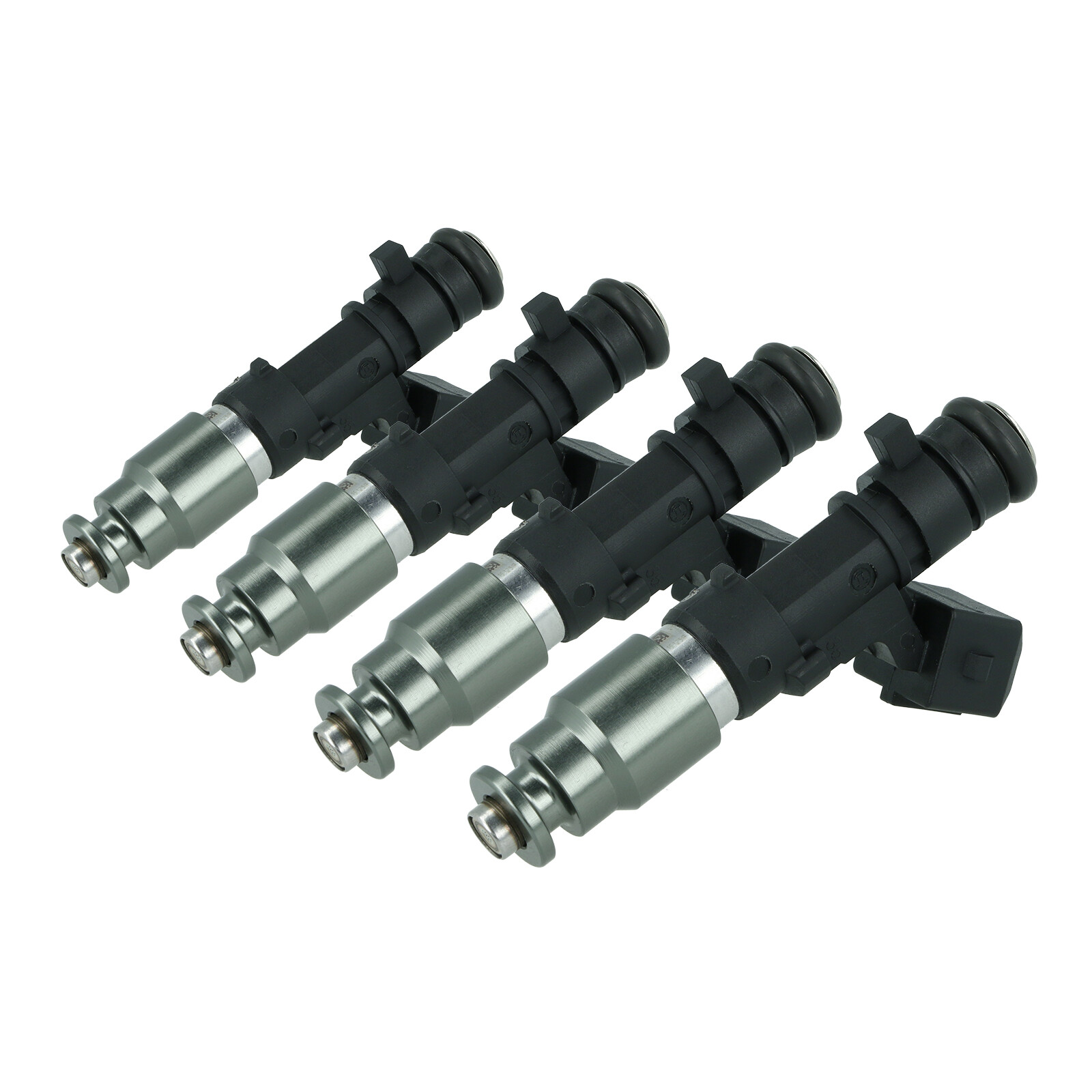

Matched set of 4 Bosch fuel injectors - 380ccm - EV14 68mm - Standard

Perfectly matched original Bosch EV14XT injectors with adapter in set

By us in-house matched set incl. adapters for bottom of EV14XT fuel injectors - comes with report - high resistance - thin design

Note: These injectors set comes with bottom adapters. This converts an EV14XT fuel injector with snorkel into a replacement injector for an EV1, EV6, EV14L, EV14M or EV14L fuel injector.

We offer for this injector design with snorkel various adapters for bottom and top. Thus, these fuel injectors can then be used on numerous vehicles, intake manifolds and fuel rails!

Flow: 380cc at 3 bar
Design: EV14XT / thin
Spray pattern: 6-jet fine
Ohm value: 12 - 15 Ohm (high-impedance)
Manufacturer: Bosch
Plug connector: Jet-tronic
Adapter: Bottom
Length center O-ring to center O-ring: 68 mm (incl. adapter)
Total length over all: 78 mm (incl. adapter)
Quantity: Set of 4 matched Bosch fuel inectors

Price per matched set!

Important note: All injectors have a deviation of the specified flow rate of up to 7% from the manufacturer (Bosch, Siemens, etc.).Therefore, it may happen that a ready-matched nozzle set does not have exactly the specified flow rate. This is the case with all manufacturers of fuel injectors!
Injector sets are matched by us in-house. Thereby we measure all injectors which we have in stock on our own ASNU machine and select the matching injectors so that there is a variance of 2-3% at maximum. You will probably not receive such an adjustment if you purchase single injectors or an imported matched set. Here you can trust on getting from us a matched set with quality standard and German accuracy. Of course you will receive the respective report from us.

Note regarding plagiarism

Injectors are often counterfeit. From the outside they are indistinguishable from the original and have often the original part number. All copies of these injectors which came across our hands had besides poor spray pattern and incorrect flow rate leakage !. These injectors distribute the fuel inside the engine bay and can cause a fire in the engine bay in worst case. This is mostly a slow process and is not noticed during first test rides. Don't make false economy - trust genuine injectors of our portfolio!

We also deliver matched sets

We also deliver our injectors as matched sets. The injectors have a variance of 5% by the manufacturer. We do in-house flow tests and select the best matching injectors for you. The sets for 4, 5, 6 and 8 cylinder engines you can find in menu. Other sets are available on request.
