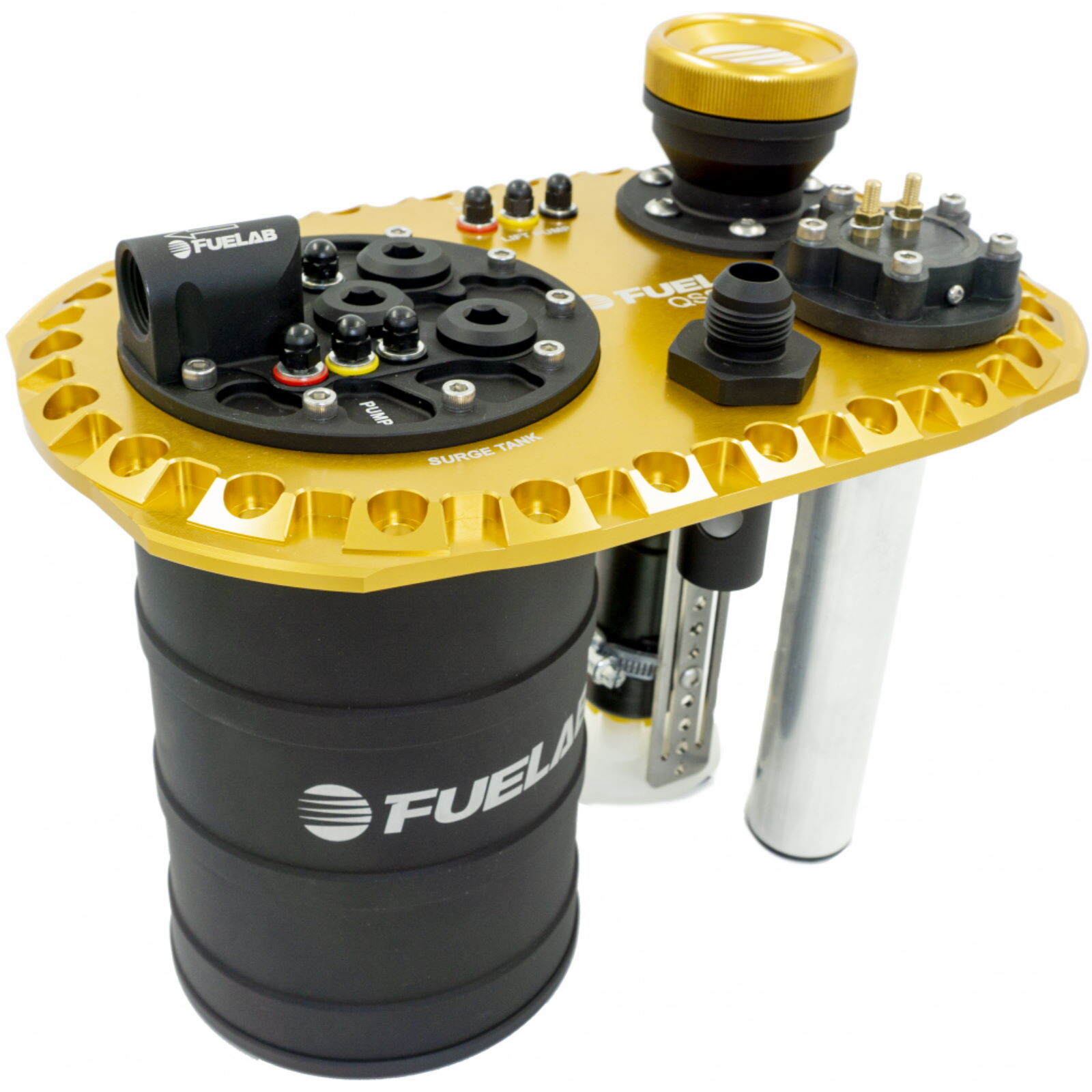

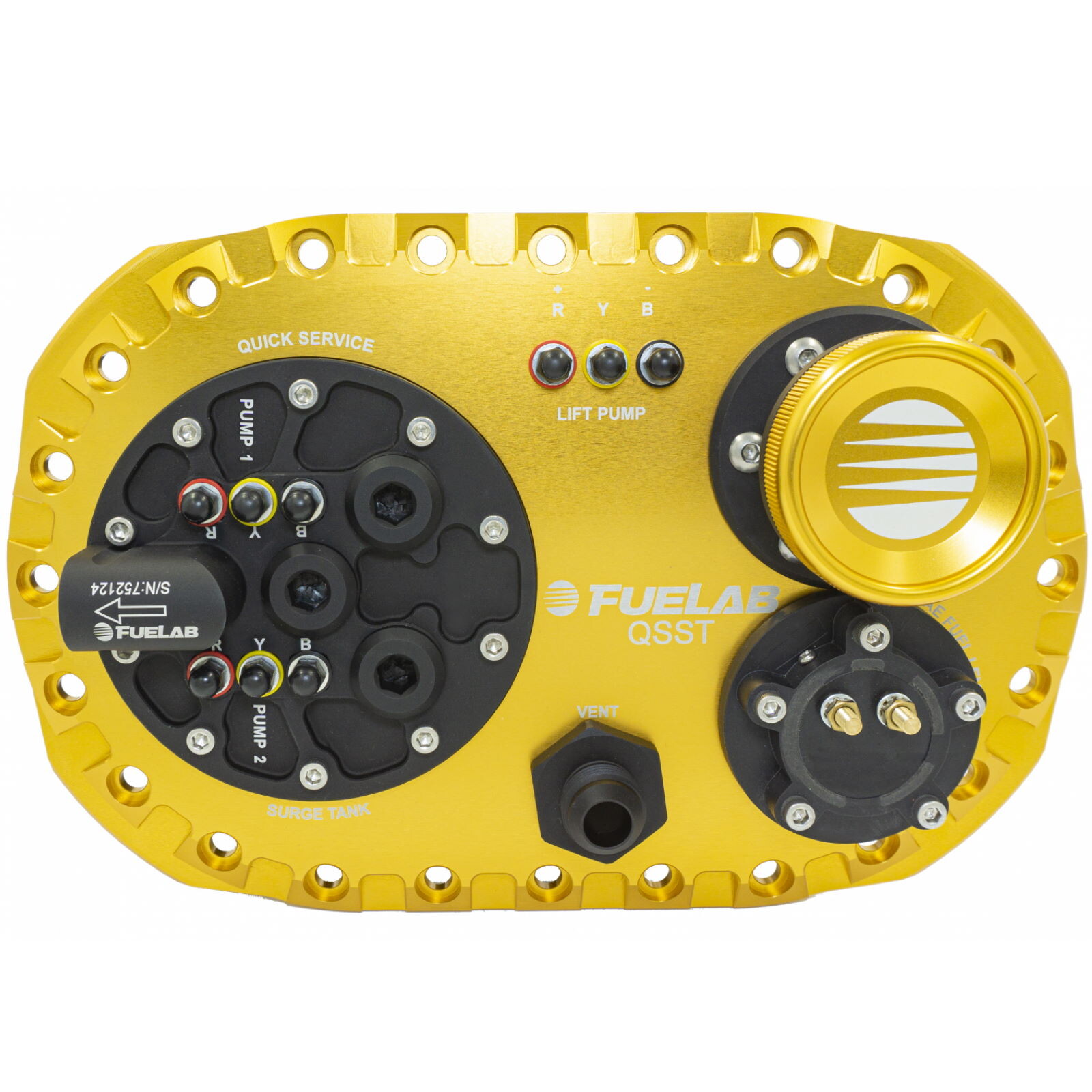

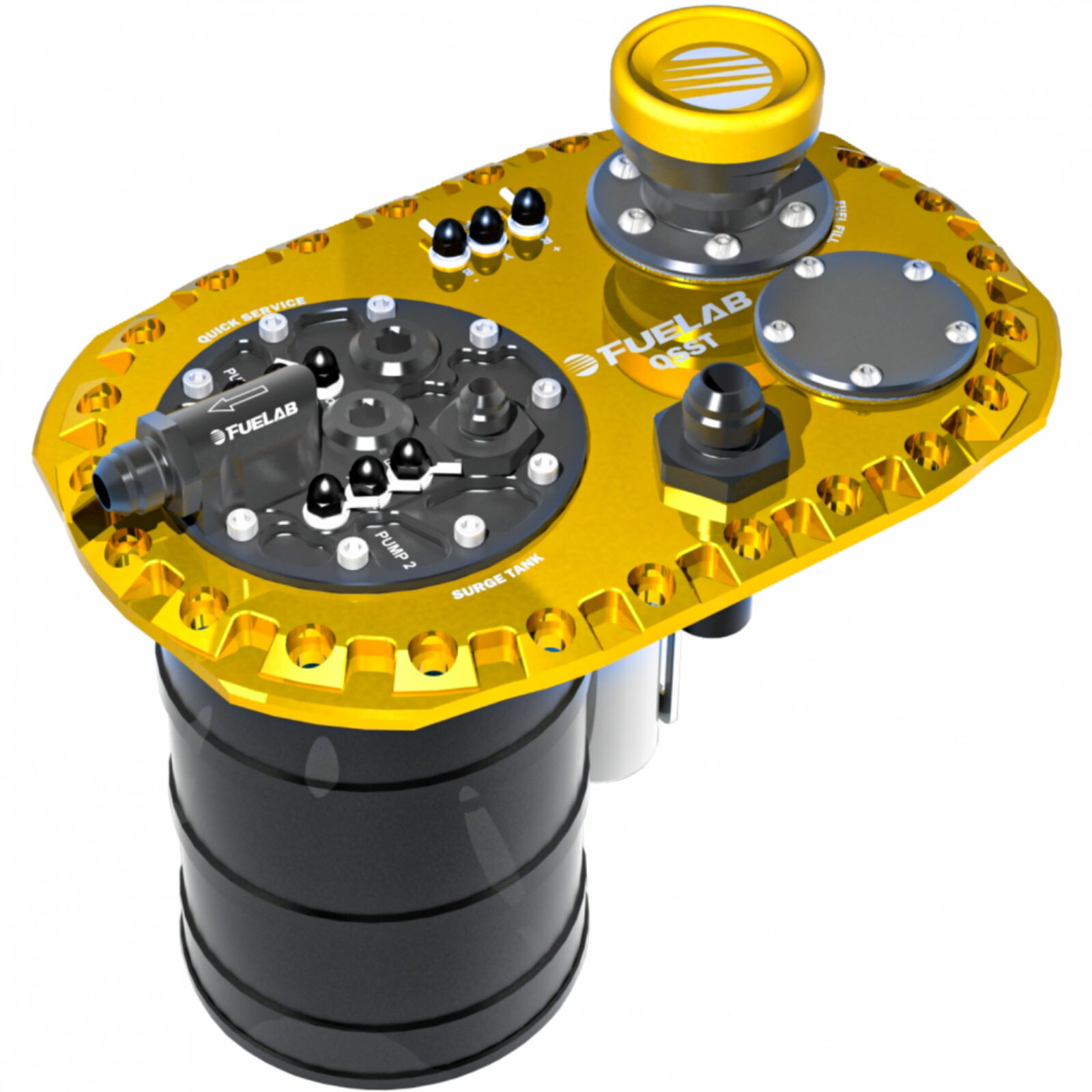

Quick Service Surge Tank (QSST) - gold

Fuelab new fuel catch tank technology with 24 Bolt fill plate bolt pattern

1 single lift pump, up to two different surge pumps, remote fuel fill, fuel level sensor and a fuel tank vent kit

WE ARE PROUD TO ANNOUNCE THE NEW FUEL CELL COMPATIBLE UNIT “QUICK SERVICE SURGE TANK (QSST)

This fuel cell “QSST” comes base as a “bare” unit without a lift pump and with an empty fuel pump hanger in the surge tank. You can install one single lift pump, up to two different surge pumps, remote fuel fill, fuel level sensor and a fuel tank vent kit, remote fuel fill, fuel level sensor and a fuel tank vent kit. The QSST is compatible with both brushed or brushless lift and surge pump options. Limited lifetime warranty!

FEATURES:

• Quick Service Surge Tank for fast pump service
• Provides protection against fuel slosh from standard fuel cell pump hangers
• Fits the industry standard 24 Bolt fill plate bolt pattern
• Gasoline, Ethanol(E85), and Methanol compatible
• Rollover flap protection
• Brushed or brushless pump options (optional)
• Fuel tank vent with rollover protection
• Gaskets and hardware included
• Stock with empty fill neck hole to give you options
• Optional remote fuel fill
• Optional fuel level sensor
• Limited Lifetime Warranty!

WHAT MAKES FUELAB BETTER?
The QSST (Quick Service Surge Tank) is exactly that. You can service your surge tank pumps in minutes. With only 10 bolts on top, you can pull the surge tank pump hanger out of the top of the cell and service your pumps quickly! Whereas most competitors require you to pull the entire 24 bolt plate, then remove the surge tank housing from the bottom to finally access your pumps. The unit is compatible with brushed and brushless pumps for both the lift pump and the surge tank pump(s), or a combination of the two using the same base plate. Our base plate comes standard in two enticing anodized colors, titanium and gold.

Kit Inclues:

• FUELAB QSST Base plate and Surge Tank
• Fuel tank vent with rollover protection
• Lift pump hanger with pump mount
• 3-Terminal for option of hrushed or brushless lift pump
• Fuel level sender blockoff plate and gasket
• Open fuel filler hole for customization (gasket Included)
• Empty dual pump fuel surge tank hanger (fits brushed or brushless pumps)
• Corrugated fuel hose for lift pump into surge tank
• 1/4"-28 hardware to mount to most fuel cell nut rings

Dont forget to add on your FUELAB Fuel Filler Kit, Fuel Level Sender, and your Fuel Cell Vent Kit!

FUELAB has your solution to cure fuel starvation
With over 10 years in brushless fuel system innovation for the automotive aftermarket, FUELAB continues to bring new and cutting edge products to meet the most demanding applications. Their latest entry is the 627 Series fuel surge tank systems. For maximum efficiency delivering fuel in circuit, drift and off-road use where fast changes in G forces are an issue, this system eliminates fuel slosh problems even with low fuel levels. Compatible with gasoline, ethanol and methanol fuels. Designed, manufactured and tested in their facility in Collinsville, IL, USA.
