Single Port Actuator 1,0 bar / 14 psi
Internal Single Port Wastegate Actuator BorgWarner B2 Single + Twin Scroll
For Single + Twin Scroll EFR 6258, EFR 6758, EFR 7163
Designed as a stock replacement for the B2 frame Single + TwinScroll EFR range of turbos, with 160mm rod. Turbosmart Internal Wastegate Actuator provides better turbo response and greater sensitivity when managing boost pressures.
Features:
- Silicone diaphragm with Nomex reinforcement to withstand high temperatures.
- High grade, billet aluminum construction.
- Stainless steel rods and connecting clevis for corrosion resistance.
- Locking Collar design cap allows for quick spring changes.
- Ideal for use with any Turbosmart boost controller.
Fits to:
EFR7064 Single+Twin Scroll
EFR7670 Single+Twin Scroll
EFR9174 Single+Twin Scroll
EFR9180 Single+Twin Scroll
Boost: 1,0 bar / 14 psi

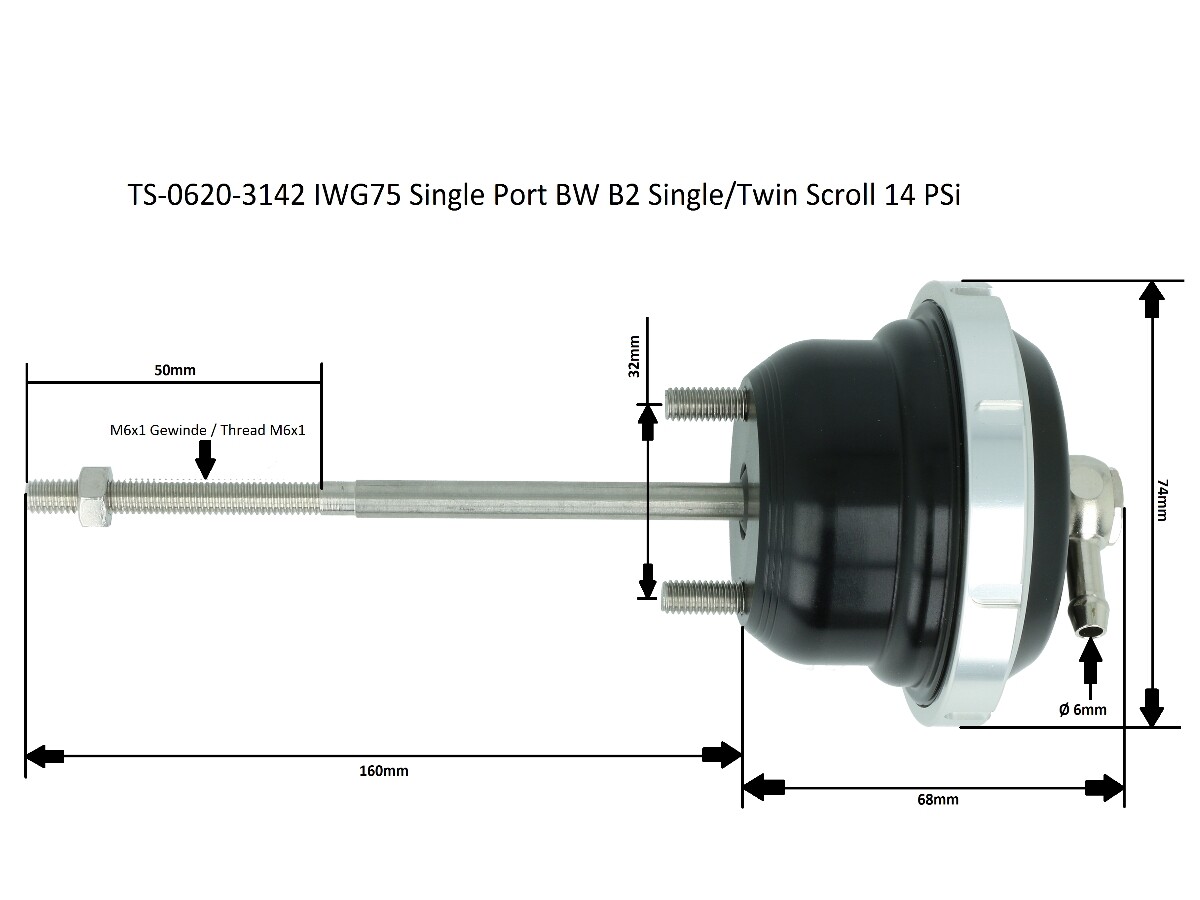

Geomtric dimensions:
Rod thread length: 50mm
Total length of rod: 160mm
Actuator diameter: 74mm
Actuator length: 68mm
Connection pressure line: Ø 6mm
For further questions please contact our technical support team.
