High quality SPA Turbo manifold

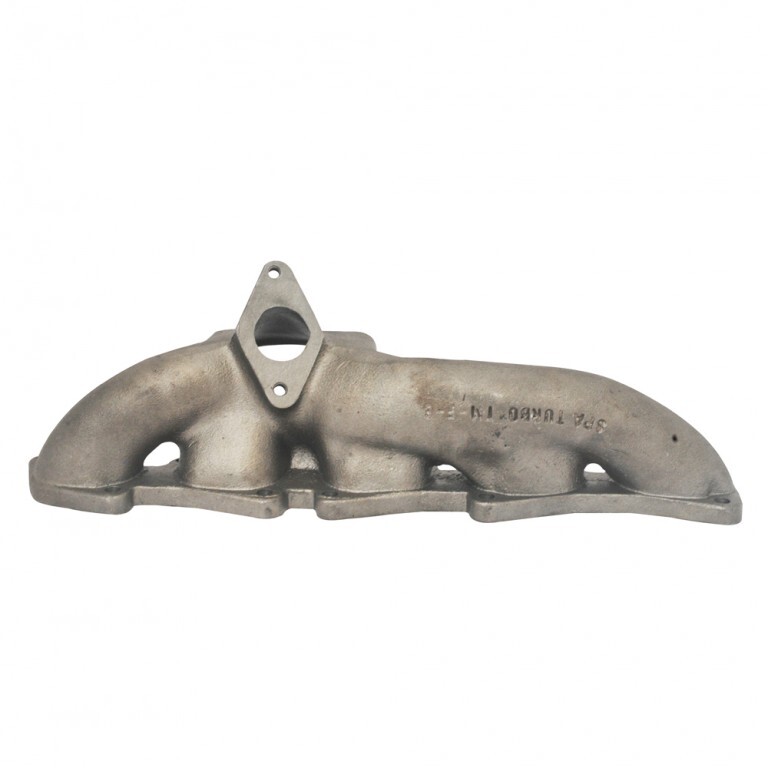

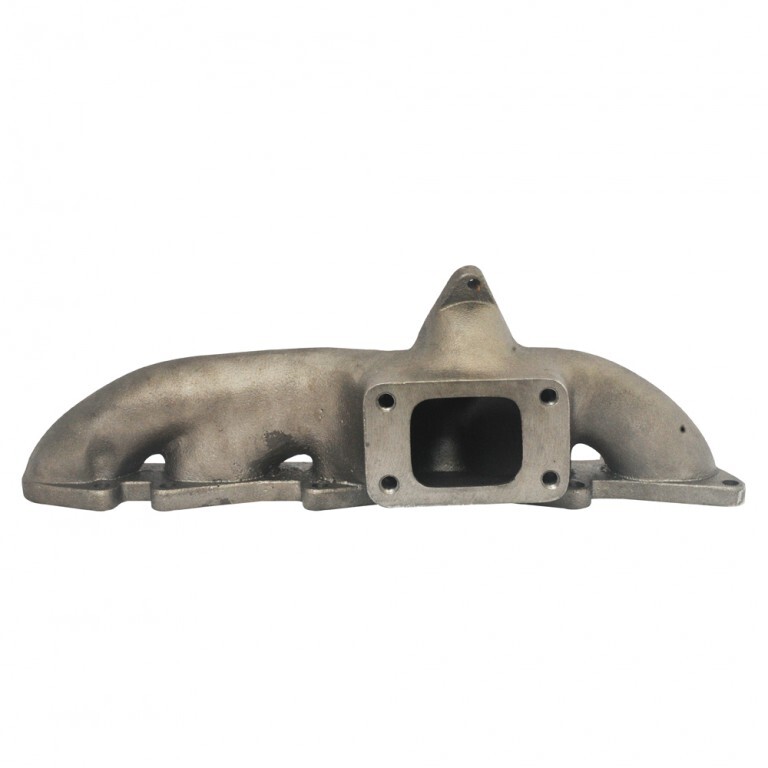

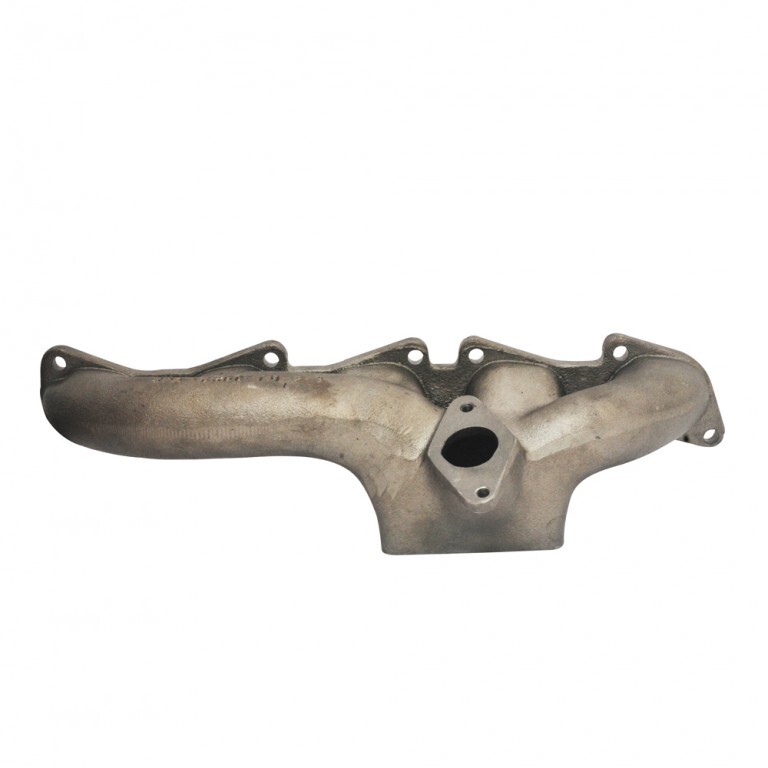

Turbo Manifold for 5-cylinder 20V 2.0/2.4 Lancia, Fiat with T25 flange and TiAL Wastegate flange
Best materials and processing for optimal fitting and performance
SPA manifold for turbo conversions or turbo upgrades are designed for a optimized exhaust flow and maximum power.
The SPA Turbo manifolds are developed with a long time of racing experience and usage of the best technology. The used materials have been specifically selected for the application to ensure optimum performance and a long life.
Each manifold model was used in at least one of the specified vehicle and over a long period (partly even in races) tested.
SPA Turbo has already established with its performance products in the US as a renowned brand and it is also here in Germany highly recommended by an excellent price-performance ratio.
Material: cast
flange: T25 flange with bigger hole for better flow rate (please note: adaption of gasket and exhaust housing is needed)
Wastegate flange: 2 bolt wastegate flange for TiAL 38mm or Synapse 40mm
Aditional parts necessary:
TiAL 38mm or Synapse 40mm wastegate or block off flange if internal wastgate is used
notice
charger sits on the opposite of the original position for better downpipe flow
Technical drawing:
- Availability:
