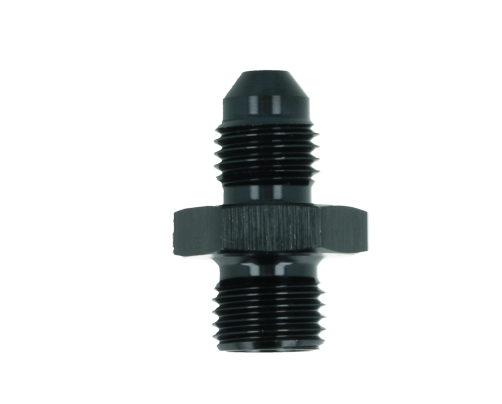

Screw-in Adapter M12 x 1,25 to Dash 4 / -04 AN
Hydraulic adapter metric to external thread dash
CNC milled aluminum
With our screw-in adapters you have the option to build yourself of our hydraulic lines, also when there are only vehicle-specific metric connectivities. This is particularly the case with European vehicles. All adapters are machined CNC from aluminum. When designing the adapter has been taken to achieve maximum drilling with maximum wall thickness. Thus, each adapter is sufficiently stable and has the greatest possible flow.
Material: aluminium
Colour: Black
Thread A: M12x1,25
Thread B: Dash 4 / -04 AN
Length overall: 33mm
Length thread A: 11mm
Length thread B: 12mm
Bore: 4mm
Wrench size: 17mm
- Model: Screw-in Adapter
- Thread: M12-04 AN / Dash 4
- Item weight: 0,02 kg
