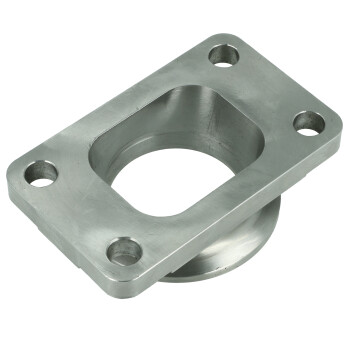

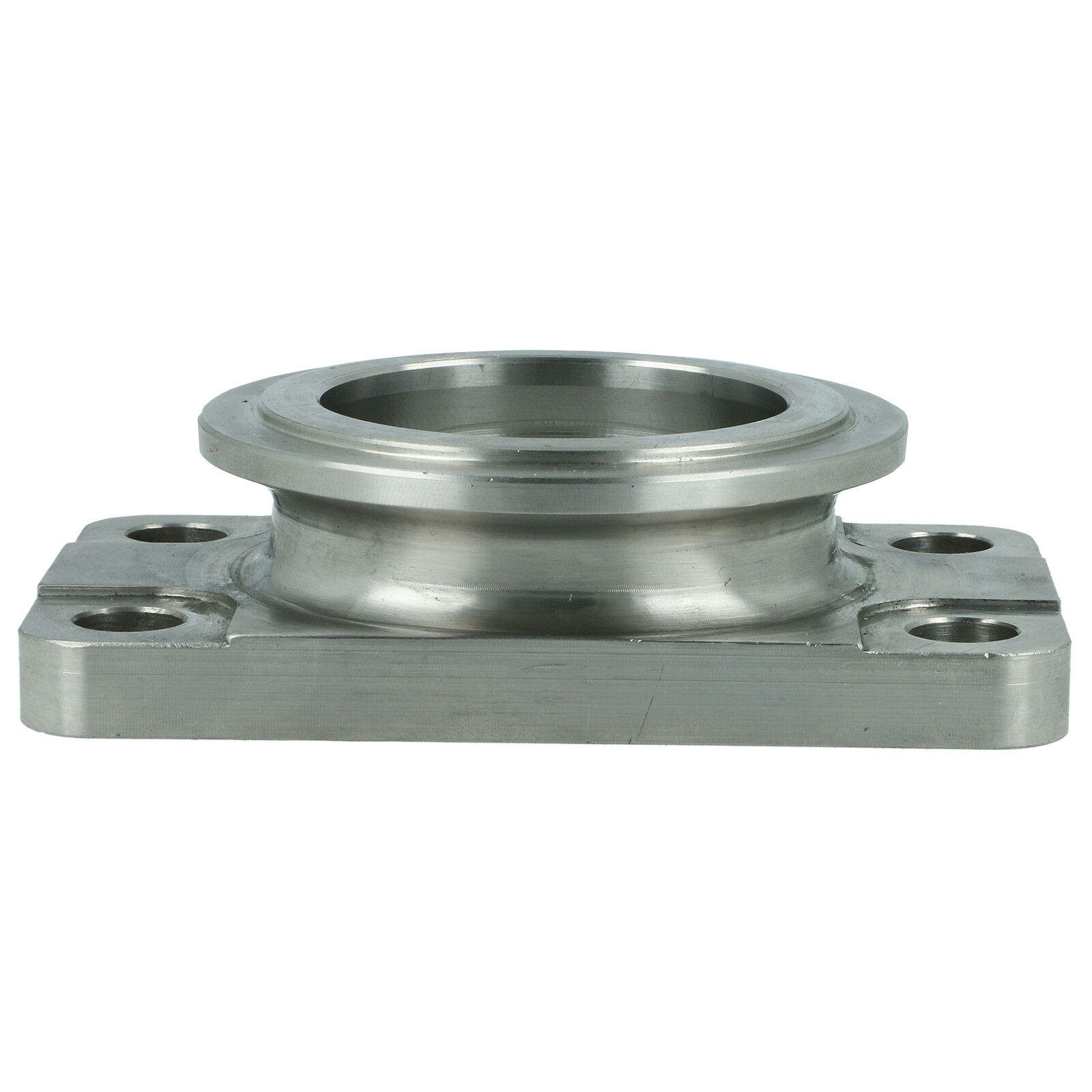

Manifold flange adapter T3 to V-Band turbo
Stainless steel adapter flange for VBand exhaust housing to T3 manifold
High-quality stainless steel turbo flange adapter V-Band turbocharger to T3 manifold
You have a new exhaust housing/turbocharger with V-Band inlet but a turbo manifold with T3 flange? Then here is the solution:
The TurboZentrum has now produced a high quality stainless steel adapter flange from T3 manifold flange to V-Band exhaust housing (inlet). The adapter is CNC machined of high premium stainless steel and is therefore extremely heat resistant (1200°C) and thanks to the CNC process very flow-favorable.
The flange is used to mount a turbocharger with V-band inlet flange on the exhaust housing on a turbo manifold with T3 flange. This makes it very popular with all EFR 6258, EFR 6758, EFR 7163, Garrett GTX29-35 / G25-550 / G25-660 / G30-660 / G30-770 / G30-90 / G25-900 / G35-1050 V-Band exhaust housings.
The TurboZentrum offers a wide range of turbo flanges, whether manifold, turbocharger or downpipe. We also supply pipe bends and headers for the construction of turbo manifolds. All flanges are cast, water-jet cut or CNC milled in order not to warp during the cutting process. As well as 100% flat and high quality. We select the material thickness from experience in the optimal strength.
Material: 1.4841 stainless steel fine casting
Height:N.a.
Flange on turbocharger: V-Band
Flange on turbo manifold: T3
For / Fits:
All turbo manifolds with T3 flange
And all turbochargers exhaust housings with V-band inlet flange on exhaust housing, for example:
Garrett GTX29
Garrett GTX30
Garrett GTX35
Garrett G25-550
Garrett G25-660
Garrett G30-660
Garrett G30-770
Garrett G30-900
Garrett G35-900
Garrett G35-1050
EFR 6258
EFR 6758
EFR 7163
And many more like:
Precision Turbo
Turbonetics
TiAL GTX28
TiAL GTX30
TiAL GTX35
- Flange type:
- Availability:
- Material:
- Model:
