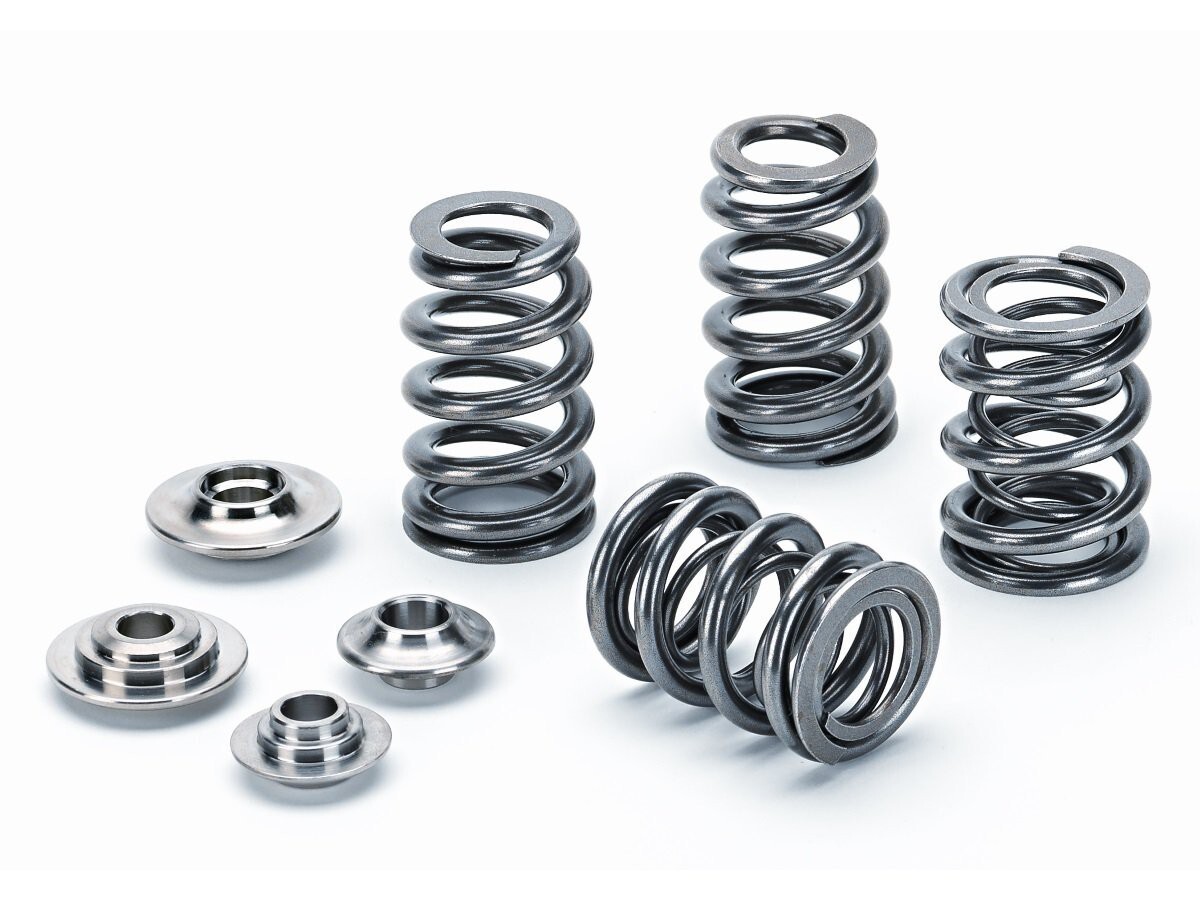

Supertech valve spring kit SPRK-TS1015-MR
Dual valve spring kit Toyota
34,93kg/35,50mm (77 @ 35,50)
Dual valve spring kit 34,93kg/35,5mm SPR-TS1015 + RET-TS60MA2 Req flattening Valve Guide boss for innerspring to 0160" or less
With the help of Supertech valve springs & titanium valve spring retainers, higher RPM's can be run. It also eliminates valve flutter at high RPM's. At high RPM's, the rocker arms can break and the valve springs can jam. This can lead to engine damage! The Supertech valve springs have an extra adjusted spring rate.
Advantages:
- The valve train becomes lighter thanks to the titanium valve spring retainers
- The motor revs up faster
- Higher motor RPM's can be run
- The valve train becomes more stable during power increases
Likewise, we offer the full range of Supertech:
Valve keepers, mechanical tappets (rigid tappets) with matching shims and forged pistons.
Make: Toyota
Fits: Toyota 3SGTE
Outer spring external diameter: 27,50mm
Outer spring internal diameter: 20,00mm
Inner spring external diameter: 20,00mm
Inner spring internal diameter: 15,20mm
Pressure valve seat: 34,93kg/35,50mm
Pressure seat: 100,7kg/12mm
Max. lift: 14,00mm
Coil bind (under stress): 20,70mm
Rate in lbs./mm: 12,10
retainers: RET-TS60/MA2 Req. Flatening of valve guide boss +
Seat locator: SEAT-TS1015/2 + OE SEAT retainers: RET-TS60/MA2R: Shim Under Bucket version
Supertech's valve springs are made of an extreme pure chrome-silicon-vanadium-steel alloy to assure a very good durability for performance motors with high revolutions. They are developed with the use of computer simulations to prevent material fatigue under extreme conditions. The holder are made of a certified titanium alloy and CNC milled for the perfect fit to provide a long durability.
- Vehicle manufacturer: Toyota
- Engine Part: Spring Kits
- Availability: order on customer request
