Top-Mount Intercooler Kit Mishimoto for Subaru WRX / 08-14 / Silver Intercooler / Blue Silicone

279mm x 279mm x 89mm

Available Options:
Silver intercooler, black intercooler
Black, blue, or red hoses

Design Type: Bar-and-Plate
Tube Construction: Polished aluminum
Overall Length: 470mm
Overall Height: 318mm
Overall Width: 127mm
Core Length: 279mm
Core Height: 279mm
Core Width: 89mm
Core Dimensions: 279mm x 279mm x 89mm
Inlet: 48mm
Outlet: 70mm
Fin Specifications:
Internal: 6.5mm fin height, 2.8mm fin angle
External: 6.5mm fin height, 1.7mm fin angle
Tank Wall Thickness: 3.5mm
Weight: 9.5kg

Chassis Numbers:
GR
GV
Engine Code:
EJ255

Intercooler / Throttle Body Coupler Specifications:
Inner Diameter: 70mm
Outer Diameter: 80mm
Wall Thickness: 101.6mm

Note:
This kit is designed for 250-350 PS at the wheels with a maximum limit of approximately 400 PS at the wheels or 2.06 bar of boost pressure. Higher PS or pressure may require a larger front-mount intercooler.

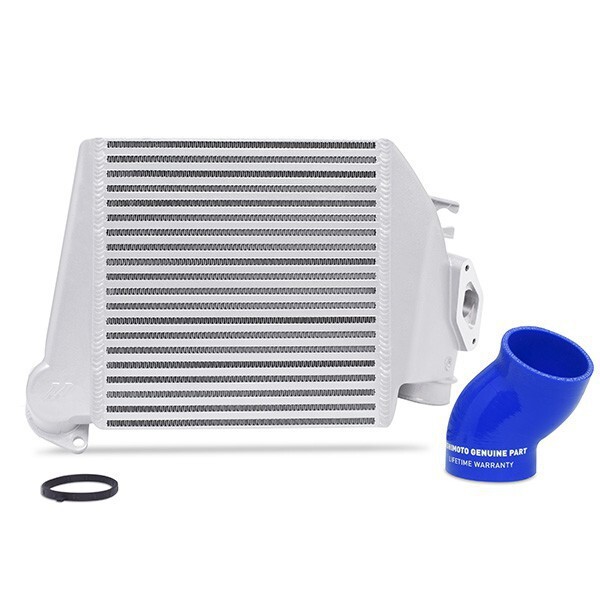

Purchase Includes:
(1) Top-mount intercooler
(1) Intercooler to throttle body hose
(1) Turbo to intercooler O-ring seal

Fits:
08-14 Subaru WRX
05-09 Legacy GT
05-09 Outback XT
09-13 Forester XT

Are you looking for a way to reduce the high intake temperatures of your WRX—modified or not? The solution is the directly fitting Mishimoto WRX Top-Mount Intercooler, designed specifically for the Subaru WRX from 2008 to 2014. The OEM WRX intercooler is prone to heat soak and even failure of the plastic end tanks above 1.24 bar. Mishimoto engineers have spent months designing and testing this new WRX Top-Mount Intercooler to ensure optimal performance both on the street and track.

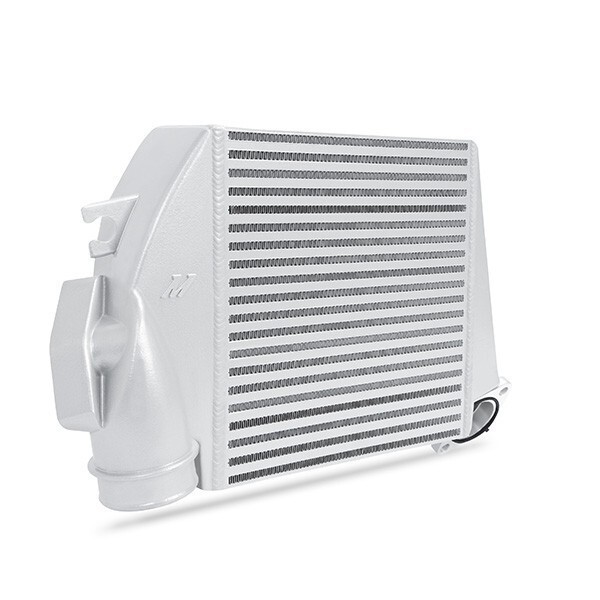

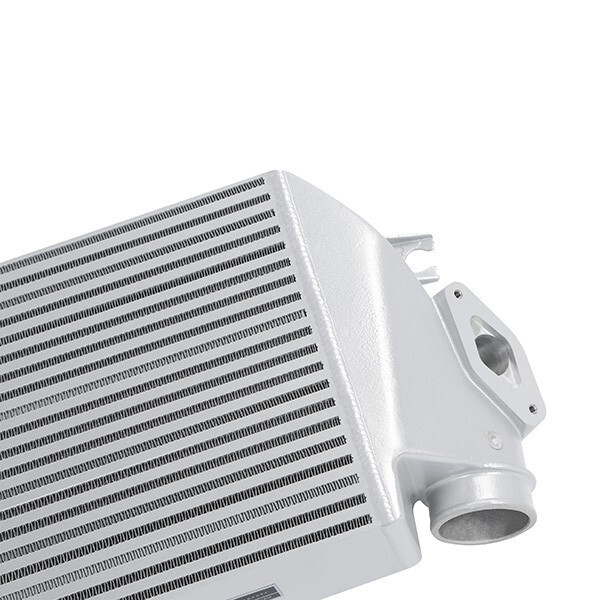

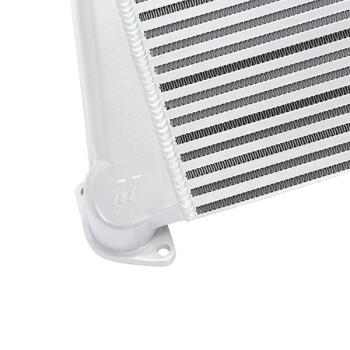

This WRX Top-Mount Intercooler features durable, cast aluminum end tanks, TIG welded for a highly efficient and dense bar-and-plate core. The Mishimoto WRX intercooler has a 95mm core and a total volume of 9570cm³. Thanks to this volume and a very dense, staggered fin angle, we are able to optimize heat transfer and support vehicles with up to 400 PS at the wheels. This WRX intercooler has undergone rigorous testing, showing a 6.67°C temperature drop as well as +6 PS at the wheels and +8 N*m power increase on our unmodified test vehicles. The installation is simple, requires no modifications of any parts in the engine bay, and can be completed in under 30 minutes.

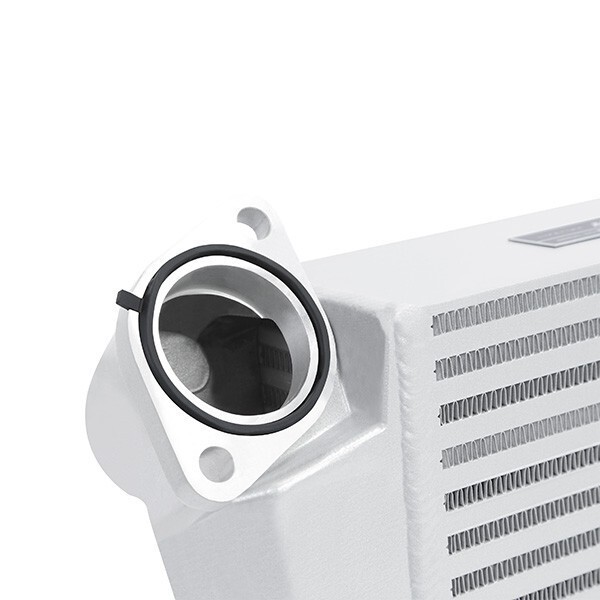

This top-mount intercooler comes with a new turbo to intercooler O-ring seal and a Mishimoto silicone connector for the throttle body. With these WRX parts, you won't need to gather any additional accessories for installation, and our products are designed for years of reliable service. This WRX Top-Mount Intercooler is available with a durable powder coat in silver or black.
