V-Band Flange (Outlet) GTW36 GTW38 Turbine Housings
Downpipe Flange for Garrett GTW T4 Turbine Housings
V-Band Flange fits for Garrett GTW3684 / GTW3684R / GTW3884 / GTW3884R Exhaust Housings
Note: Does not fit for GTW turbine housings with T4 flange and 0.96 / 0.70 A/R!

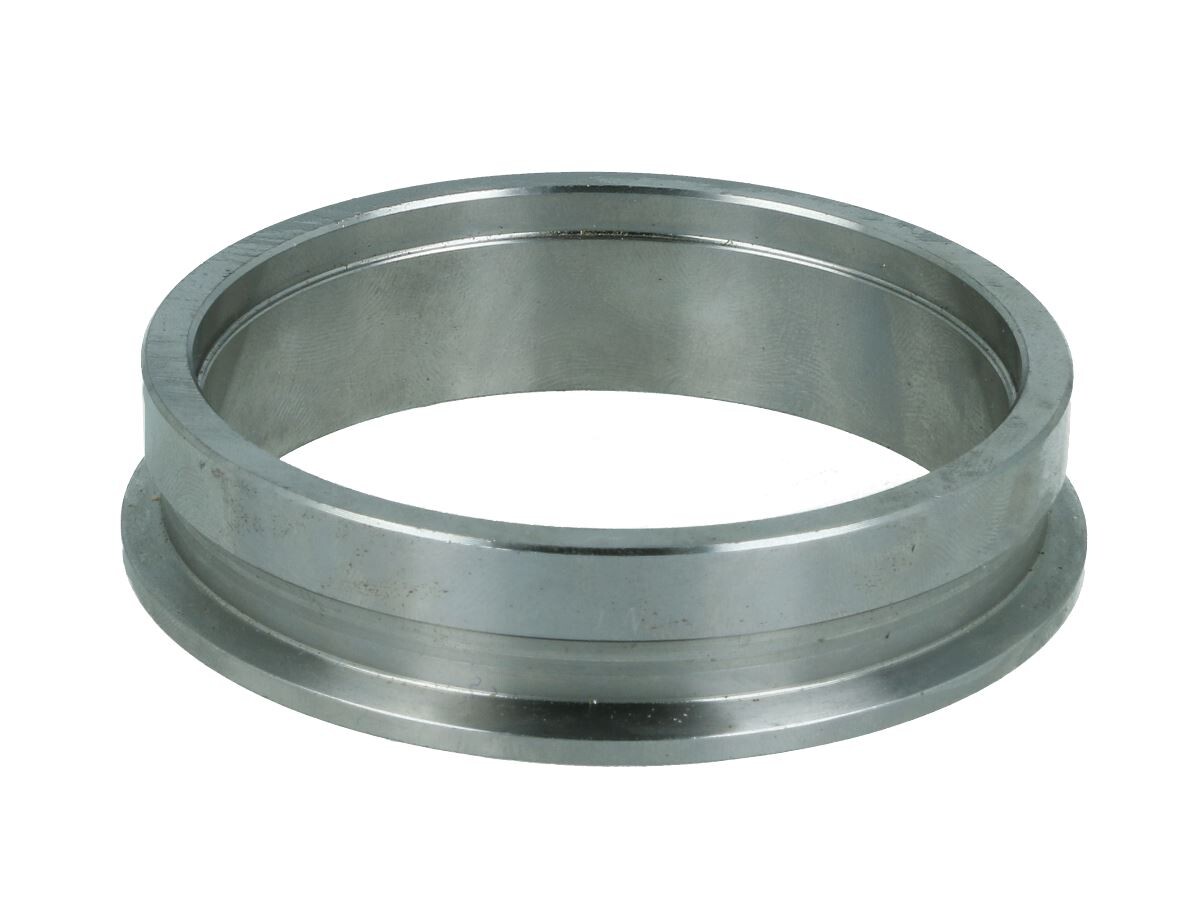

High-quality downpipe V-Band flange (outlet) 76mm (3.0"), fits for Garrett GTW3684(R) and GTW3884(R) turbine housings. This V-Band ring is required if you like to connect a downpipe with an original Garrett GTW exhaust housing. The V-Band flange will be welded to the end of the downpipe and then clamped with the turbine housing (see list of housings applications below) using our stainless steel V-Band clamp (446397-0364). This V-Band ring is CNC maschined and very good weldability.
Garrett item number: 774175-0001
Application: Turbine housing outlet to downpipe connection
Material: Steel
Fits fo turbine housings (outlet / downpipe side):
GTW3684 - 844669-0005
GTW3684 - 844669-0006
GTW3684 - 844669-0007
GTW3884R - 844669-0010
GTW3884 - 844669-0010
Fits for Super Core turbocharger (outlet / downpipe side):
GTW3684R - 841297-5002S
GTW3684 - 841691-5002S
GTW3884R - 841297-5008S
GTW3884R - 841297-5009S
GTW3884R - 841297-5010S
GTW3884 - 841691-5012S
GTW3884 - 841691-5013S
GTW3884 - 841691-5014S
- Usage: Turbocharger to Downpipe
- Model: single flange
- Product Type: V-Band
- Turbocharger: GTW3684GTW3684RGTW3884GTW3884R
- Item weight: 0,30 kg
