-04 AN / Dash 4 union pipe connection (1/4" pipe) fitting - black



Thread to pipe dimension
5,21 €
incl. 19% VAT , plus shipping costs
Status:
will be reordered for you**

-04 AN / Dash 4 union pipe connection (1/4"pipe) fitting

High quality pipe connection union hydraulic fitting in black

For oil lines, fuel lines and similar

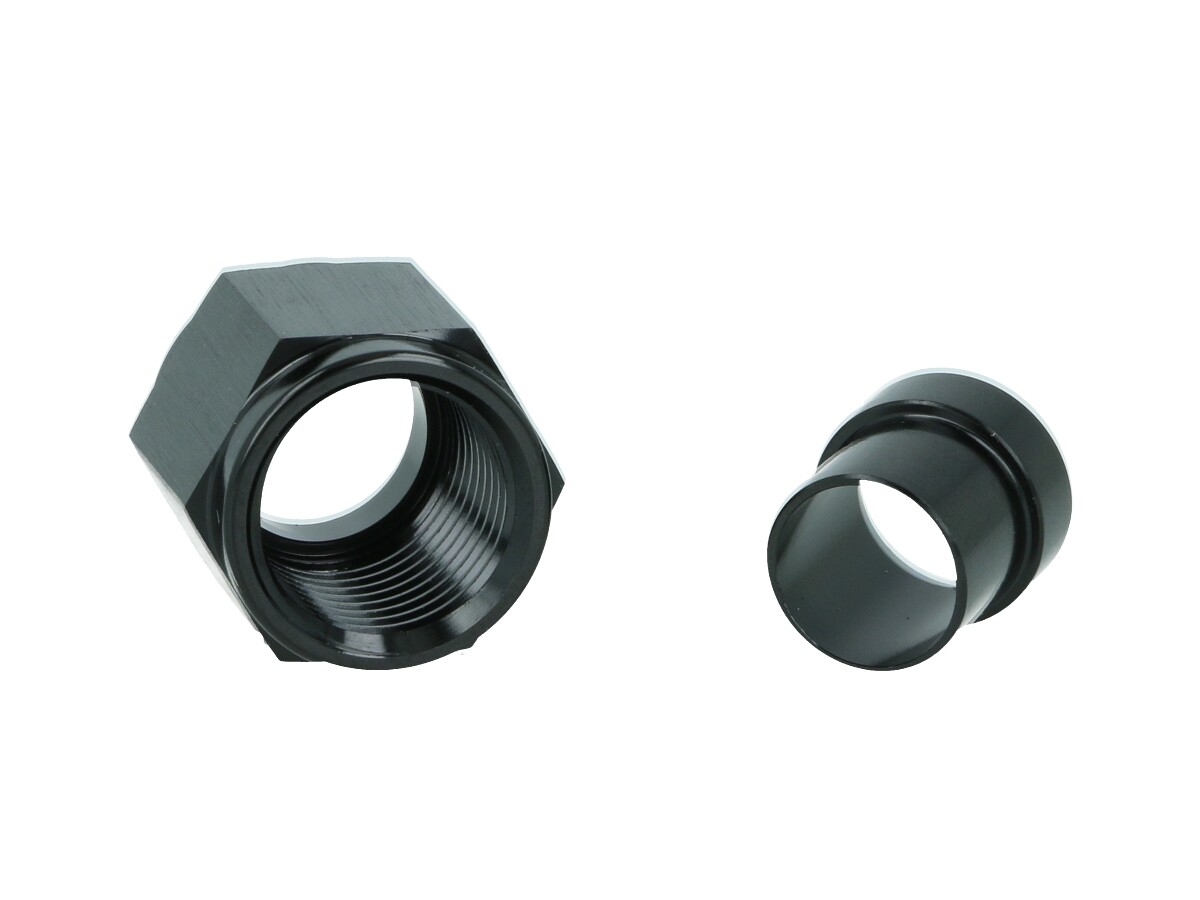

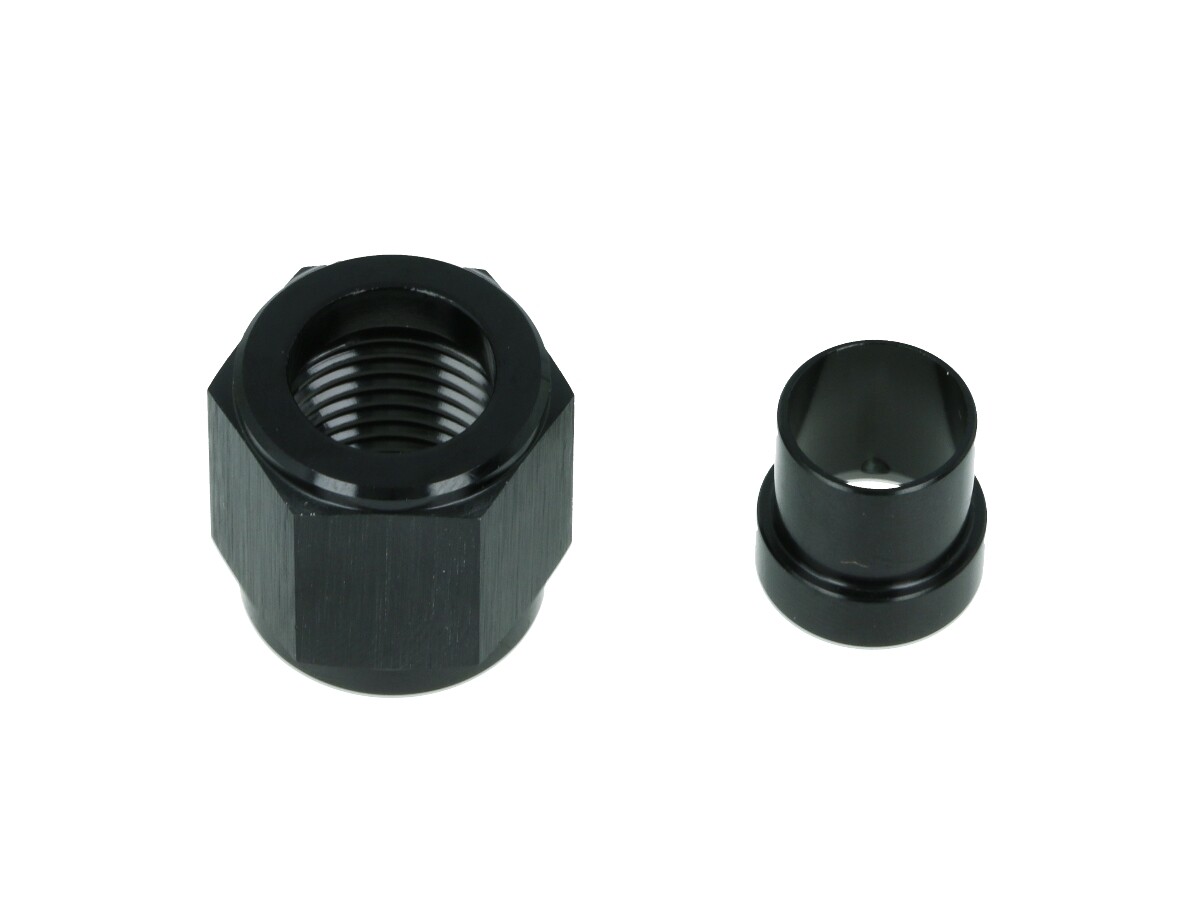

NOTE: The connection consists of a union nut and a compression sleeve. The tube must be provided with a 37° crimp on the end piece!

With our union nuts for pipings, they can provide high pressure stable hydraulic lines, e.g. manufacture oil, water and fuel lines yourself. We recommend -4 AN for oil supply lines (fits on our GT-R inlet adapters and on the integrated EFR reducer), -10 AN for oil return lines (fits on our threaded return flanges). Fuel and water pipes are best selected according to the specifications of connections or fuel pumps.

The fittings are manufactured using high-precision CNC machines with the highest quality standards. The system has been tried and tested for over 40 years and is proven in aviation and motorsport.

Thread size: -04 AN / Dash 4 / 7/16 - 20"
For pipe dimension: 6,5mm / 1/4"
Material: Aluminum
Color: Black anodized

NOTE: The tube must be provided with a 37° crimp on the end piece!

For problem-free installation in all application areas, we offer a variety of adapters. Thus, a later extension or other extension of the lines is easily possible.
