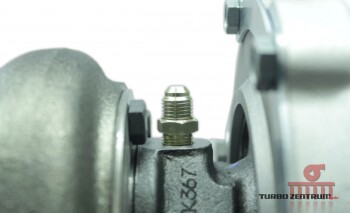

Oil Restrictor for Garrett GT-R Turbocharger

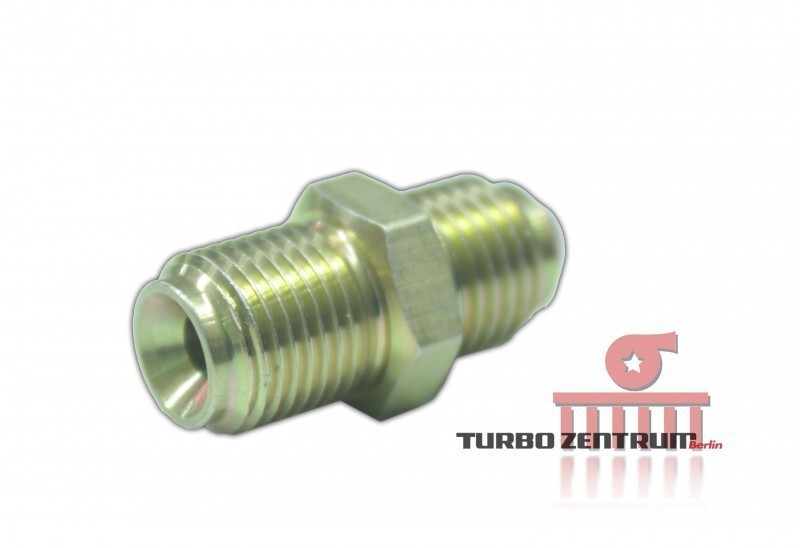

Brass oil Supply Adapter with 0,9mm Restrictor
Necessary with Oil pressures over 3bar
The Oil Restrictor is mandatory for every ball bearing Turbochargers GT25 up to GT35 with Engines with more than 3bar Oil pressure at full throttle. Without the Restrictor a bearing damage will happen soon!
The adapter has at Turbocharger Side a special M11x1 thread and a Dash 4 / 4 AN thread for construction with our self building hydraulic fittings. For pressure relief is a 0,9mm drilling in the Adapter. For safety reasons we recommend our Oil Supply Filter which filtrates smallest particles and prevents an obstruction of the Adapter.
Thread: M11x1 and Dash 4
Drilling: 0,9mm
Wrench width: 13mm
Material: Brass anodized
Fits for:
Garrett GT2554R (471171-5003)
GT2854R (471171-5009)
GT2859R (780371-5001 / 707160-5009)
GT2860R (707160-5007 / 707160-5005 / 739548-5009)
GT2860RS (739548-5001 / 739548-5005)
GT2871R (743347-5001 / 743347-5002 / 743347-5003 / 743347-5004 / 472560-5015 / 771847-5001 / 780371-5002 / 707160-5010)
GT2876R (705330-5001 / 705330-5002)
GTX2860R (816364-1)
GTX2863R (816365-1)
GTX2867R (816366-1)
GT3071R-WG
GT3071R (CHRA 700177-5023)
GT3076R-WG
GT3076R-C10
GT3076R (700382-5012)
GTX3067R (824727-0001)
GTX3071R (803712-1)
GTX3076R (803713-1)
GT3582R (714568-5001 / 714568-5002 / 714568-5003 / 714568-5007 / 714568-5008 / 714568-5009 / 714568-5010 / 714568-5011 / 714568-5012)
GTX3576R (803714-1)
GTX3582R (803715-1)
Note:
For the Supply Line please choose minimum a Dash 4 Line. The Oil Return Line needs to be minimum Dash 10 / minimum inner diameter 16mm!- Model: Screw-in Adapter
- Turbocharger: Garrett GT-R up to GT37
- Item weight: 0,02 kg
