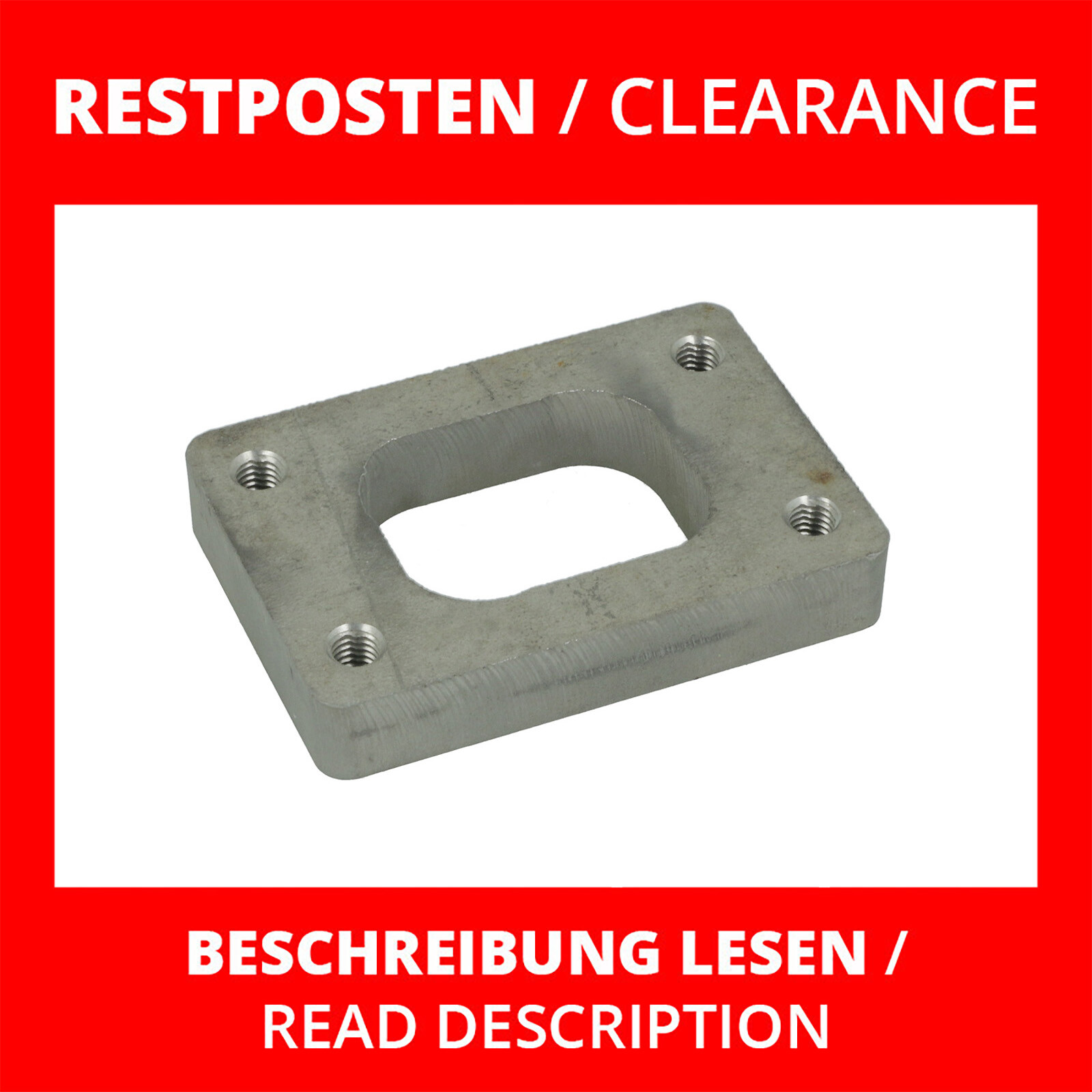

Clearance - Manifold Flange V2A T25
CLEARANCE REASON: Single piece, custom-made with special dimensions and extra thick (15.6 mm)
Important!
Clearance items are excluded from returns under the right of withdrawal! Please consider this when placing your order!
Only while stocks last!
--------------------------------

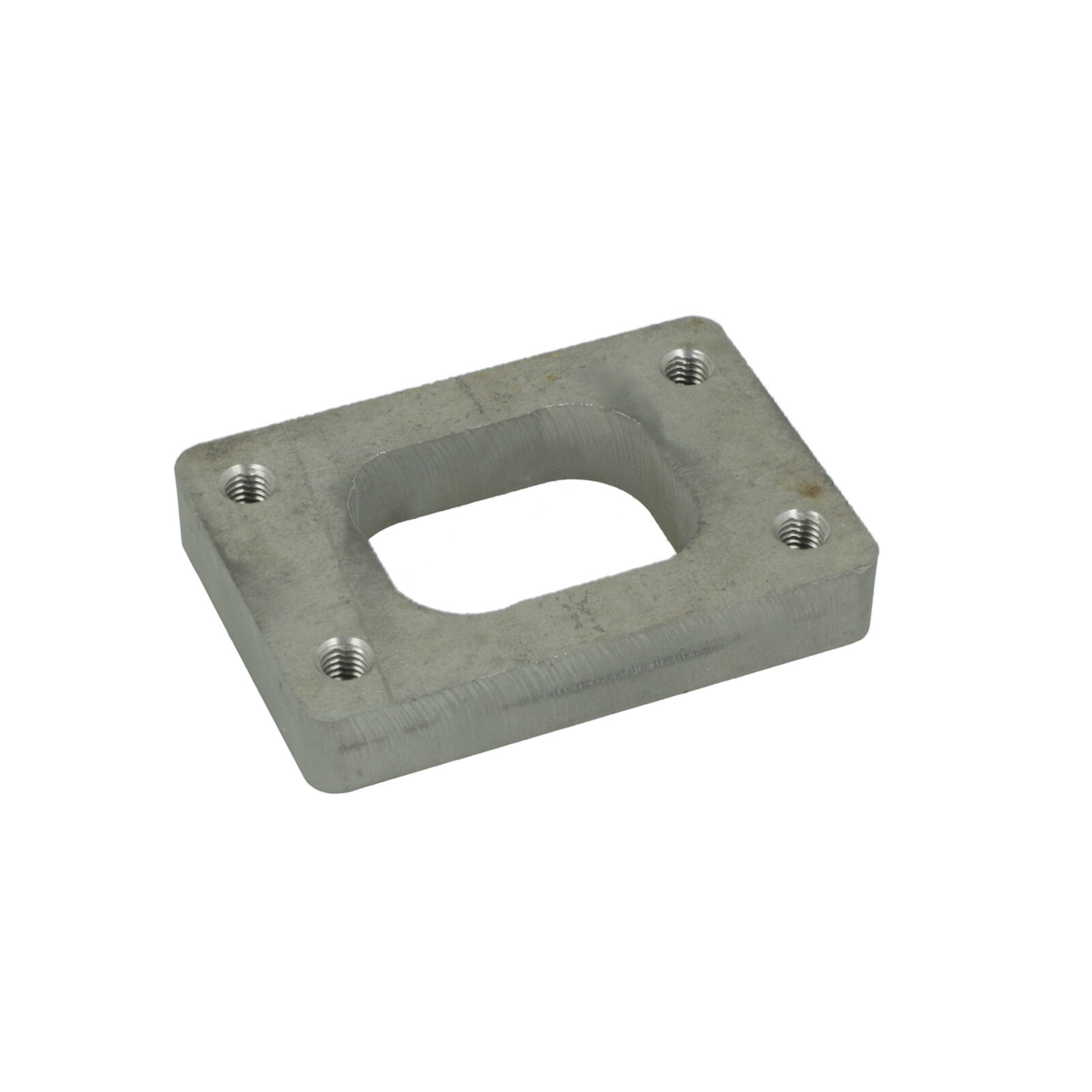

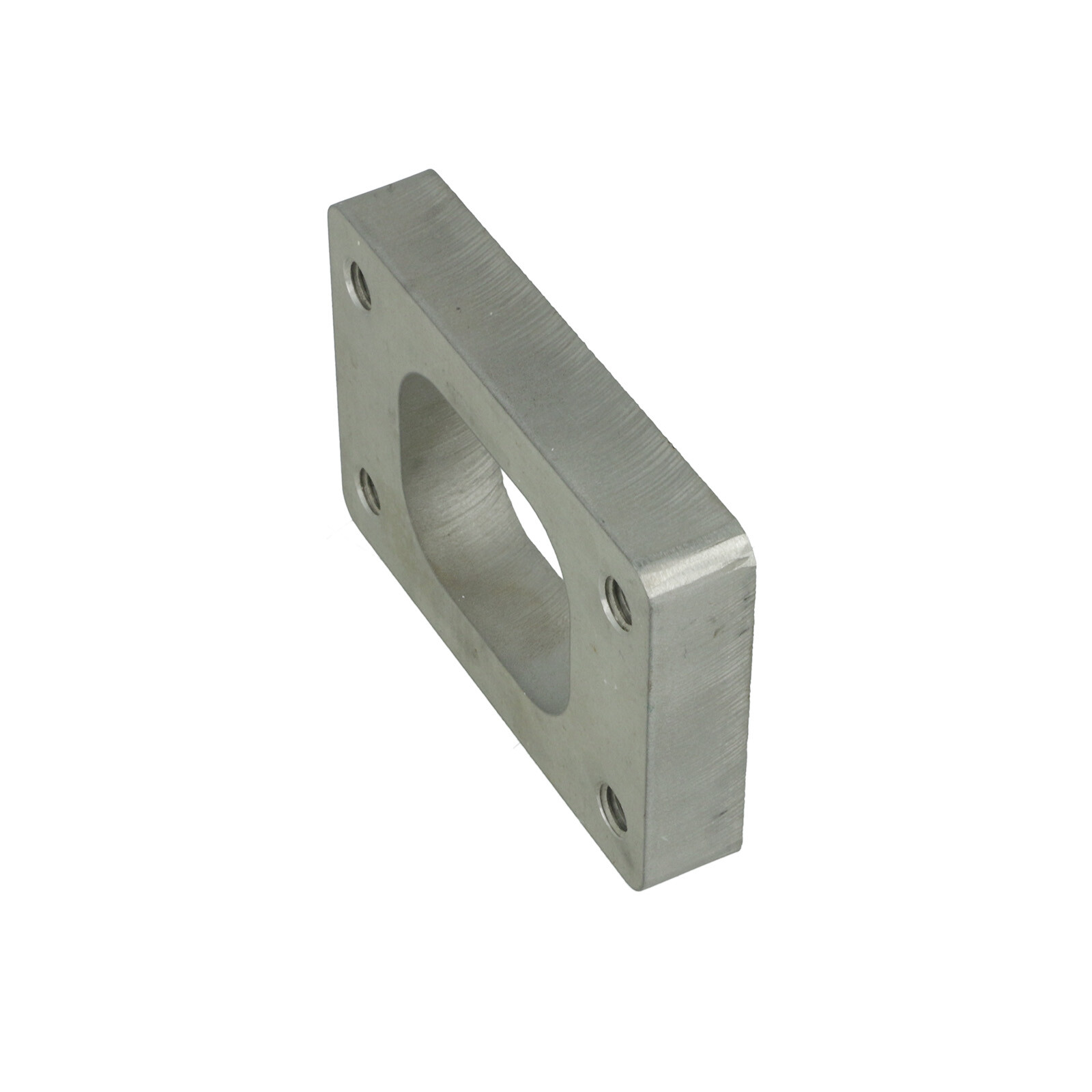

Flange for Manifold Construction
High-quality Turbo Flange made of Stainless Steel with Thread
With our manifold flanges, you receive the flange with which the turbocharger is mounted on the manifold. We also supply pipe bends and collectors for the construction of turbo manifolds. All flanges are water jet cut to prevent distortion during the cutting process. They are 100% flat and high quality. We select the material thickness based on experience for optimal strength.
Material: Stainless Steel
Material Thickness: 15.6mm
Total Dimensions: 91mm x 62mm
Cutout Dimensions: 49mm x 38mm
Hole Spacing: 73mm x 40mm
Thread Size: M8
Extras / Special Features: Thread!! No holes!
If you are unsure whether this flange fits your charger, you can make a sketch of your exhaust side, and we will compare it!
- Availability: available
