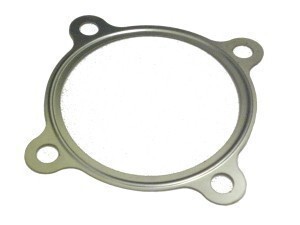

Garrett Downpipe Gasket 4-bolt 76mm
Premium metal turbine to downpipe gasket
Gasket between turbocharger and downpipe
The gasket is made of stainless steel die-cut. The imprinted grooves put the sealing surface exactly where needed. Please keep in mind that each assembly and disassembly requires a new gasket.
Material: stainless steel
Total dimensions: 117mm (outside diagonally), 91mm (outside without connections)
Dimensions cut-out: 76mm
Hole distance: 99mm (diagonal)
For / Fits:
Turbooutlet 4-bolt 76mm
Garrett GT3071R
Garrett GT3076R (GT30R oder GT30RS)
Garrett GT3082R (GT30/40R)
Garrett GT3582R (GT35/40R oder GT35R)
When unsure whether the gasket fits to your turbocharger, you can send us a sketch of your turbine housing flange for comparison!
- Usage: Turbocharger to Downpipe
- Model: Single gasket
- Flange type: 4-Bolt 76mm
- Item weight: 0,01 kg
