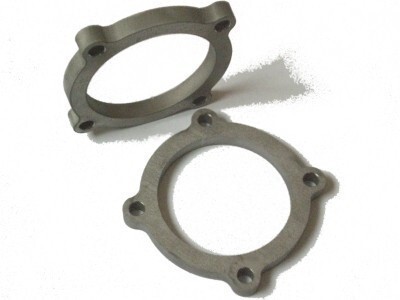

Downpipe Flange V2A 4-bolt 76mm
Flange for fabrication of the downpipe
Premium stainless steel downpipe flange
This flange is used to fit the downpipe to the turbocharger, at the turbine outlet. All flanges are perfectly even and fit 100%. They are cut by water-jet or CNC milled to prevent warping.
Material: stainless steel
Material thickness: 10mm
Total dimensions: 117mm (outside diagonally), 91mm (outside without connections)
Dimensions cut-out: 76mm
Hole distance: 99mm (diagonal)
Thread: for M8
Extras / Features: no threads! Holes 9mm!
For / Fits:
Turbooutlet 4-bolt / 76mm
Garrett GT3071R
Garrett GT3076R (GT30R oder GT30RS)
Garrett GT3082R (GT30/40R)
Garrett GT3582R (GT35/40R oder GT35R)
KKK BorgWarner some K27 models
some KKK turbocharger from K27
If you are unsure whether the flange adapts to your turbocharger, get the dimensions here. If in doubt, you can make us a sketch of your exhaust side, we compare this for you then!
- Usage: Turbocharger to Downpipe
- Model: single flange
- Flange type: 4-Bolt 76mm
- Material: Stainless Steel
- Item weight: 0,10 kg
